Mini HD SDI Fiber Extender Converter with SFP Transceiver Tally RS485

Name: Mini HD SDI Fiber Extender Converter with SFP Transceiver Tally RS485
Brand: E-link China Technology Co.,LTD
SKU: LNK-MHD-1V Series
Price: 197.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001

Model Number: LNK-MHD-1V Series

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: $25-369

Packaging Details: Fiber Media Converter Standard Package

Delivery Time: 5-10 working days

Payment Terms: T/T, Western Union, MoneyGram,PayPal

Supply Ability: 10000pcs/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      SDI Fiber Converter, HD SDI Fiber Converter, 12g sdi over fiber


Fiber Port:	Simplex LC	Distance:	550m-20Km
Wavelength:	1310nm/1550nm	Power Input:	DC 5~25V
Power:	<5W	Size:	80 X 40 X 20 Mm

Fiber Port:	Simplex LC
Distance:	550m-20Km
Wavelength:	1310nm/1550nm
Power Input:	DC 5~25V
Power:	<5W
Size:	80 X 40 X 20 Mm

Description

Mini HD SDI Fiber Extender Converter with SFP Transceiver Tally RS485

Mini Size HD SDI Fiber Converter with SFP Transceiver Tally or Reverse RS485

SDI Fiber Converter Advantages

Each channel includes 8-channel audio embedded;
Automatic cable equalization, used for all rate below 1.5 Gb/s (Belden 1694A);
Automatic reclocking 270Mbit/s - 1.48Gbit/s
Directly compatible with HD-SDI camera systems
Long transmission capability up to 80 km

Overview

LNK-MHD-1V Series Mini-type HD-SDI Fiber Converter supports 1-channel HD-SDI Video (audio embedded) & Tally or

Reverse RS485 signal transmitted via fiber optical cable, and monitor the signal locally over a HD-SDI loop output.

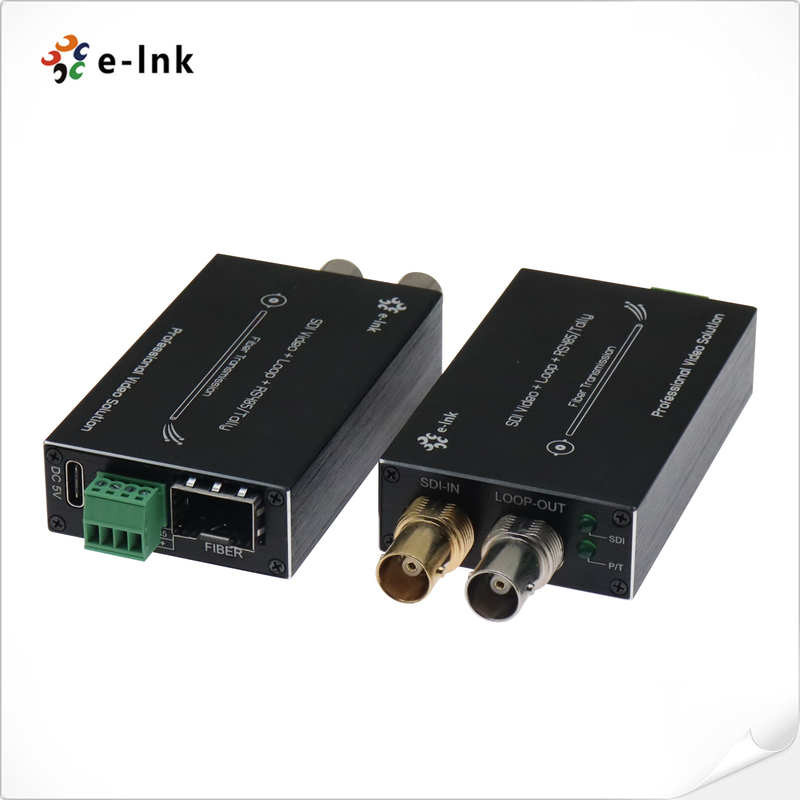

Mini HD SDI Fiber Extender Converter with SFP Transceiver Tally RS485 0

Specifications

Fiber Optical interface
Fiber interface	Simplex LC
Transmission distance	550m-20Km
Wavelength	1310nm/1550nm
Video
Video interface	BNC
Video input/output impedance	75Ω
Video input/output voltage	Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
Video Bits Rate	Max 1.48Gb/s
Differential gain (10%～90% APL)	<1%
SDI format support	625/25 PAL
	525/29.97 NTSC, 525/23.98 NTSC
	720p50, 720p59.94
	1080i 23/24/30/50/59.94
Video SDI standard	270Mbps (SD-SDI)
Video SDI standard	1.485Gbps (HD-SDI)
Data
Physical interface	Industrial standard screw terminal
Data type	Tally or Reverse RS485
Frequency/Rate support	Max. 115200bps for RS422 Max. 57600bps for RS485
BER	<10ˉ⁹
Electrical
Power adaptor	DC 5~25V
Power consumption	<5W
LED Indicator
SDI	SDI video
P/T	Power Supply
Mechanical
Dimensions (LxWxH)	80 x 40 x 20 mm
Weight	1KG/pair
Casing	Aluminum Case
Mounting Options	Desktop
Environmental
Working Temperature	-20℃～+70℃
Storage Temperature	-40℃～+80℃
Working Humidity	0~95%
MTBF	≥100000 hours
