Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK- IPDU
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: negotiation
Packaging Details: PDU Power Distrbution Unit Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Keyword: |
PDU Power Distribution Unit |
Operating Elevation: |
0-4000m |
Accessories: |
Smart Meter |
Input Cable: |
1.8m |
Unit Weight: |
1.05kg / 2.31 Lbs |
PDU Type: |
Customizable |
Keyword: |
PDU Power Distribution Unit |
Operating Elevation: |
0-4000m |
Accessories: |
Smart Meter |
Input Cable: |
1.8m |
Unit Weight: |
1.05kg / 2.31 Lbs |
PDU Type: |
Customizable |

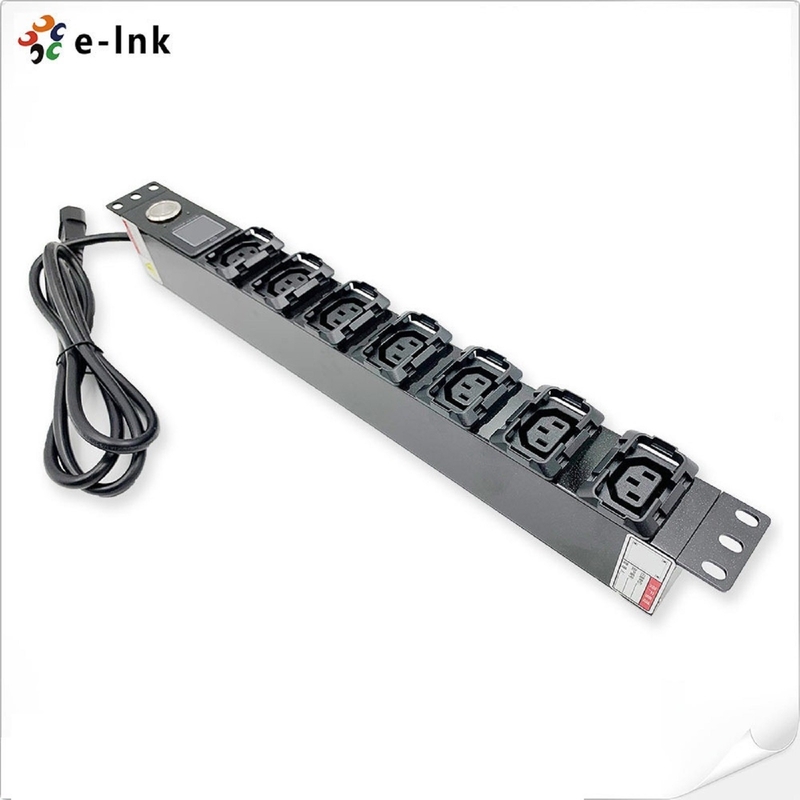

PDU Power Distribution Unit 1U 8 Port 16A / 2800W Output Metered PDU
Power Distrbution Unit Advantages
► 85–265V AC input, 8 total outlets
► Different plug types available
► Build-in Power meter with OLED display
► Gen 3 10KA Surge Protection module
► Complies with the requirements of IEC60297 standards
► EMI.RFI Protection
Technical Indexes
|
OUTPUT |
|
|
Voltage Measurement |
Range: 0~300V |
|
Display Digits: 0.01V |
|
|
Current Measurement |
Input: Transformer |
|
Range: 0~30mA |
|
|
Display Digits: 0.01A |
|
|
Power Measurement |
Accuracy: Grade 1 |
|
Display Digits: 0.01kW |
|
|
Electricity Measurement |
Accuracy: Grade 1 |
|
Display Digits: 0.01kW |
|
|
Display |
OLED Screen, Blue text on black / White text on black |
|
INPUT |
|
|
PDU Input Voltage |
85-265V AC |
|
Maximum Input Amps |
10/16A |
|
PDU Plug Type |
US, EU, UK, IEC 3 Pin available |
|
Phase line |
Single Phase |
|
PHYSICAL |
|
|
Form Factors Supported |
1U rackmount, 0U vertical rackmount, wall-mount, and under-counter installation |
|
Material of Construction |
Aluminum T6 Hardened Profile with Four-layer Piano Paint |
|
Minimum Required Rack Depth |
59mm / 2.3in |
|
Photosensitive Detection |
Normally used for automatic lighting with extended functions |
Overview
E-link's Electric Basic Rack Power Distribution Unit (PDU) distributes power to devices in the 19’’ rack. The PDU with 8 outlets and build-in surge protector. Universal 10/16A 100–240V PDU is compatible with wide range of voltages to deliver single-phase AC power to multiple loads from a utility outlet, generator or UPS system. Ideal for data centers, server rooms and network wiring closets.
Ordering Information
|
Model Number |
Installation | specification |
Input Cable |
Input | Output | Output Interface | accessories | Remark | ||
| Control | ||||||||||
| LNK- IPDU_7GB10_ZK_GB | Horizontal | 19’’ | 1U | 1.8m |
85-265V AC |
GB2015, Max=13A, 8CH Control output | GB1002(10A/250V) | Smart Meter | Input Plug Customizable | |
| LNK- IPDU_7IEC13K_ZK_IEC14 |
Horizontal |
19’’ | 1U | 1.8m |
85-265V AC |
IEC320-C1 (Cable anti falling), Max=13A, 7CH Control output | IEC60320 C13 | Smart Meter | Input Plug Customizable | |
| LNK- IPDU_7WY10_ZK_GB |
Horizontal |
19’’ | 1U | 1.8m |
85-265V AC |
Universal plug Max=16A, 7CH Control output | GB 2099.3(16A/250V) | Smart Meter | Input Plug Customizable | |
| LNK- IPDU_8UL_ ZK_UL |
Horizontal |
19’’ | 1U | 1.8m |
85-265V AC |
Universal plug Max=16A, 8CH Control output | NEMA5-15R(16A/250V) | Smart Meter | Input Plug Customizable | |
| Note: More Input and output interface type available, please contact us for more details. | ||||||||||
