Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK- IPDU
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: negotiation
Packaging Details: PDU Power Distrbution Unit Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Keyword: |
Remote Power Distribution Unit |
Power Limit: |
Above 2000 Meters |
Length: |
482.6mm |
Height: |
44.2mm |
Width: |
163mm |
Working Environment: |
Indoor |
Keyword: |
Remote Power Distribution Unit |
Power Limit: |
Above 2000 Meters |
Length: |
482.6mm |
Height: |
44.2mm |
Width: |
163mm |
Working Environment: |
Indoor |

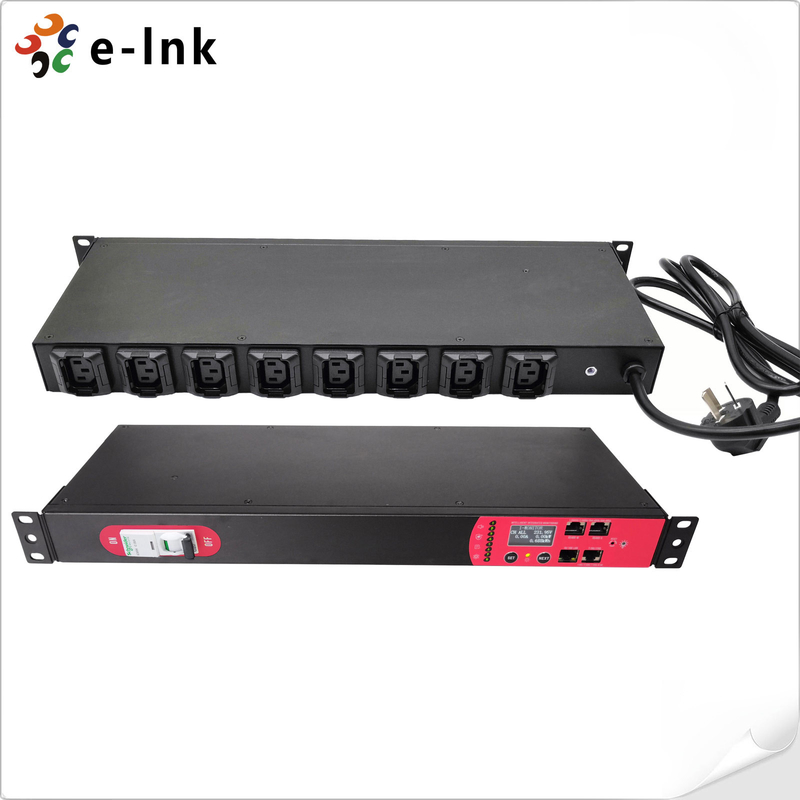

PDU Power Distribution Unit Intelligent Smart Precision Power Distribution Unit
Smart Power Distrbution Unit Advantages
► Use imported 32-bit ARM microprocessor (CPU) control and software programming technology
for advanced embedded operating system;
►Use 85 ~ 265Vac global applicable working power technology, achieved level 5 energy efficiency managemen
► Built-in clock system and backup power supply
► isolated RS485 communication port. It adopts standard MODBUS-RTU
Technical Indexes
|
Item |
Parameter Requirements |
Remark |
|
Working Power |
85V~265VAC |
|
|
Working Frequency |
50Hz |
|
|
Total Input |
Specification please see the product label |
According to Order Requirement |
|
Master Switch |
Please see the product label |
According to Order Requirement |
|
Voltage Measurement |
Range:0~300V |
Isolated |
|
Display Digits:0.01V |
||
|
Current Measurement |
Input: Transformer |
Isolated |
|
Range:0~30mA |
Transformer output secondary current |
|
|
Display Digits:0.01A |
Primary Current |
|
|
Branch off |
16A/250Vac Max. |
|
|
Power on Sequence |
Supports power-on sequence output from 1 to 8 branches |
|
|
Communication Port |
RS485 port, Modbus RTU Communication Protocol |
Optional: uplink / downlink |
|
Photosensitive Detection |
Normally used for automatic lighting with extended functions |
Optional, but with an interface expansion module |
Overview
E-link's IMPU series Metered Switched PDU with automatic transfer switching is the perfect solution for critical network installations that require remote power control and power supply redundancy on 85-265 AC equipment. E-link 's IMPU series metered PDUs help you keep track of conditions at your data center, and can automatically notify you before things get out of hand. The PDU also allows you to automatically reboot outlets when attached devices cease to respond, disable outlets to reduce current consumption or switch on cooling devices to lower rack temperatures.
Ordering Information
|
Model Number |
Installation |
Length |
Profile specification |
Input Connction |
Input control |
Output control |
Output Interface |
|
LNK- IMPU_8GB10_ZK_GB |
Horizontal |
19Inch |
1U |
Power Cable 1.8m |
Micro Circuit Breaker 1P,16A |
GB2015,Max=13A,8CH Control output |
GB1002(10A/250V) |
|
LNK- IPMU_8IEC13K_ZK_IEC14 |
Horizontal |
19Inch |
1U |
Power Cable 1.8m |
Micro Circuit Breaker 1P,16A |
IEC320-C13(Cable anti falling),Max=13A,8CH Control output |
IEC60320 C13 |
|
LNK-IPMU_8UL_ ZK_UL |
Horizontal |
19Inch |
1U |
Power Cable 1.8m |
Micro Circuit Breaker 1P,16A |
NEMA5-15R Max=16A,8CH Control output |
(16A/250V) |
|
Note: More Input and output interface type available, please contact us for more details. |
|||||||
