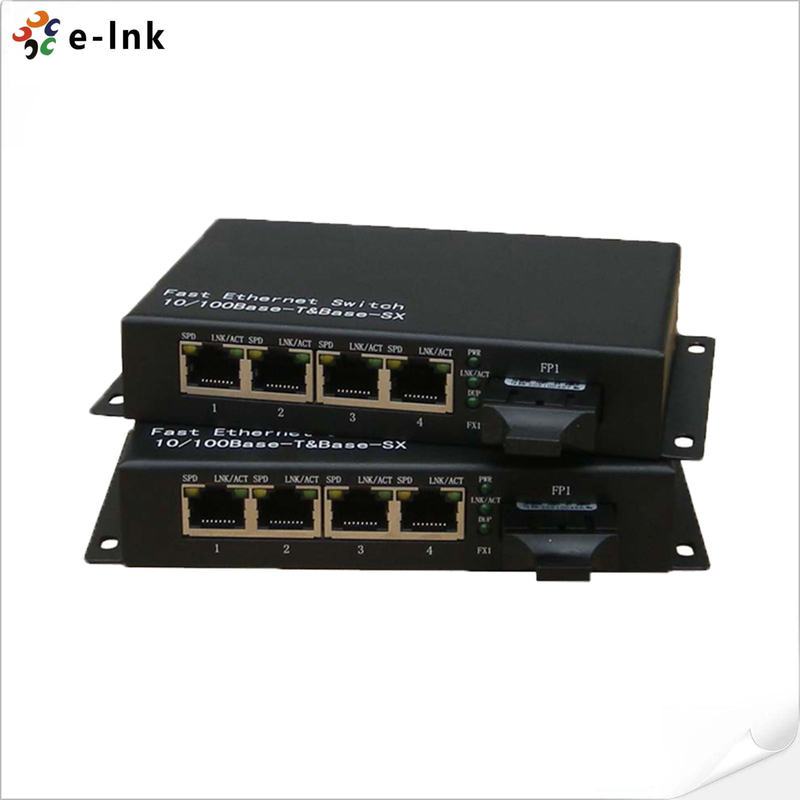

10/100Mbps 4 Port Ethernet Switch Fiber To Rj45 Converter

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001 / CE / RoHS / FCC

Model Number: LNK-1400 series

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: USD40/PCS

Packaging Details: Ethernet Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal

Supply Ability: 1000000PCS/Month

Get Best Price
Contact Now
Specifications
Highlight:

100Mbps Ethernet Switch

,

10Mbps Ethernet Switch

,

4 Port Fiber To Rj45 Converter

Access Mode:
10/100/1000Mbps
Transmission Distance:
120 Km
Port:
4*RJ45 Ports
Optical Port:
1
Maintaining Temperature:
-40~70ºC
Wavelength:
850nm/1310nm/1550nm
Access Mode:
10/100/1000Mbps
Transmission Distance:
120 Km
Port:
4*RJ45 Ports
Optical Port:
1
Maintaining Temperature:
-40~70ºC
Wavelength:
850nm/1310nm/1550nm
Description
10/100Mbps 4 Port Ethernet Switch Fiber To Rj45 Converter

Ethernet Switch 10/100M Media Converter 4-TX + 1-FX(SC) Port Fiber Switch

Ethernet Switch Advantages:

► Switch Ethernet signals among 10/100/1000M UTP ports (T) and 1000M Optical Fibe

r Interfaces (X)

► Auto negotiation function, supports UTP ports 10/100/1000M and Full Duplex/Half Duplex

auto-negotiation

► 1000M Fiber port supports 1000M and Full Duplex mode.

► Supports flow control and broadcast storm protection.

► Supports VLAN and QoS.

► Supports max 10K bytes frame.

► Low power consume (4W), low heat, and good reliability.

Overview

LNK-1400G Series 4 port Gigabit Ethernet Switch with 4 10/100/1000M UTP ports and 1 1000M SC

sockets, which converting the 4 independent 1000Base-TX twisted pair electrical signal with 1000Base-FX

optical signal. It extends the network transmission range from 100m over copper wires to 120Km

(single-mode full-duplex mode). The product is possessed of stable performance, excellent quality and

reasonable price because of adopting latest IC from USA and high quality of transceivers. It is applicable

to use in small patterns of Optical Fiber Ethernet.

Technical Indexes


Parameter Specifications
Access mode 10/100/1000Mbps
Standard IEEE 802.3/ 802.3u Ethernet, IEEE802.3ab 1000BaseT, IEEE802.3z 1000BaseX, IEEE 802.1d Spanning Tree, IEEE 802.1q VLAN TAG, IEEE 802.1p Qos ,10/100/1000Base-T and 1000Base-FX
Wavelength 850nm/1310nm/1550nm
Transmission distance

Fiber Optic:

Multimode Fiber: 50/125, 62.5/125μm (2km)

Single mode Fiber: 8/125,8.7/125,9/125μm(the max distance up to 10~120 km)

Category-5 twisted pairs: 100m

pott

4*RJ45 ports: Connecting with STP/UTP category-5 twisted pairs

1*SC socket

Conversion means Media conversion, store-and-forward
Flow control Full duplex: flow control; half duplex: back pressure
Error rate <10-9
MTBF 100,000 hours
MAC address table 1K
Power supply DC5V 2A (external)
Power consumption <5W
Operating temperature -10~55ºC
Operating humidity 5%~90%
Maintaining temperature -40~70ºC
Maintaining humidity 5% ~ 90% non-condensing

Ordering Information

Item Description
LNK-1400G 10/100/1000Base-T to 1000Base-F, 1 Fx Port + 4 RJ-45 Ports, Multi-mode, 550m, 1310nm, SC, standalone, external power adaptor
LNK-1400GS-20 10/100/1000Base-T to 1000Base-F, 1 Fx Port + 4 RJ-45 Ports, Single Mode, 20km, 1310nm, SC, standalone, external power adaptor
LNK-S1400G-20 10/100/1000Base-T to 1000Base-F, 1 Fx Port + 4 RJ-45 Ports, WDM(single fiber bi-direction), 20km, 1310/1550nm, SC, standalone, external power adaptor
