Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE
Model Number: LNK-2200G-SFP
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: USD70/PCS
Packaging Details: Ethernet Switch Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000000PCS/Month
Access Mode: |
10/100/1000Mbps |
Wavelength: |
850nm/1310nm/1550nm |
Transmission Distance: |
20/40/60/80/120 Km |
RG45 Ports: |
2 |
Fiber Port: |
2 |
Power Supply: |
DC5V 2A (external) |
Access Mode: |
10/100/1000Mbps |
Wavelength: |
850nm/1310nm/1550nm |
Transmission Distance: |
20/40/60/80/120 Km |
RG45 Ports: |
2 |
Fiber Port: |
2 |
Power Supply: |
DC5V 2A (external) |

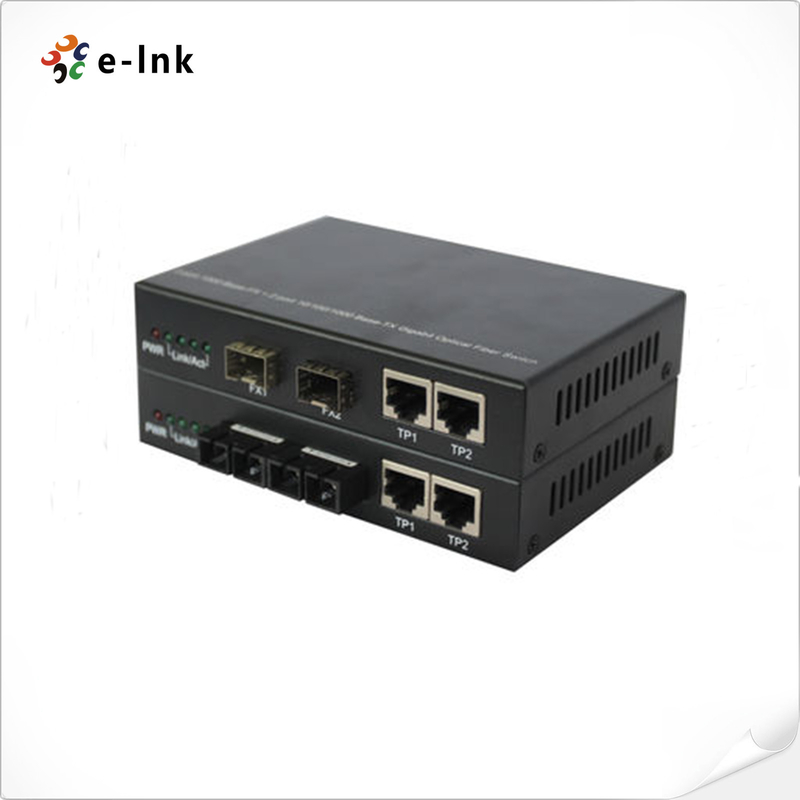

Ethernet Switch 10/100/1000M Media Converter 2-TX + 2-FX(SFP) Port Fiber Switch
Ethernet Switch Advantages:
Two RJ45 ports and two SFP sockets ,It can convert Optical－Electric Ethernet signals between
10/100/1000M UTP ports and 1000M optical fiber ports and switch Ethernet signals between port and port.
Auto negotiation function supports UTP ports to auto 10/100/1000M and Full Duplex/Half Duplex.
Broadcast storm protection
Supports VLAN and QoS
Supports the max 9K bytes frame
Small power consumption (3W), low heat, good stability
Technical Indexes
| Parameter | Specifications |
| Access mode | 10/100/1000Mbps |
| Standard | IEEE802.3z/AB, 10/100/1000Base-T and 1000Base-SX/LX |
| Wavelength | 850nm/1310nm/1550nm |
| Transmission distance |
Fiber Optic: depends on SFP Module Category-5 twisted pairs: 100m |
| Port | 2*RJ45 ports: Connecting with STP/UTP category-5 twisted pairs 2*SFP socket |
| Conversion means | Media conversion, store-and-forward |
| Flow control | Full duplex: flow control; half duplex: back pressure |
| Error rate | <10-9 |
| MAC address table | 1K |
| Frame buffer memory | 512Kb RAM |
| Power supply | DC5V 2A (external) |
| Power consumption | 3.5W |
| Operating temperature | -10~55ºC |
| Operating humidity | 5%~90% |
| Maintaining temperature | -40~70ºC |
| Maintaining humidity | 5% ~ 90% non-condensing |
LNK-2200G-SFP Gigabit Ethernet Switch with 2 10/100/1000M UTP ports and 2 1000M SFP sockets. The end users can use
different SFP module according to his requirement, for example: 1000Base-T, 1000Base-SX, 1000Base-LX etc. The product
is possessed of stable performance, excellent quality and reasonable price because of adopting latest IC from USA and high
quality of transceivers. It is applicable to use in small patterns of Optical Fiber Ethernet.
Ordering Information
| Item | Description |
| LNK-2200G-SFP | 10/100/1000Base-Tx to 1000Base-Fx, 2G + 2SFP, SFP Slot, without SFP Modules, standalone, external power adaptor |
