Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE
Model Number: LNK-G1200N
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: USD45/PCS
Packaging Details: Ethernet Switch Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000000PCS/Month
Access Mode: |
10/100/1000Mbps |
Wavelength: |
850nm/1310nm/1550nm |
Transmission Distance: |
0-120 Km |
RG45 Ports: |
2 |
Fiber Port: |
1 |
Power Supply: |
5W (AC90~264V/DC100~380V) |
Access Mode: |
10/100/1000Mbps |
Wavelength: |
850nm/1310nm/1550nm |
Transmission Distance: |
0-120 Km |
RG45 Ports: |
2 |
Fiber Port: |
1 |
Power Supply: |
5W (AC90~264V/DC100~380V) |

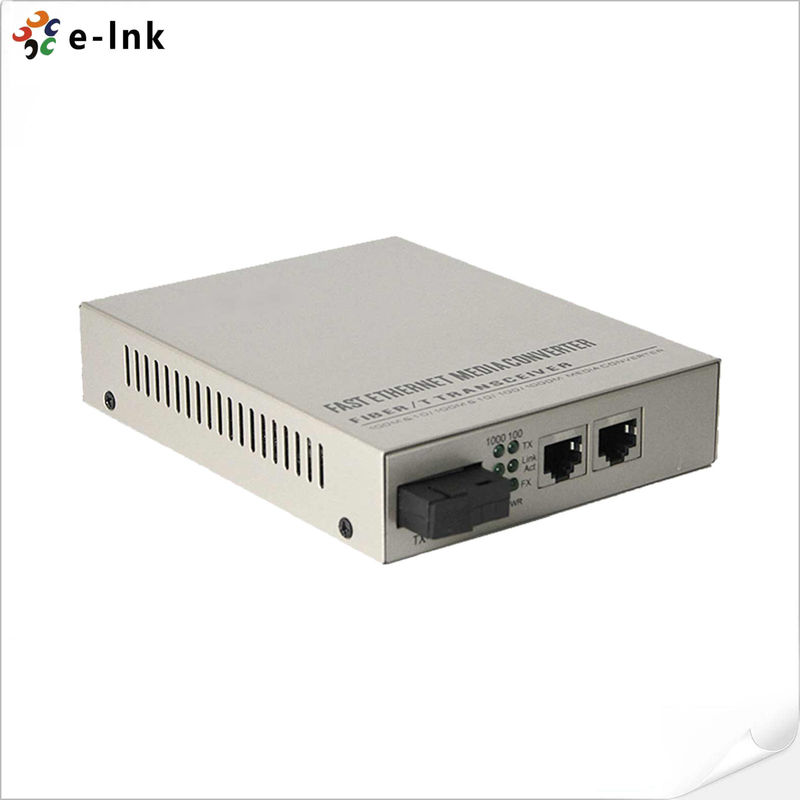

Ethernet Switch 1 Fiber port + 2 RJ45 ports Gigabit Ethernet Media Converter
Ethernet Switch Advantages:
Auto negotiation function allows UTP port to auto select 10/100/1000M, and Full Duplex or Half Duplex.
Support Flow control and Broadcast storm protection
Supporting the max 1536 bytes frame
Internal Circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.
Supporting Link Failure Alert (LFA) optional
Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber
Technical Indexes
| Parameter | Specifications |
| Access mode | 10/100/1000Mbps Gigabit Ethernet |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet |
| Wavelength | 850nm/1310nm/1550nm |
| Transmission distance |
multi-mode Dual-fiber: 220m (62.5/125μm)/550m (50/125μm) single mode Dual-fiber: 20/40/60/80 Km single mode Single fiber: 20/40/60/80 Km Category-5 twisted pairs: 100m |
| Port |
Two RJ45 port: for connecting STP/UTP category-5 twisted pairs One optical port: Multi-mode, dual fiber: SC or ST (50, 62.5/125μm) Single mode, dual fiber: SC or ST (9/125μm) Single mode Single fiber: SC or ST (9/125μm) |
| Conversion means | Media conversion |
| BER | <10-9 |
| MTBF | 100,000 hours |
| LED indicator | POWER (power supply), FX LINK (optical link action), TP LINK1000 (TP cable rate1000M), TP LINK100 (TP cable rate 100M), TP ACT (TP cable packet forwarding action) |
| Power supply | Internal: AC90~264V/DC100~380V input |
| Power consumption | 5W |
| Operating temperature | -10~55ºC |
| Operating humidity | 5%~90% |
| Maintaining temperature | -40~70ºC |
| Maintaining humidity | 5% ~ 90% non-condensing |
Overview
LNK-G1200N Series is a 10/100/1000M Gigabit Ethernet 1 FX port & 2 RJ45 port Standalone Fiber Media Converter (Fiber Switch).
LNK-G1200N Series provides one 1000M optical fiber port and two 10/100/1000M UTP ports. With one fiber and two UTP ports,
LNK-G1200N can convert Optical－Electric Ethernet signals between 10/100/1000M UTP interface (TX) and 1000M optical fiber interface (FX).
Ordering Information
| Item | Description |
| LNK-G1200N | 10/100/1000Base-Tx to 1000Base-Fx, 1 Fiber port + 2 RJ45 ports, mutli-mode, 550m, 850nm, SC, standalone, Built-in Power Supply |
| LNK-G1200N-20 | 10/100/1000Base-Tx to 1000Base-Fx, 1 Fiber port + 2 RJ45 ports, single mode, 20km, 1310nm, SC, standalone, Built-in Power Supply |
| LNK-GS1200N-20 | 10/100/1000Base-Tx to 1000Base-Fx, 1 Fiber port + 2 RJ45 ports, WDM(single fiber bi-direction), 20km, 1310/1550nm, standalone, Built-in Power Supply |
| LNK-G1200N-40 | 10/100/1000Base-Tx to 1000Base-Fx, 1 Fiber port + 2 RJ45 ports, single mode, 40km, 1310nm, SC, standalone, Built-in Power Supply |
| LNK-G1200N-60 | 10/100/1000Base-Tx to 1000Base-Fx, 1 Fiber port + 2 RJ45 ports, single mode, 40km, 1550nm, SC, standalone, Built-in Power Supply |
