Unmanaged Fiber Ethernet Switch 10/100/1000M Media Converter 8-TX

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE

Model Number: LNK-2800G

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: USD115/PCS

Packaging Details: Ethernet Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal

Supply Ability: 1000000PCS/Month

Get Best Price
Contact Now
Specifications
Highlight:

Unmanaged Ethernet Switch

,

100M Ethernet Switch

,

8TX unmanaged fiber switch

Access:
100/1000Mbps
Wavelength:
1310nm/1550nm
Distance:
60/80/120 Km
RG45 Ports:
8
Fiber Port:
2
Time:
1 Years
Access:
100/1000Mbps
Wavelength:
1310nm/1550nm
Distance:
60/80/120 Km
RG45 Ports:
8
Fiber Port:
2
Time:
1 Years
Description
Unmanaged Fiber Ethernet Switch 10/100/1000M Media Converter 8-TX

Ethernet Switch 10/100/1000M Media Converter 8-TX + 2-FX(SC) Port Fiber Switch

Ethernet Switch Advantages:

Switch Ethernet signals among 10/100/1000M UTP ports (T) and 1000M Optical Fiber Interfaces (X)

Auto negotiation function, supports UTP ports 10/100/1000M and Full Duplex/Half Duplex auto-negotiation

1000M Fiber port supports 1000M and Full Duplex mode.

Supports flow control and broadcast storm protection.

Supports VLAN and QoS.

Supports max 10K bytes frame.

Low power consume (4W), low heat, and good reliability.

Technical Indexes

Parameter Specifications
Access mode 10/100/1000Mbps
Standard IEEE802.3z/AB,10/100/1000Base-T and 1000Base-SX/LX
Wavelength 850nm/1310nm/1550nm
Transmission distance

Fiber Optic:

Multimode Fiber:50/125,62.5/125μm

Singlemode Fiber:8/125,8.7/125,9/125μm(the max distance up to 10~100 km)

Category-5 twisted pairs: 100m

Port

8*RJ45 ports: Connecting with STP/UTP category-5 twisted pairs

2*SC or SFP Port

Conversion means Media conversion, store-and-forward
Error rate <10-9
MTBF 100,000 hours
Power supply DC5V 2A (external)
Power consumption 4W
Operating temperature -10~55ºC
Operating humidity 5%~90%
Maintaining temperature -40~70ºC
Maintaining humidity 5% ~ 90% non-condensing













































Overview

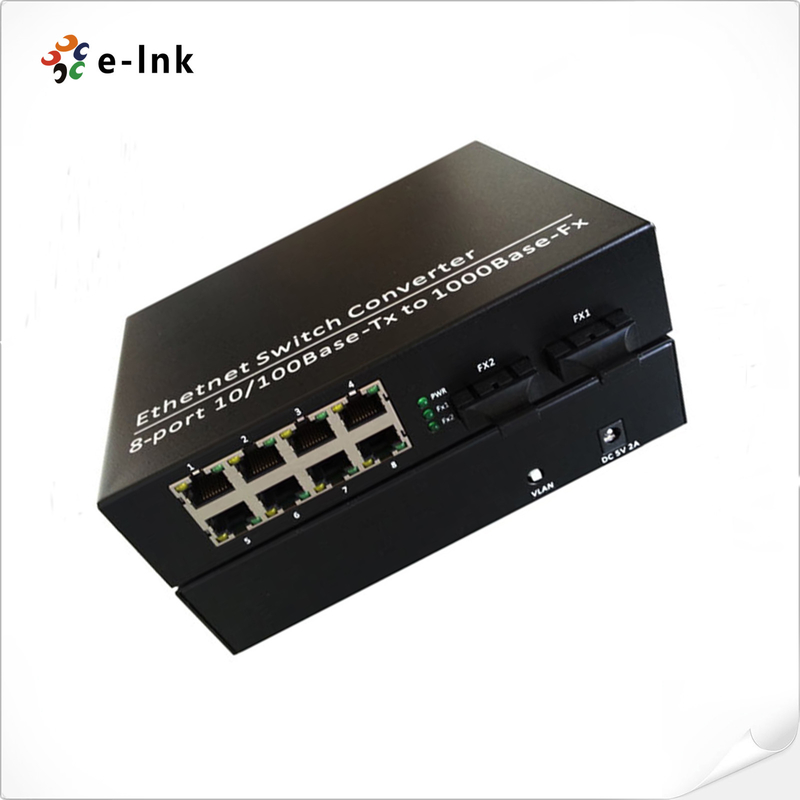

LNK-2800G is 8 port Gigabit Ethernet Switch with eight 10/100/1000M UTP ports and two 1000M Fiber Ports, which converting

the 2 independent 1000Base-TX twisted pair electrical signal with 1000Base-FX optical signal. It extends the network transmission

range from 100m over copper wires to 120Km (single-mode full-duplex mode).

Unmanaged Fiber Ethernet Switch 10/100/1000M Media Converter 8-TX 0

Ordering Information

Item Description
LNK-2800SFP 10/100/1000Base-T to 1000Base-F, 2*SFP + 8*RJ-45 Ports, SFP Slot, not including SFP modules, standalone, external power adaptor
LNK-2800G 10/100/1000Base-T to 1000Base-F, 2*SC Fiber Port + 8*RJ-45 Ports, Multi-mode, 550m, 1310nm, SC, standalone, external power adaptor
LNK-2800GS-20 10/100/1000Base-T to 1000Base-F, 2*SC Fiber Port + 8*RJ-45 Ports, Single Mode, 20km, 1310nm, SC, standalone, external power adaptor
