8 Channel 1080P 3G-SDI Video over Fiber Converter 1U Size

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001

Model Number: LNK-3GSDI-8V Series

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negotiation

Packaging Details: Fiber Media Converter Standard Package

Delivery Time: 5-10 working days

Payment Terms: T/T, Western Union, MoneyGram,PayPal

Supply Ability: 10000pcs/Month

Get Best Price
Contact Now
Specifications
Highlight:

3G SDI Video over Fiber Converter

,

1080P hd sdi to ethernet converter

,

8 Ch fiber to sdi converter 1U

Fiber Port:
Simplex LC
Distance:
550m-20Km
Fiber Wavelength:
1310nm/1550nm
Power Input:
AC 110~220V
Weight:
7KG/pair
Size:
19inch 1U (483 X 220 X 44.45mm )
Fiber Port:
Simplex LC
Distance:
550m-20Km
Fiber Wavelength:
1310nm/1550nm
Power Input:
AC 110~220V
Weight:
7KG/pair
Size:
19inch 1U (483 X 220 X 44.45mm )
Description
8 Channel 1080P 3G-SDI Video over Fiber Converter 1U Size

8 Channel 1080P 3G-SDI Video over Fiber Converter 1U Size Video Broadcasting

SDI Fiber Converter Advantages

  • 8 channel 3G-SDI video transmission over optic fiber
  • Automatic re-clocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s
  • Directly compatible with 3G-SDI camera systems and support Reverse RS-485 data protocols
  • Long transmission capability at least 10 km (6.2miles) , up to 120 km
  • Terminal block power input for industrial application

Overview

E-link 3G-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P 3G-SDI signal. E-link 3G-SDI Fiber Converters can simultaneously transmit 8-Ch 3G-SDI Video, 1-Ch Reverse RS-485 data, signal through a single optical fiber. The video quality up to broadcast standard, audio quality up to CD level supports Reverse RS-485 data communication format.

Order Information

Model Description
LNK-3GSDI-8V 8-Ch 3G-SDI Video with loop-out, 20km, SM, FC, including 1 transmitter & 1 receiver, used by pairs
LNK-3GSDI-8V1R 8-Ch SDI Video with loop-out + 1-Ch RS485 Reverse Data, 20km, SM, FC, including 1 transmitter & 1 receiver, used by pairs

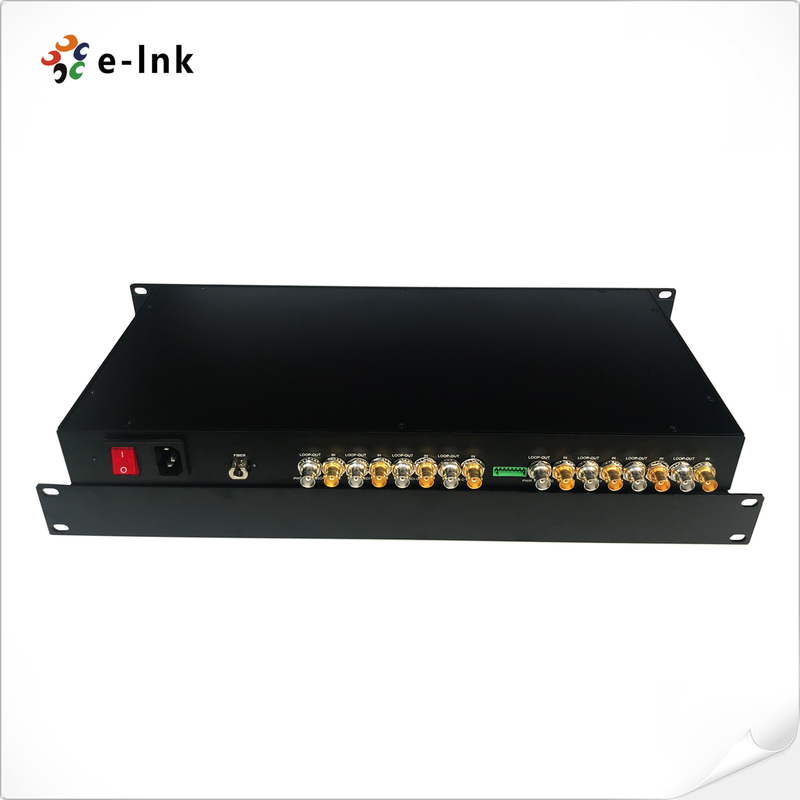

8 Channel 1080P 3G-SDI Video over Fiber Converter 1U Size 0

8 Channel 1080P 3G-SDI Video over Fiber Converter 1U Size 1

Specifications

Fiber Optical interface
Fiber interface Simplex LC
Transmission distance 550m-20Km
Wavelength 1310nm/1550nm
Video
Video interface BNC
Video input/output impedance 75Ω
Video input/output voltage Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
Video Bits Rate Max 3.2Gb/s
Differential gain (10%~90% APL) <1%
SDI format support 625/25 PAL
525/29.97 NTSC, 525/23.98 NTSC
720p50, 720p59.94
1080i 23/24/30/50/59.94
1080P 23.98/24/30/50/60
Video SDI standard 270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI)
SMPTE425M3Gb/s Mapping(3G-SDI)
SMPTE424M 3Gb/s serial interface(3G-SDI)
Data
Physical interface Industrial standard screw terminal
Data type Reverse RS485
Frequency/Rate support Max. 57600bps for RS485
BER <10ˉ9
Electrical
Power adaptor AC 110~220V
Power consumption <15W
LED Indicator
SDI A/B/C/D/E/F/G/H SDI video
PWR Power Supply
Mechanical
Dimensions (LxWxH) 19inch 1U (483 x 220 x 44.45mm )
Weight 7KG/pair
Casing Aluminum Case
Mounting Options Paramount
Environmental
Working Temperature -20℃~+70℃
Storage Temperature -40℃~+80℃
Working Humidity 0~95%
MTBF ≥100000 hours
