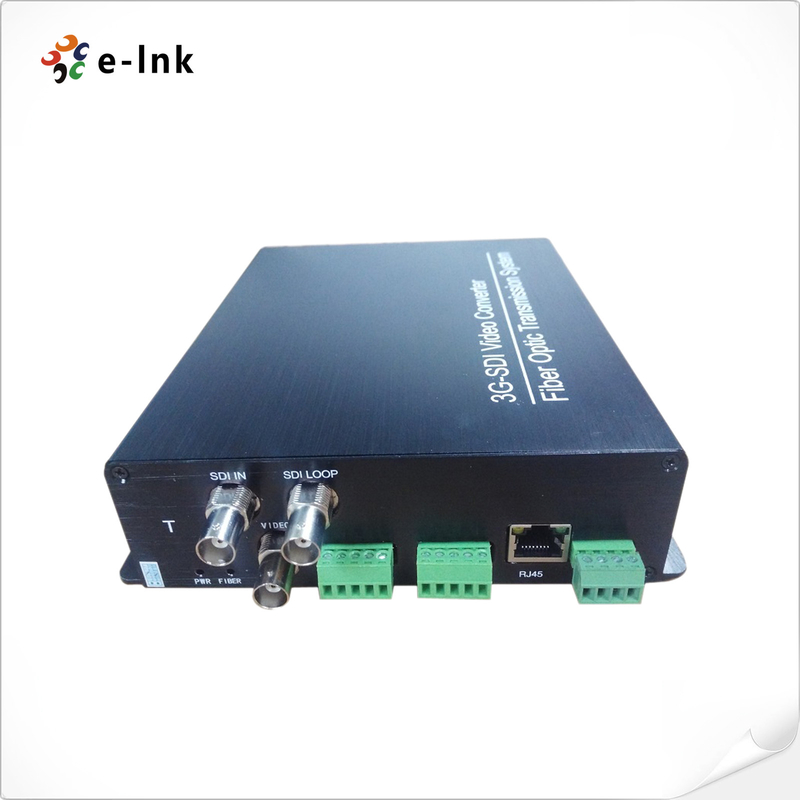

SDI Transceiver 3G/HD/SD-SDI Fiber Multiplexer With 10/100M Ethernet RS422 Tally
Fiber Optical Converter Advantages
► With Remote & Tally & Audio(Intercom) & Return video
► Automatic cable equalization to ensure signal integrity
► 10+Km on single mode fiber or 300m on multi mode fiber
► Terminal block power input, hot swapping and hot plugging
Technical indexes
| Input power | DC5V 3A |
| Wavelength | 1310nm / 1550nm / CWDM |
| Signal format | SMPTE 424M, SMPTE 292M, SMPTE 259M |
| Data rate | 270Mbit/s - 1.48Gbit/s - 3Gbit/s |
| Cable Equalization | Automatic cable EQ (Bel den 1694A cable) |
| 250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s | |
| Intercom Camera Optic Adaptor | |
| Interface | 4pin XLR(Male) /5pin XLR(Female)/ 3.5mm headset jack |
| Microphone | Mic inputs with mute and pre-empt |
| Headphone | with volume up or down |
| Audio | Balance or unbalance line level |
| Tally Camera Optic Adaptor | |
| Interface | 4pin air head or 3pin mini XLR |
| Output | Dry Contact Closure or wet +12V |
| On: short or +12V | |
| Off: open or 0V | |
| Ethernet | |
| Port | 10/100 Base-T, RJ-45 connector |
| Work mode | Full duplex/half duplex |
Overview
The LNK-MIDI Series allows you to transmit 3G, HD or SD-SDI as per SMPTE 424M-2006, 292 and 259 with the ability to transmit 10/100 Base-T Ethernet RS422, Audio, Ethernet, Tally, Intercom & Return Video over single mode or multi mode fiber. All data channels are available simultaneously. The system transports a 3G/HD-SDI signal from the camera to the Base Station and a return video (3G/HD-SDI), Remote control data, gen lock, intercom, tally, audio and 10/100M Ethernet is also provided. The system puts all of the signals needed for multi-camera 3G/HD-SDI production onto a SM/MM tactical or SMPTE hybrid fiber cable, insuring robust, trouble-free connectivity on any studio or remote production.
Customizing Information
| Signal Type | Channel | Forward | backward | Bi-Directional (Forward + Backward) |
||||
| 1ch | 2ch | 4ch | 8ch | Other | ||||
| HD-SDI Video | ||||||||
| 3G-SDI Video | ||||||||
| 12G-SDI Video | ||||||||
| Analog Audio (3.5mm mini-jack) |
||||||||
| RS232 | ||||||||
| RS422 | ||||||||
| RS485 | ||||||||
| 100M Ethernet | ||||||||
| Tally | ||||||||
| Analog Tri-level Sync | ||||||||
| Note: Please circle "✔" for what you need. | ||||||||
