Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-3GSDI-8V
Payment & Shipping Terms
Minimum Order Quantity: 1 pair
Price: Negotiation
Packaging Details: SDI Fiber Converter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pairs/month
Keyword: |
3G SDI To Fiber Converter |
Power Adaptor: |
AC 110~220V |
Data Type: |
Reverse RS485 |
Frequency/Rate Support: |
Max. 57600bps |
Casing: |
Aluminum Case |
Working Temperature: |
-20℃～+70℃ |
Keyword: |
3G SDI To Fiber Converter |
Power Adaptor: |
AC 110~220V |
Data Type: |
Reverse RS485 |
Frequency/Rate Support: |
Max. 57600bps |
Casing: |
Aluminum Case |
Working Temperature: |
-20℃～+70℃ |

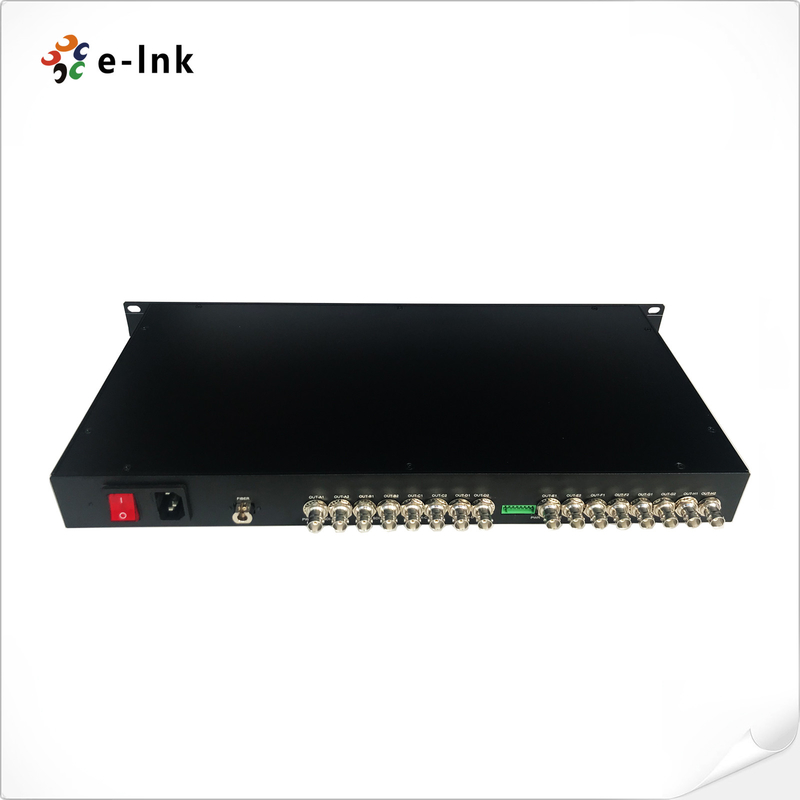

SDI Transceiver 8-Channel 3G-SDI Video With Loop-Out 20KM Fiber Optic Converter
8Ch 3G-SDI Converter Advantages
► Automatic cable equalization to ensure signal integrity
► Directly compatible with 3G-SDI camera systems and support Reverse RS-485 data protocols
► Long transmission capability at least 10 km (6.2miles) , up to 120 km
► Terminal block power input for industrial application
► Full digital non-compression broadcast level transmission
Technical Indexes
| Fiber interface | Simplex LC |
| Transmission distance | 550m-20Km |
| Wavelength | 1310nm/1550nm |
| Video Bits Rate | Max 3.2Gb/s |
| SDI format support | 625/25 PAL |
| 525/29.97 NTSC, 525/23.98 NTSC | |
| 720p50, 720p59.94 | |
| 1080i 23/24/30/50/59.94 | |
| 1080P 23.98/24/30/50/60 | |
| Video SDI standard | 270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI) |
| SMPTE425M3Gb/s Mapping(3G-SDI) | |
| SMPTE424M 3Gb/s serial interface(3G-SDI) | |
| Power adaptor | AC 110~220V |
| Power consumption | <15W |
| Dimensions (LxWxH) | 19inch 1U (483 x 220 x 44.45mm ) |
| Mounting Options | Paramount |
Overview
LNK-3GSDI-8V Series supports 8-channel 3G-SDI standard high-definition video signal transmitted via single fiber optical cable, and monitor the signal locally over a 3G/HD-SDI loop output. E-link 3G-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P 3G-SDI signal. E-link 3G-SDI Fiber Converters can simultaneously transmit 8-Ch 3G-SDI Video, 1-Ch Reverse RS-485 data, signal through a single optical fiber. The video quality up to broadcast standard, audio quality up to CD level supports Reverse RS-485 data communication format.
Ordering Information
| Model | Description |
| LNK-3GSDI-8V | 8-Ch 3G-SDI Video with loop-out, 20km, SM, FC, including 1 transmitter & 1 receiver, used by pairs |
| LNK-3GSDI-8V1R | 8-Ch SDI Video with loop-out + 1-Ch RS485 Reverse Data, 20km, SM, FC, including 1 transmitter & 1 receiver, used by pairs |
