12G SDI To Fiber Converter Non Compression Broadcast Level Transmission With Tally / RS485

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE

Model Number: LNK-M12G-1V1T1D-20

Payment & Shipping Terms

Minimum Order Quantity: 1pair

Price: USD399/pair

Packaging Details: 12G-SDI to Fiber Converter Standard Carton Packaging

Delivery Time: 3-5 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal

Supply Ability: 100000pair/Month

Get Best Price
Contact Now
Specifications
Highlight:

12G SDI to Fiber Converter

,

Non Compression SDI to Fiber Converter

,

Broadcast Level Transmission SDI Fiber Converter

Input:
1 X 12G-SDI On BNC
Output:
1 X 12G-SDI Loop-out On BNC, 1 X LC Optical Fiber
Resolution Range:
3840*2160@60Hz
Output Cable Specification:
≤70m@12G SDI Belden 1694A
Optical Transmission Bandwidth:
270MHz~12GHz
Power:
5-15 VDC
Input:
1 X 12G-SDI On BNC
Output:
1 X 12G-SDI Loop-out On BNC, 1 X LC Optical Fiber
Resolution Range:
3840*2160@60Hz
Output Cable Specification:
≤70m@12G SDI Belden 1694A
Optical Transmission Bandwidth:
270MHz~12GHz
Power:
5-15 VDC
Description
12G SDI To Fiber Converter Non Compression Broadcast Level Transmission With Tally / RS485

Mini 12G-SDI to Fiber Converter with Tally and RS485

12G-SDI to Fiber Converter Advantages:

Each SDI channel includes 8-channel audio embedded

Automatic cable equalization to ensure signal integrity

Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)

Directly compatible with 12G/6G/3G-SDI camera systems

Long transmission capability at least 10 km (6.2miles), up to 80 km

Supports Tally and Backward RS485Supports hot swapping and hot plugging

12G-SDI to Fiber Converter Specifications

SDI Input SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI, DVB-SSI and Telecom/Datacom
270Mbit/s - 1.48Gbit/s – 3Gbit/s
Input number: 4
Reflection loss: >15DB
Equilibrium: 0-150m @3Gb/s
Connector: BNC
Optics Channel: 1
Type: single-mode
Transmission distance: 20km (Other distance Optional)
Reflection loss: > 15dB
Dithering: < 0.2UI
Connector: FC/UPC (SC, LC, ST optional)
SDI Output Output number:4
Signal level: 800mV nominal
Rise/fall time: 200ps indication
Overshoot: < 10% amplitude
Reflection loss: >15dB
Dithering: < 0.2UI
Connector: 75Ω BNC
Data 1Ch RS-485 (full/half duplex) and support NRZ, RZI and Manchester
Max. 57600bps for RS485
Connector: Industrial standard screw terminal
4Ch Tally: A, B , C, D
SDI video format supports

625/25PAL; 525/29.97NTSC; 525/23.98NTSC; 720p50; 720p59.94;

1080P23.98/24/30/50/60; 1080i 23/24/30/50/59.94;

12G-SDI to Fiber Converter Overview:

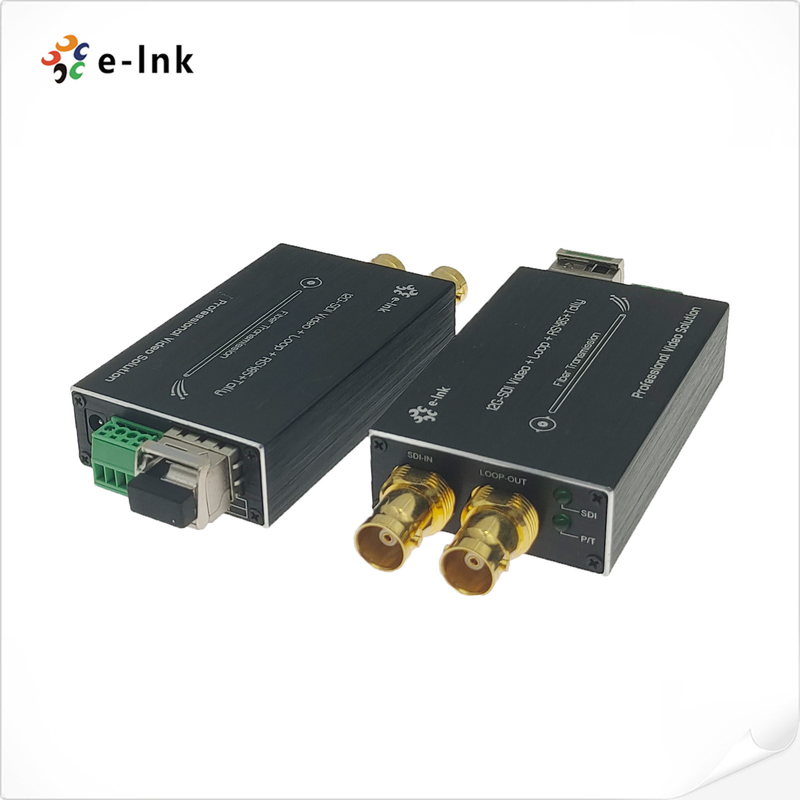

LNK-M12G-1V1T1D Series Mini-type 12G-SDI Fiber Converter supports 1Ch 12G Video (audio embedded), 1Ch Tally signal

and 1Ch Backward RS485 transmitted via fiber optical cable, and monitor the signal locally over a 12G loop output.

E-link 12G Video over Fiber Converters includes one transmitter and one receiver for

HDTV 4K*2K(3840*2160@60Hz), 1080P,1080I, 720P.

12G SDI To Fiber Converter Non Compression Broadcast Level Transmission With Tally / RS485 0

Ordering Information

Model Description
LNK-M12G-1V1T1D-20 Mini-type 12G-SDI to Fiber Converter with Tally, Reverse RS485 and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
