Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE
Model Number: LNK-12GSDI-1V2R1GE
Payment & Shipping Terms
Minimum Order Quantity: 1pair
Price: USD599/pair
Packaging Details: 12G-SDI to Fiber Converter Standard Carton Packaging
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 100000pair/Month
Input: |
1 X 12G-SDI On BNC |
Output: |
1 X 12G-SDI Loop-out On BNC, 2 X FC Optical Fiber |
Resolution Range: |
3840*2160@60Hz |
Output Cable Specification: |
≤60m@12G SDI Belden 1694A |
Optical Transmission Bandwidth: |
270MHz～12GHz |
Power: |
12 VDC |
Input: |
1 X 12G-SDI On BNC |
Output: |
1 X 12G-SDI Loop-out On BNC, 2 X FC Optical Fiber |
Resolution Range: |
3840*2160@60Hz |
Output Cable Specification: |
≤60m@12G SDI Belden 1694A |
Optical Transmission Bandwidth: |
270MHz～12GHz |
Power: |
12 VDC |
12G-SDI to Fiber Converter with Gigabit Ethernet and 2Ch Backward RS485
12G-SDI to Fiber Converter Advantages:
Each SDI channel includes 8-channel audio embedded
Automatic cable equalization to ensure signal integrity
Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)
Integrated Reclocker Locks to SMPTE Rates of 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or Divide-by-1.001 Subrates and 270 Mbps
Directly compatible with 12G/6G/3G-SDI camera systems
Long transmission capability up to 80 km
Support 2Ch Backwards RS485
Supports 1Ch 10/100/1000M Ethernet
Full digital non-compression broadcast level transmission;
Super optic dynamic range and free of adjustment;
Fiber optic WDM/CWDM/DWDM technique;
12G-SDI to Fiber Converter Specifications
| Formats | Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD) |
| Compatible | Compatible With DVB-ASI and AES10 (MADI) |
| Input | 1 x 12G-SDI on BNC |
| Output | 2 x FC optical fiber |
| 1 x 12G-SDI loop-out on BNC | |
| Supported Resolution | HDTV 4K*2K, 1080P, 1080I, 720P |
| Resolution range | 3840*2160@60Hz |
| Input cable specification | ≤70m@12G SDI Belden 1694A |
| Ethernet | 10/100/1000Mbps |
| Data type | 2Ch Backward RS485 |
| Optical transmission bandwidth | 270MHz～12GHz |
| Power | 12 VDC |
| Power Consumption | 6 W (Max.) |
| Dimensions (LxWxH) | 117 x 80 x 24 (mm) |
| Operating Temperature | -10℃～70℃ |
| Storage Temperature | -40℃～85℃ |

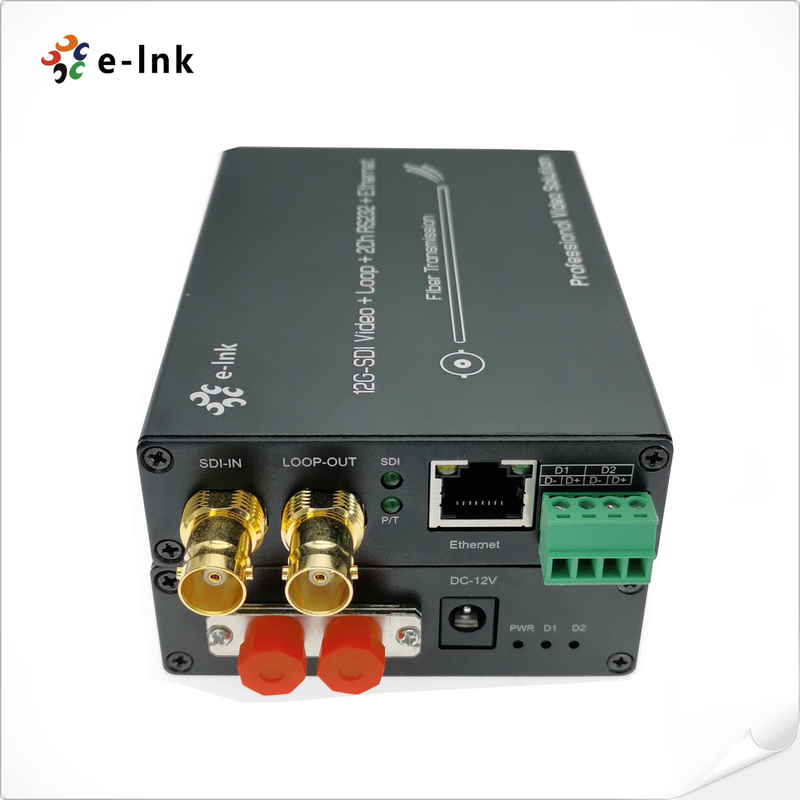

LNK-12GSDI-1V2R1GE Series 12G-SDI Fiber Converter supports 1Ch 12G Video (audio embedded) &1Ch Gigabit
Ethernet&2Ch Backward RS485 transmitted via fiber optical cable, and monitor the signal locally over a 12G loop output.
E-link 12G Video over Fiber Converters includes one transmitter and one receiver for HDTV 4K*2K(3840*2160@60Hz),
1080P,1080I, 720P.
Ordering Information
| Model | Description |
| LNK-12GSDI-1V2R1GE | 12G-SDI to Fiber Converter with Gigabit Ethernet and 2Ch Backward RS485, SMF, LC Fiber Connector 10KM, including Transmitter and Receiver, used by pairs |
