Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-MDR4K-MM
Payment & Shipping Terms
Minimum Order Quantity: 1 pair
Price: Negotiation
Packaging Details: DVI Fiber Extender Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pairs/month
Keyword: |
DVI Fiber Optic Extender |
Power Supply: |
5V DC USB-C |
Video Support: |
4Kx2K 30Hz |
Baud Rate: |
38400 RS232 |
Transmission Distance: |
300m~80km |
Operating Temperature: |
-10 ~ + 50°C |
Keyword: |
DVI Fiber Optic Extender |
Power Supply: |
5V DC USB-C |
Video Support: |
4Kx2K 30Hz |
Baud Rate: |
38400 RS232 |
Transmission Distance: |
300m~80km |
Operating Temperature: |
-10 ~ + 50°C |

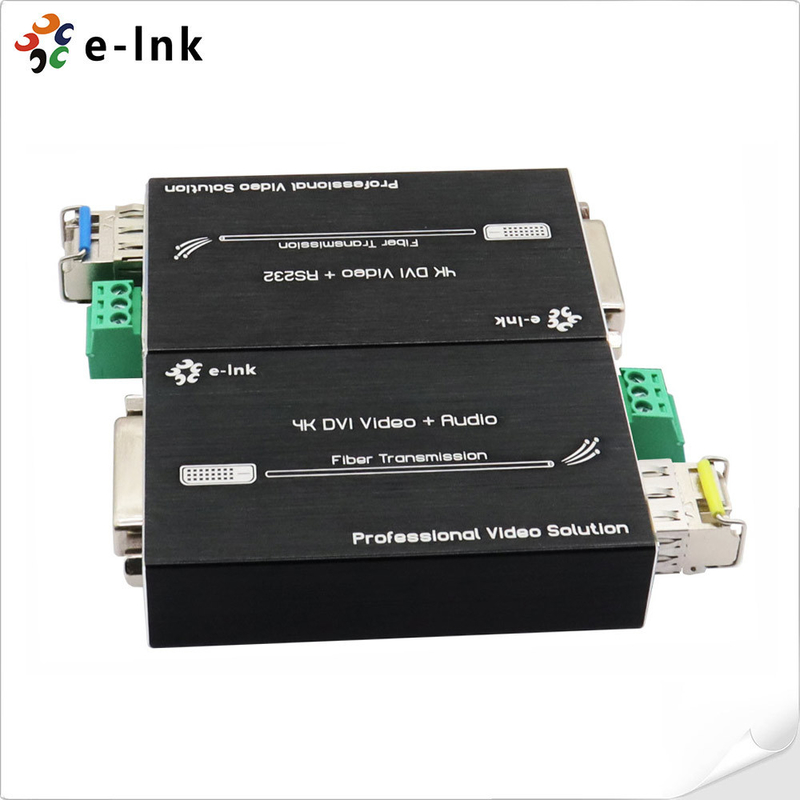

300m 80km Transmission Mini 4K DVI Fiber Optic Extender With RS232
Mini 4K DVI Fiber Optic Extender with RS232
DVI Video Fiber Converter Advantages
►Uncompressed transmission, No delay, No losses
►Data rate up to 10.2Gbps
►Transmission distance up to 80km over fiber cable
►Supports All Modes up to maximum 4K*2K@60Hz, YUV 4:2:0
►Auto EDID, match different kind display device
►Hot-Pluggable, EMI/RFI Resistant
Fiber Optic Converter Technical Indexes
|
Input Signals |
DVI |
|
Signal Support |
DVI 1.0 format standard and HDCP compliant |
|
Video Support |
Up to 720P/960P/1080p@60Hz, 4K*2K@30Hz |
|
Audio Support |
Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
|
Chroma Subsampling |
Max 3840*2160@60Hz (4:2:0) Max 3840*2160@30Hz (4:4:4, 4:2:2) |
|
EDID |
Bi-Directional (Forward + Backward) Transmission: Support Dynamic EDID, Plug & Play, no need to learn Single-Directional (Forward) Transmission: Support EDID learning manually |
|
RS232 |
3 Pin terminal, Baud rate ≤ 38400 |
|
Fiber Connector |
SFP/LC |
|
Bandwidth |
10.2Gbps |
|
Transmission Distance |
300m (Over OM3 Fiber) |
|
Up to 80km (Over Single-mode Fiber) |
|
|
Operating Temperature |
-10 ~ + 50°C |
|
MTBF |
100,000 hours |
|
Dimension (WxDxH) |
2.87 x 1.73 x 0.69in (73x44x17mm) |
|
Weight |
60g / 0.13 lb |
Fiber Optical Transceiver Overview
The LNK-MDR4K Series 4K DVI Fiber Extender are designed to support transmission of uncompressed DVI signal and RS232 signal over optical fiber up to distances of 80km at a resolution of maximum 4K*2K@60Hz, YUV 4:2:0. The Transmitter converts DVI signal to a single 10Gb/s serial data stream for transmission over optical fiber. The Receiver converts the serial data back to an DVI signal.
Micro DVI over Transmitter Receiver Ordering Information
|
Model |
Description |
|
LNK-MDR4K-MM |
Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
|
LNK- MDR4K-S20 |
Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, Single-mode Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
|
LNK- MDR4K-S40 |
Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, Single-mode Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
|
LNK- MDR4K-S80 |
Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, Single-mode Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
