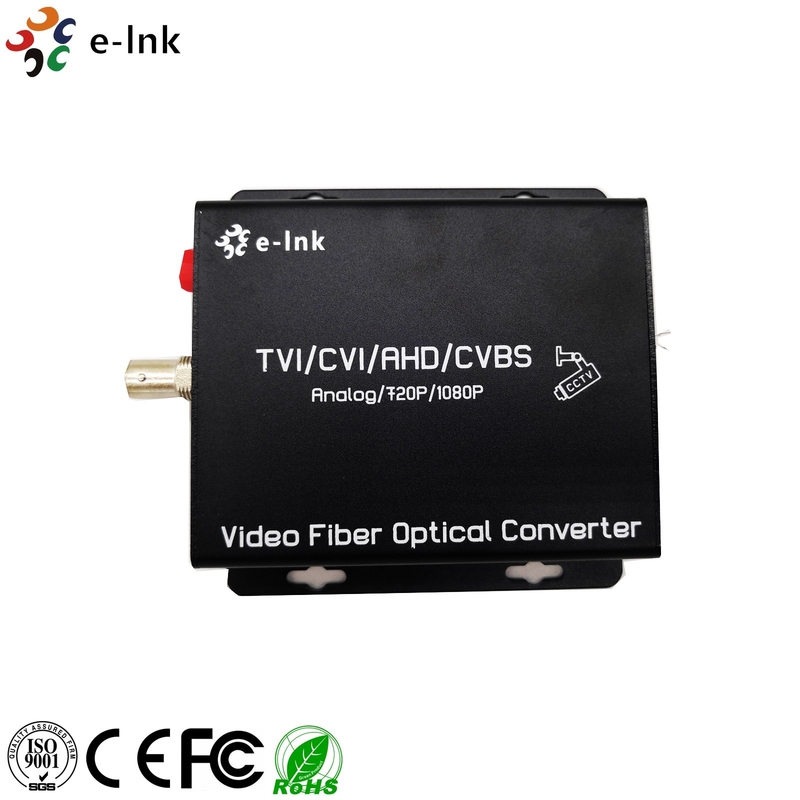

1Ch BNC CCTV Video To Optical Fiber Converter 50MHz Video Bandwidth

Name: 1Ch BNC CCTV Video To Optical Fiber Converter 50MHz Video Bandwidth
Brand: E-link China Technology Co.,LTD
SKU: LNK-1HACT-M
Price: 399.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-1HACT-M

Payment & Shipping Terms

Minimum Order Quantity: 1 pair

Price: $29-769

Packaging Details: Video Fiber Converter Standard Export Package

Delivery Time: 5-12 working days

Payment Terms: L/C, T/T, Western Union, , Paypal

Supply Ability: 1000 pairs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      50MHz CCTV Video To Optical Fiber Converter, 1Ch BNC Ahd Fiber Converter, 1Ch BNC CCTV To Fiber Converter


Keyword:	Fiber Optic Transmitter Receiver	Optical Connector:	FC (default), ST Or SC (optional)
Number Of Channels:	1	Connector:	BNC
Video Bandwidth:	50MHz	PTZ Data Rate:	0-200Kbps

Keyword:	Fiber Optic Transmitter Receiver
Optical Connector:	FC (default), ST Or SC (optional)
Number Of Channels:	1
Connector:	BNC
Video Bandwidth:	50MHz
PTZ Data Rate:	0-200Kbps

Description

1Ch BNC CCTV Video To Optical Fiber Converter 50MHz Video Bandwidth

1Ch BNC CCTV Video To Optical Fiber Converter 50MHz Video Bandwidth

1Ch HD-AHD/HD-CVI/HD-TVI/CVBS 4-in-1 Video Fiber Converter

4-In-1 Video Fiber Converter Advantages

► Non-compression coding technology.

► Automatically identify formats of input videos.

► Support transmission of combined AHD, HDCVI, HD-TVI or CVBS signal

and controlling PTZ data RS485 simultaneously though fiber optical cable.

► Support 720p/50, 720p/60, 1080p/25, 1080p/30 videos etc.

► Through LED indicators to inform its functional mode.

Technical Indexes

Optical Fiber
Wavelength		WDM:1310nm/1550nm
Optic fiber		50/125u multimode,62.5/125u multimode,9/125u single mode
Optical connector		FC (default), ST or SC (optional)
Transmission Distance		0~550M (MM) / 0~80KM (SM) (Default distance is 20Km)
Video
Number of Channels		1
Sampling Frequency		108MHz
Supporting video pixel/Resolution		1280(H)x720(V)@30Hz/1MPX 1280(H)x720(V)@50Hz/1MPX 1280(H)x960(V)@30Hz/1.3MPX 1920(H)x1080(V)@30Hz/2MPX
PTZ Data
Protocol		Default: RS485 (RS232/RS422 Optional)
Number of channels		1
Data Rate		0-200Kbps
Directions		Default :Simplex from Rx to Tx (BIDI duplex optional)
Electrical and Mechanical
Input Power:	DC5V 2A
Casing:	Metal Case
Mounting Options:	Wall-mount/Rack-mount

Overview

E-link 1Ch AHD/CVI/TVI/CVBS Fiber optic transceiver can simultaneously transmit 1 channel AHD, HD-CVI, HD-TVI or CVBS Video over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment.
1Ch BNC CCTV Video To Optical Fiber Converter 50MHz Video Bandwidth

1Ch BNC CCTV Video To Optical Fiber Converter 50MHz Video Bandwidth

Ordering Information

Model	Details
LNK-1ACT-M	1-Ch HD-AHD/CVI/TVI/CVBS video (720P, 960P HD-AHD/CVI/TVI Camera), 2km, Multimode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs
LNK-1ACT-MR	1-Ch HD-AHD/CVI/TVI/CVBS video (720P, 960P HD-AHD/CVI/TVI Camera) + 1-Ch Backward Data RS485 (for PTZ Cameras), 2km, Multimode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs
LNK-1ACT-20	1-Ch HD-AHD/CVI/TVI/CVBS video (720P, 960P HD-AHD/CVI/TVI Camera), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs
LNK-1ACT-20R	1-Ch HD-AHD/CVI/TVI/CVBS video (720P, 960P HD-AHD/CVI/TVI Camera) + 1-Ch Backward Data RS485 (for PTZ Cameras), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs
LNK-1HACT-20	1-Ch HD-AHD/CVI/TVI/CVBS video (1080P HD-AHD/CVI/TVI Camera), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs
LNK-1HACT-20R	1-Ch HD-AHD/CVI/TVI/CVBS video (1080P HD-AHD/CVI/TVI Camera) + 1-Ch Backward Data RS485 (for PTZ Cameras), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs
LNK-1HACT-40	1-Ch HD-AHD/CVI/TVI/CVBS video (1080P HD-AHD/CVI/TVI Camera), 40km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs
LNK-1HACT-40R	1-Ch HD-AHD/CVI/TVI/CVBS video (1080P HD-AHD/CVI/TVI Camera) + 1-Ch Backward Data RS485 (for PTZ Cameras), 40km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs
