4 Channels 4 In 1 67dB Video Fiber Converter DC5V 2A Input Power

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-4ACT-20

Payment & Shipping Terms

Minimum Order Quantity: 1 pair

Price: negotiation

Packaging Details: Video Fiber Converter Standard Export Package

Delivery Time: 5-12 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability: 1000 pairs/month

Get Best Price
Contact Now
Specifications
Highlight:

67dB Video Fiber Converter

,

0.8ns Video Fiber Converter

,

67dB AHD Hdmi Converter

Keyword:
Fiber Optic Video Converter
Input Power:
DC5V 2A
Video Number:
4 Channels
Fiber Connector:
FC (default), ST Or SC (optional)
Sampling Frequency:
108MHz
Casing:
Metal Case
Keyword:
Fiber Optic Video Converter
Input Power:
DC5V 2A
Video Number:
4 Channels
Fiber Connector:
FC (default), ST Or SC (optional)
Sampling Frequency:
108MHz
Casing:
Metal Case
Description
4 Channels 4 In 1 67dB Video Fiber Converter DC5V 2A Input Power

4 Channels 4 In 1 67dB Video Fiber Converter DC5V 2A Input Power



4Ch HD-AHD/HD-CVI/HD-TVI/CVBS 4-in-1 Video Fiber Converter



Fiber Optic Video Converter Advantages

►Transmission Distance 0~550M (MM) / 0~80KM (SM) (Default distance is 20Km)

► Plug and play, simple installation.

► Wide-range temperature application: -15ºC ~65ºC

► Support 720p/50, 720p/60, 1080p/25, 1080p/30 videos etc.



Technical Indexes

Number of Channels

4

Input/output impedance

75 Ohm (unbalance)

Standard video input/output voltage

1.0Vp-p

Video Bandwidth

50MHz

Sampling Bandwidth

8bit

Signal to noise ratio

>67dB

Rise and Fall time

<0.8ns

Connector

BNC

Supporting video pixel/Resolution

1280(H)x720(V)@30Hz/1MPX

1280(H)x720(V)@50Hz/1MPX

1280(H)x960(V)@30Hz/1.3MPX

1920(H)x1080(V)@30Hz/2MPX

PTZ Data

Protocol

Default: RS485 (RS232/RS422 Optional)

Connector

3pins Terminal Blocks

Data Rate

0-200Kbps

Directions

Default :Simplex from Rx to Tx (BIDI duplex optional)

Overview

E-link 4Ch AHD/CVI/TVI/CVBS Fiber optic transceiver can simultaneously transmit 4 channels AHD, HD-CVI, HD-TVI or CVBS Video over one multimode or single-mode optical fiber. HD-AHD/HD-CVI/HD-TVI/CVBS 4-in-1 Video Fiber Converter adopts the advanced uncompressed HD composite video and high speed digital optical transmission technologies which converts the AHD, HD-CVI, HD-TVI or CVBS composite signals to optical signals in order to achieve long distance(as far as 120Km) transmission through fibers.

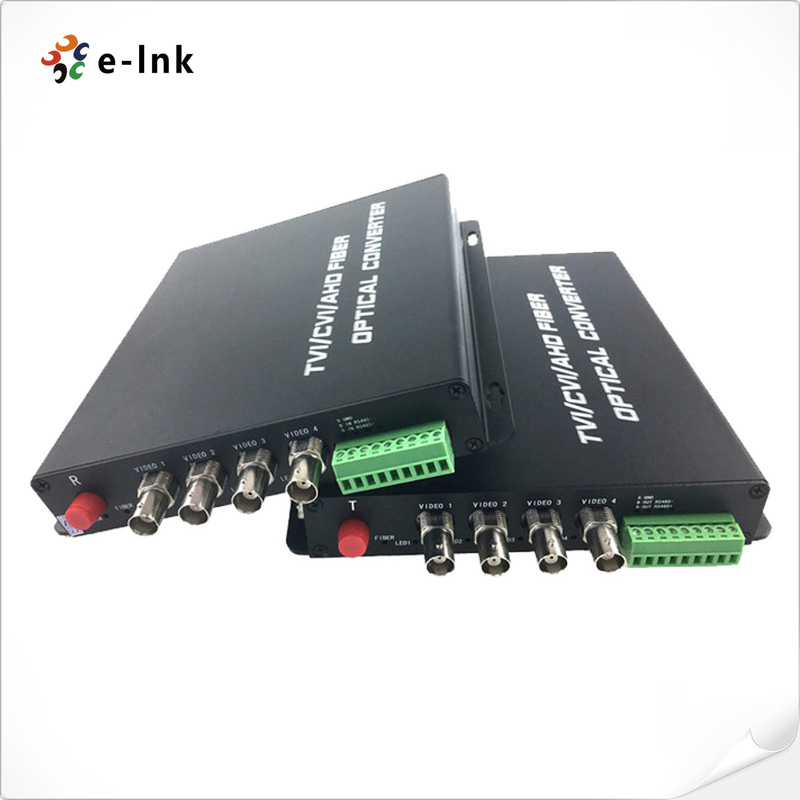

4 Channels 4 In 1 67dB Video Fiber Converter DC5V 2A Input Power 0

4 Channels 4 In 1 67dB Video Fiber Converter DC5V 2A Input Power 1

Ordering Information

Model

Details

LNK-4ACT-20

4-Ch HD-AHD/CVI/TVI/CVBS video (720P, 960P HD-AHD/CVI/TVI Camera), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs

LNK-4ACT-20R

4-Ch HD-AHD/CVI/TVI/CVBS video (720P, 960P HD-AHD/CVI/TVI Camera) + 1-Ch Backward Data RS485 (for PTZ Cameras), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs

LNK-4HACT-20

4-Ch HD-AHD/CVI/TVI/CVBS video (1080P HD-AHD/CVI/TVI Camera), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs

LNK-4HACT-20R

4-Ch HD-AHD/CVI/TVI/CVBS video (1080P HD-AHD/CVI/TVI Camera) + 1-Ch Backward Data RS485 (for PTZ Cameras), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs
