4 In 1 20Km video digital optical converter 1Ch 5MP HD Video

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-5MP-1V-20

Payment & Shipping Terms

Minimum Order Quantity: 1 pair

Price: negotiation

Packaging Details: Video Fiber Converter Standard Export Package

Delivery Time: 5-12 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability: 1000 pairs/month

Get Best Price
Contact Now
Specifications
Highlight:

20Km Video Digital Optical Converter

,

20Km Fiber Video Converter

,

3dBm Video Digital Optical Converter

Keyword:
CCTV Camera Video Converter
Output Power:
-8~3dBm
Optical Connector:
FC (default)
Transmission Distance:
20Km
Video Number:
1 Channel
Mounting Options:
Wall-mount/Rack-mount
Keyword:
CCTV Camera Video Converter
Output Power:
-8~3dBm
Optical Connector:
FC (default)
Transmission Distance:
20Km
Video Number:
1 Channel
Mounting Options:
Wall-mount/Rack-mount
Description
4 In 1 20Km video digital optical converter 1Ch 5MP HD Video

4 In 1 20Km Video Digital Optical Converter 1Ch 5MP HD Video

1Ch 5MP HD-Video 4-in-1 Video Fiber Converter
Fiber Optic Video Converter Advantages
► Support 5MP 4MP 3MP 1080P 720P Camera
► PTZ data RS485 / RS232 / RS422 optical
► 50/125u multimode,62.5/125u multimode,9/125u single mode optic fiber
► Transmission Distance 0~550M (MM) / 0~80KM (SM) option

Technical Indexes

Optical Fiber

Wavelength

WDM:1310nm/1550nm

Rx sensitivity

-26dBm

Optical connector

FC (default), ST or SC (optional)

Video

Input/output impedance

75 Ohm (unbalance)

Standard video input/output voltage

1.0Vp-p

Video Bandwidth

50MHz

Connector

BNC

Supporting video

5MP 4MP 3MP 1080P 720P Camera

PTZ Data

Protocol

Default: RS485 (RS232/RS422 Optional)

Directions

Default :Simplex from Rx to Tx (BIDI duplex optional)

Electrical and Mechanical

Input Power:

DC5V 2A

Power Consumption:

≤6W

Casing:

Metal Case

Overview
E-link HD-AHD/HD-CVI/HD-TVI/CVBS 4-in-1 Video Fiber Converter adopts the advanced uncompressed HD composite video and high speed digital optical transmission technologies which converts the AHD, HD-CVI, HD-TVI or CVBS composite signals to optical signals in order to achieve long distance(as far as 120Km) transmission through fibers. Electronic and optical adjustments are never required.

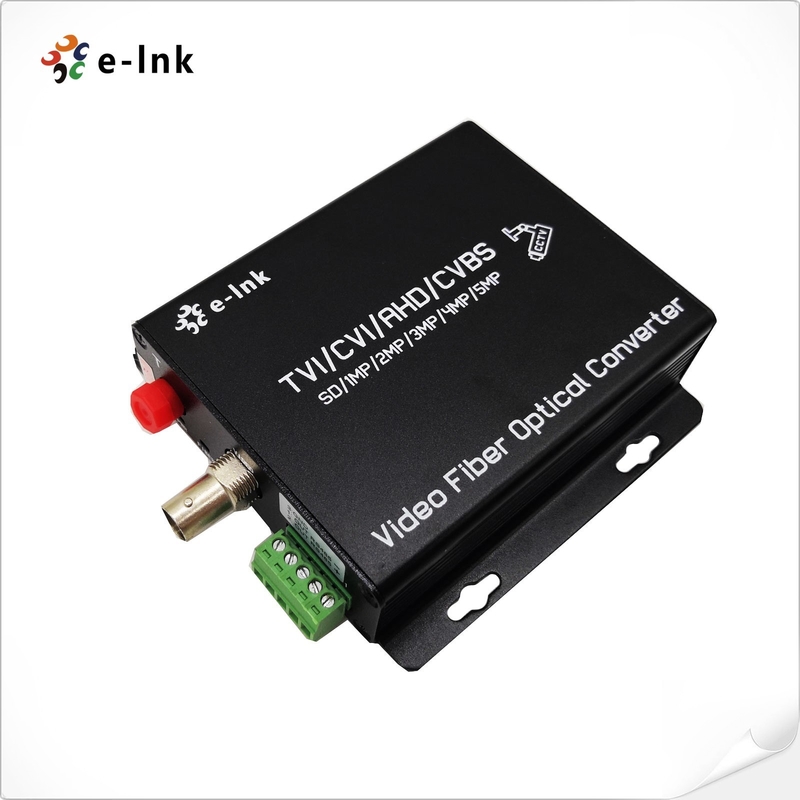

4 In 1 20Km video digital optical converter 1Ch 5MP HD Video 0
4 In 1 20Km video digital optical converter 1Ch 5MP HD Video 1
Ordering information

Model

Details

LNK-5MP-1V-20

1-Ch HD-AHD/CVI/TVI/CVBS video (5MP 4MP 3MP 1080P 720P Camera), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs

LNK-5MP-1V-20R

1-Ch HD-AHD/CVI/TVI/CVBS video (5MP 4MP 3MP 1080P 720P Camera ) + 1-Ch Backward Data RS485 (for PTZ Cameras), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs
