2Ch CCTV Camera Video Fiber Converter With 20Km Transmission Distance

Name: 2Ch CCTV Camera Video Fiber Converter With 20Km Transmission Distance
Brand: E-link China Technology Co.,LTD
SKU: LNK-5MP-2V-20
Price: 399.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-5MP-2V-20

Payment & Shipping Terms

Minimum Order Quantity: 1 pair

Price: $29-769

Packaging Details: Video Fiber Converter Standard Export Package

Delivery Time: 5-12 working days

Payment Terms: L/C, T/T, Western Union, , Paypal

Supply Ability: 1000 pairs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      20Km Video Fiber Converter, 3dBm Video Fiber Converter, 20Km CCTV Camera Video Converter


Keyword:	CCTV Camera Video Converter	Output Power:	-8~3dBm
Optical Connector:	FC (default)	Transmission Distance:	20Km
Video Number:	2 Channel	Mounting Options:	Wall-mount/Rack-mount

Keyword:	CCTV Camera Video Converter
Output Power:	-8~3dBm
Optical Connector:	FC (default)
Transmission Distance:	20Km
Video Number:	2 Channel
Mounting Options:	Wall-mount/Rack-mount

Description

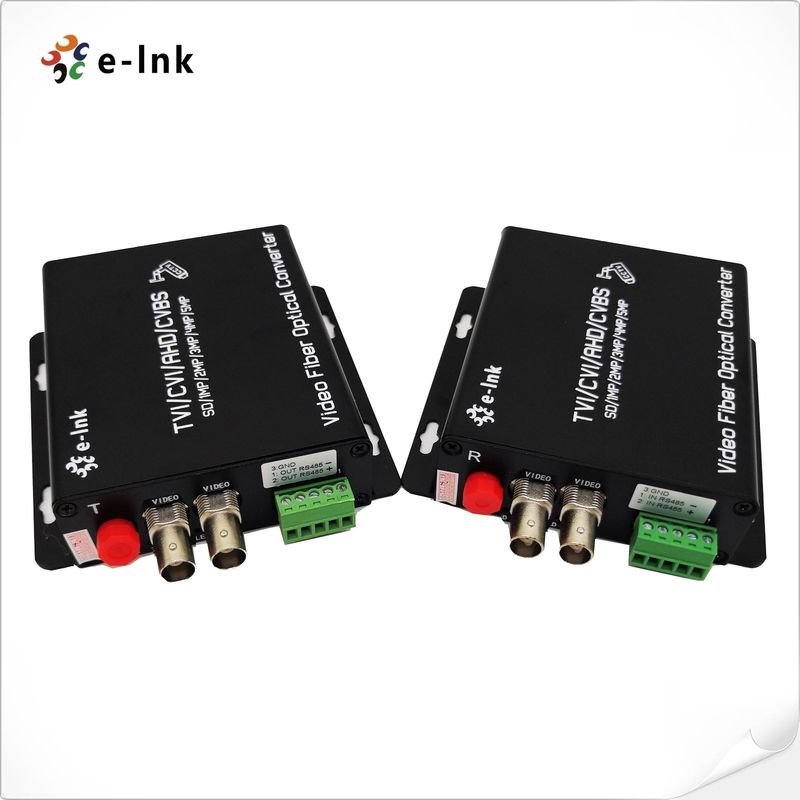

2Ch CCTV Camera Video Fiber Converter With 20Km Transmission Distance

2Ch CCTV Camera Video Fiber Converter With 20Km Transmission Distance

2Ch 5MP HD-Video 4-in-1 Video Fiber Converter

Fiber Optic Video Converter Advantages

► Non-compression coding technology

► Automatically identify formats of input videos.

► Support transmission of combined AHD, HDCVI, HD-TVI or CVBS signal and controlling PTZ data RS485 simultaneously though fiber optical cable

► Support 5MP 4MP 3MP 1080P 720P Camera

► Through LED indicators to inform its functional mode

► Industrial wide range of operational temperature

► Plug and play, simple installation.

► Wide-range temperature application: -15ºC ~65ºC

Technical Indexes

Optical Fiber
Wavelength		WDM:1310nm/1550nm
Output Power		-8~3dBm
Optic fiber		50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity		-26dBm
Optical connector		FC (default), ST or SC (optional)
Transmission Distance		0~550M (MM) / 0~80KM (SM) (Default distance is 20Km)
Video
Number of Channels		2
Input/output impedance		75 Ohm (unbalance)
input/output voltage		1.0Vp-p
Video Bandwidth		50MHz
Sampling Bandwidth		8bit
Sampling Frequency		108MHz
Signal to noise ratio		>67dB
Rise and Fall time		<0.8ns
Optical Signal Intrinsic Jitter		<0.2 UI
Differential Gain		< ±1.5%
Differential Phase		< ±1°
Connector		BNC
Supporting video		5MP 4MP 3MP 1080P 720P Camera
PTZ Data
Protocol		Default: RS485 (RS232/RS422 Optional)
Number of channels		1
Connector		3pins Terminal Blocks
Data Rate		0-200Kbps
Directions		Default :Simplex from Rx to Tx (BIDI duplex optional)
Environmental
Operating Temperature:		-15°C to 65°C (5°F to 149°F)
Storage Temperature:		-40°C to 85°C (-40°F to 185°F)
Relative Humidity:		5% to 95% non-condensing
MTBF		> 100,000 hrs
Electrical and Mechanical
Input Power:	DC5V 2A
Power Consumption:	≤6W
LED Indicators:
Fiber	Fiber Status
Video	LED
Data	Data status
PWR	Power Status
Dimensions(WxDxH):	167 x 172 x 28 mm
Weight:	1.5Kg
Casing:	Metal Case
Mounting Options:	Wall-mount/Rack-mount
Regulatory Approvals
ISO9001
CE, RoHS and FCC

Overview
E-link HD-AHD/HD-CVI/HD-TVI/CVBS 4-in-1 Video Fiber Converter adopts the advanced uncompressed HD composite video and high speed digital optical transmission technologies which converts the AHD, HD-CVI, HD-TVI or CVBS composite signals to optical signals in order to achieve long distance(as far as 120Km) transmission through fibers. E-link 2Ch AHD/CVI/TVI/CVBS Fiber optic transceiver can simultaneously transmit 2 channels AHD, HD-CVI, HD-TVI or CVBS Video over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment. It supports 5MP 4MP 3MP 1080P 720P Camera.
2Ch CCTV Camera Video Fiber Converter With 20Km Transmission Distance
Ordering information

Model	Details
LNK-5MP-2V-20	2-Ch HD-AHD/CVI/TVI/CVBS video (5MP 4MP 3MP 1080P 720P Camera), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs
LNK-5MP-2V-20R	2-Ch HD-AHD/CVI/TVI/CVBS video (5MP 4MP 3MP 1080P 720P Camera ) + 1-Ch Backward Data RS485 (for PTZ Cameras), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs
