Level A 425M 424M 292M 259M SDI Fiber Converter 3G SDI To AV

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-SA001

Payment & Shipping Terms

Minimum Order Quantity: 1 pair

Price: negotiation

Packaging Details: SDI Fiber Converter Standard Export Package

Delivery Time: 5-12 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability: 1000 pairs/month

Get Best Price
Contact Now
Specifications
Highlight:

259M SDI Fiber Converter

,

425M SDI To AV Converter

,

292M SDI Fiber Converter

SMPTE Standard:
425M Level A & B, 424M, 292M, 259M-C
SDI Transmission Rates:
2.970 Gbit/s And 2.970/1.001 Gbit/s
Dimension:
95mm X 60mm X 25 Mm
Weight:
260g
SMPTE Standard:
425M Level A & B, 424M, 292M, 259M-C
SDI Transmission Rates:
2.970 Gbit/s And 2.970/1.001 Gbit/s
Dimension:
95mm X 60mm X 25 Mm
Weight:
260g
Description
Level A 425M 424M 292M 259M SDI Fiber Converter 3G SDI To AV

Level A 425M 424M 292M 259M SDI Fiber Converter 3G SDI To AV



3G SDI to AV Scaler Converter


3G SDI to AV Scaler Converter Advantages



1. Operation at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s

2. Equalized and re-clocked loop output

3. Auto video mode detection (3G/HD/SD)

4. Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit

5. Connect with other units to extend your signal over long distances

6. Simultaneous display with SDI /AV signals

7. Alternative audio output to analog 2CH

8. Supports signal transmission distances of up to 300M for SD signals, 200M for HD signals and 100M for 3G signals



Technical Indexes

Parameter Specifications
SMPTE Standard 425M Level A & B, 424M, 292M, 259M-C
SDI Transmission Rates 2.970 Gbit/s and 2.970/1.001 Gbit/s
SDI in/out Resolution

SD: 480i@60, 576i@50

HD:720p@50/60, 1080i@50/60

3G:1080p@24/25/29.97/30/50/59.94/60

CVBS Output Resolution PAL/NTSC-M
Input Port 1 x BNC (SD/HD/3G-SDI)
Output Port 1 x BNC (SD/HD/3G-SDI), 3 x RCA (CVBS,L/R)
Power Supply DC 5V -12V
ESD Protection Human body model

±8kV (air-gap discharge) ,

±4kV (contact discharge)

Dimension 95mm x 60mm x 25 mm
Weight 260g
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
elative Humidity 20 ~ 90% RH (Non-condensing)
Power Consumption (Max) 5W

Overview
The LNK-SA001 SDI to AV scaler converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on CRT or HDTV while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss. For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on TV thanks to the built in this converter. Furthermore, thanks to the loop-through 3G-SDI design, users are able to enjoy both SDI and AV at the same time.

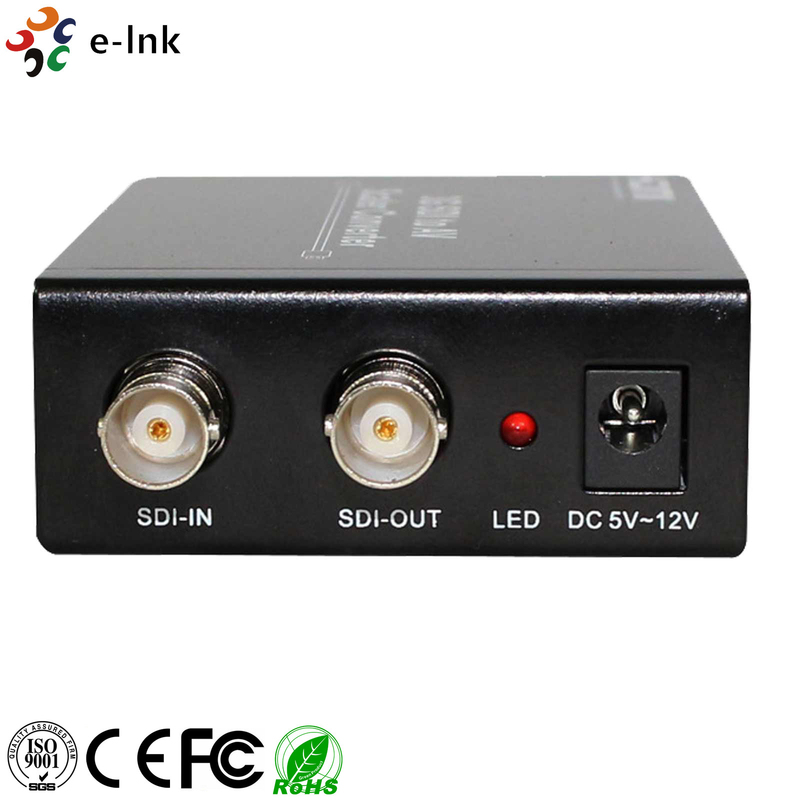

Level A 425M 424M 292M 259M SDI Fiber Converter 3G SDI To AV 0
