Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-SPD1000
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: negotiation
Packaging Details: PoE Power Splitter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Operating Temperature Range: |
-25~+65 ºC |
Test Standard: |
IEC61643-21: 2000 |
Network Interface Type: |
RJ45 |
Response Time Ta: |
1nS |
Operating Temperature Range: |
-25~+65 ºC |
Test Standard: |
IEC61643-21: 2000 |
Network Interface Type: |
RJ45 |
Response Time Ta: |
1nS |

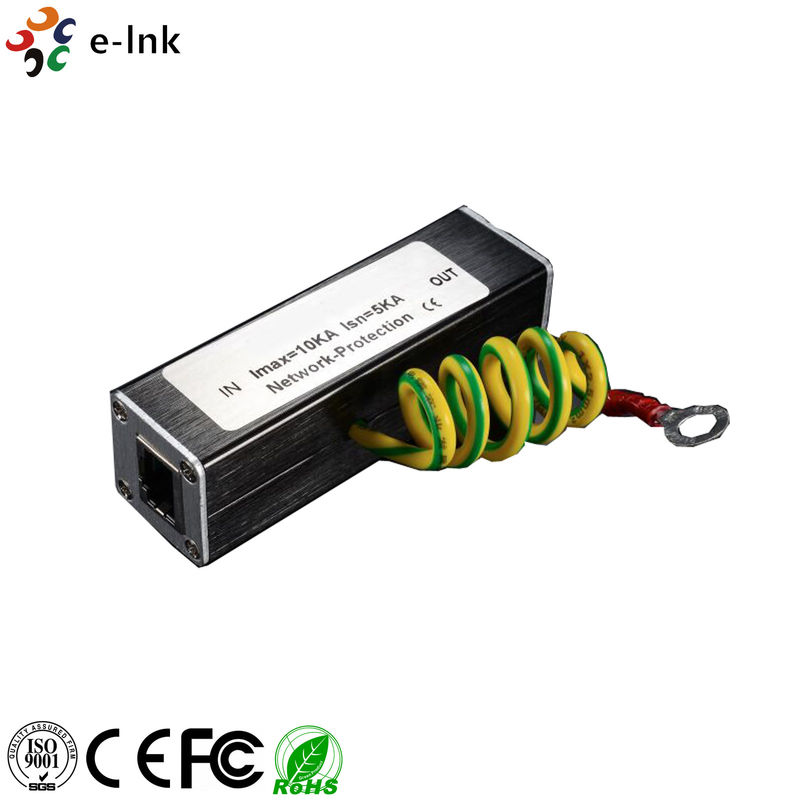

RJ45 Ethernet Surge Protector POE Smart PDU Rack Mount Power Supply
Surge Protector for 10/100/1000M Ethernet
Advantages
► Adopt multilevel protection circuit, low-level persistent voltage
► Adopt the famous German brand core components, installation and maintenance is easy
► It has huge flow capacity, sensitive reaction
► Excellent performance, and low-loss insert
Technical Indexes
| Continuous Operating Voltage Un | 5V |
| Maximum Working Voltage Uc | 10V |
| Nominal Discharging Current In (8/20us) | 5KA |
| Maximum Discharging Current Imax (8/20us) | 10KA |
| Limit Voltage Up | 15V |
| Network Signal Transmission Rate Vs | 10/100/1000Mbps |
| Insert Loss Ae | 0.2dB |
| Response Time Ta | 1nS |
| Network Interface Type | RJ45 |
| Working Conditions |
Temperature -25~+65 ºC Humidity<95% (25~30 ºC) |
| Test Standard | IEC61643-21: 2000 |
Overview
The Surge Protector for 10/100/1000M Ethernet is applied to protect sensitive high speed network communication circuits; It is widely used for protecting data transmission system in computer communication, network switchboard and network router from serious damage, which made by thunder and lightning induced tension, electrical network voltage undulation disturbance, static discharge, and impact surge voltage caused by major damage.
Ordering information
| Model | Description |
| LNK-SPD1000 | Surge Protector for 10/100/1000M Ethernet |
