Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-P1000
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Operating Temperature: |
0 ~ 40 °C |
Storage Temperature: |
-10℃~70℃ |
Storage Humidity: |
10%~90% Non-condensing |
Dimension: |
145*70*42(mm) |
Operating Temperature: |
0 ~ 40 °C |
Storage Temperature: |
-10℃~70℃ |
Storage Humidity: |
10%~90% Non-condensing |
Dimension: |
145*70*42(mm) |

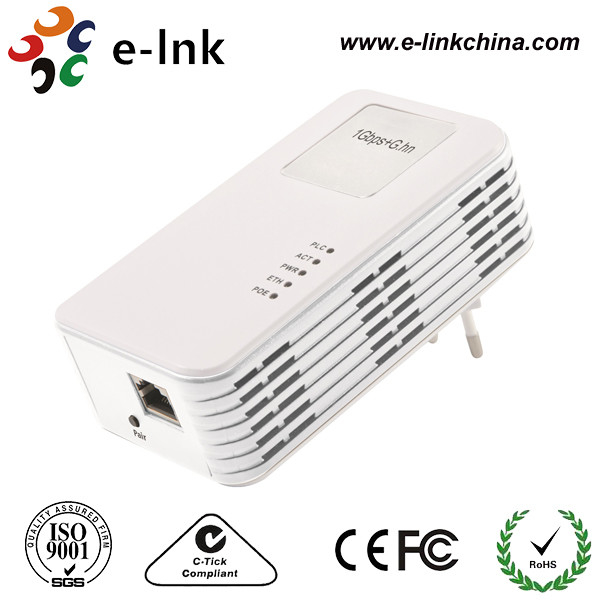

1000M Mini Powerline Ethernet Adapter PLC Throughput Up To 800Mbps
1000M Mini Powerline Ethernet Adapter
Advantages
Support ITU-T G.hn baseband plans 25,50and 100MHz and MIMO techniques for powerline(based on G.9963)boosting PLC throughput up to 800Mbps PHY rate over powerline.
· High Speed Data Transmission
High speed (max.1Gbps)dramatically increases the performance of next-generation home entertainment applications such sa multiple high definition (HD) TV over IP( IPTV),3DTV and VoIP, digital video recorder(DVR) networking and media center PCs
Local area network can be extended without the hassle of having to install extra wiring because the power line network is already a commonplace fixture in most households.
| Interface | 1* 10/100/1000Mbps self-adaption RJ-45 port. |
| LED display lights |
Ethernet light (ETH) PLC communication status (ACT) Power light (PWR) |
| Ethernet |
IEEE802.3 10/100/1000MbpsBaseT auto-sense Auto rate and duplex negotiation MDI/MDX support |
| Modulations | OFDM,FEC,Flexible frequency configuration |
| Data Rate | Up to 1Gbps |
| Management |
HTTP Web-based;firmware upgrade via TFTP TR-069 Supported(Optional) |
| Security | AES 128 bits encryption ensures total data security |
| Networking Protocols |
802.1D Ethernet Bridge 802.1Q VLAN Quality of Service(QoS) IGMP(IPV4)Snooping & MLD(IPv6)Snooping |
| Power |
110-240VAC 50Hz/60Hz Auto power saving mode max 0.5W(in standby mode) |
| Environment Connection |
Oerating temperature:0-40 degrees Celsius Relative humidity:8-95%(non-condensing) |
| Certifications | FCC,CE calssB, WEEE,RoHS, ITU-T G.hn Standard |
| Size | 145*70*42(mm) |
| Environment |
Operating Temperature: 0℃~40℃ Storage Temperature: -10℃~70℃ Operating Humidity: 10%~90% non-condensing Storage humidity: 5%~90% non-condensing |
The E-LINK LNK-P1000 Series networking standard compliant Ethernet adapter, provides the best quality data transmission for the truly high-speed ‘connected home’ experience. It allows users to extend a local area network via existing power lines, eliminating the need for extra wiring. Installation at home (or in a small office) is quick and easy as the PowerGrid LNK-P1000 comes with plug-and-play technology.
The LNK-P1000 Series supports MIMO operation and can be used with two fully programmable reception and transmission paths to attain up to 1Gbps PHY rates.
