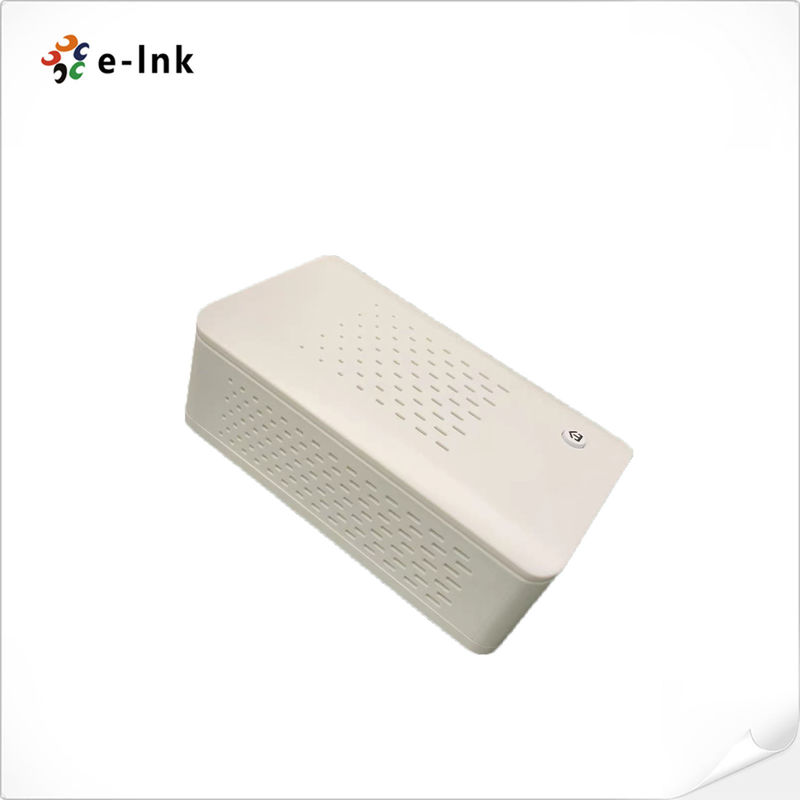

1200Mbps Passthrough Powerline PoE Injector Adapter With Power Socket

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-P1200ST

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiation

Packaging Details: Standard Export Package

Delivery Time: 5-12 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 1000pcs/month

Get Best Price
Contact Now
Specifications
Highlight:

Passthrough Powerline PoE Injector Adapter

,

1200Mbps PoE Injector Adapter

,

1200Mbps Passthrough Powerline Adapter

Operating Temperature:
0 ~ 70 °C
Storage Temperature:
-20℃~70℃
Storage Humidity:
5%~90% Non-condensing
Dimension::
145*70*42(mm)
Operating Temperature:
0 ~ 70 °C
Storage Temperature:
-20℃~70℃
Storage Humidity:
5%~90% Non-condensing
Dimension::
145*70*42(mm)
Description
1200Mbps Passthrough Powerline PoE Injector Adapter With Power Socket

1200Mbps Passthrough Powerline PoE Injector Adapter With Power Socket



1200Mbps Passthrough Powerline Adapter with Power Socket

Advantages

· High-Speed powerline adapter with Ethernet interface for fast data transfer over the existing household power supply;

· The high-speed transfer rates of 1200Mbps even make it possible to transmit video in DVD quality;

· No need new wires and use at any power socket with up to ranges of 500meters;

· Simple plug and easy to install;

· Fully compliant with IEEE802.3/802.3u,HomePlugAV/HomePlugAV2 standard;

· Provide 128-bit AES link encryption for Powerline networks;

· Up to 1200Mbps data rate on Powerline networking;

· Allow user to connect PCs and other devices conveniently via any power outlet at home.




 Technical Indexes





Interface

1*LAN 10/100/1000M RJ45

LED display light

PWR(power light), PLC(PLC signal light),

ETH(Ethernet light)

Transmission band

2-68MHZ

Standards

HomePlug AV2

IEEE 802.3,

IEEE 802.3u,

IEEE 802.3ab,

IEEE 802.3x,

IEEE 802.1p,
Auto MDI/X

Security

128 Bit AES

Transfer rate(PHY)

1200Mbps

Modulation

OFDM

Plug

EU,UK,AU,US

Support Operation System

Windows 7 (32 Bit), Windows 7 (64 Bit)
Windows 8.x (32 Bit), Windows 8.x (64 Bit), Windows 8.x Pro (32 Bit), Windows 8.x Pro (64 Bit)
Ubuntu-Linux 12.04 (32 Bit)
MAC OS X 10.6, MAC OS X 10.7, MAC OS X 10.8, MAC OS X 10.9

Quantity of a group(Max)

15 pieces

Working voltage

AC 100V-240V 60/50Hz

Operating environment

Working temperature:0℃-70℃

Storage temperature:-20℃-70℃

Working humidity:10%-85% no condense

Storage humidity:5%-90% no condense

Size (LxWxH)

145*70*43(mm)

Weight

0.3kg

Certification

FCC CE ROHS

1200Mbps Passthrough Powerline PoE Injector Adapter With Power Socket 0

Overview


The LNK-P1200ST Smart Link HomePlug AV2 1200Mbps Ethernet Adapter embarks on a concept of No New Wires data communications, and it transforms your in-house powerline into a networking infrastructure. It provides SmartLink Plus coupling to the Line-Neutral pair and the Line-Ground pair of the AC mains. It successfully reduce "dead spot", increase throughput and increase network coverage within a home. Surf the Internet and share data at the speed up to 1Gbps PHY rates through powerline with AC outlet design, it's Convenient for the end user.

LNK-P1200ST Smart Link HomePlugAV2 engine is a Qualcomm Atheros QCA7500 chipset . It features faster processing power, Fast Ethernet host interfaces and an enhanced analog front end. The solution is compliance with IEEE1901 , Homeplug AV and Homeplug AV2, hence allowing hassle free compatibility with existing Homeplug AV2 devices and other suppliers of IEEE1901 PLC (Powerline Line Communication) devices.
