Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-P1200W
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Operating Temperature: |
-10 ℃ To 40 ℃; |
Storage Temperature: |
- 40 ℃ -- 70 ℃; |
Storage Humidity: |
5%~95% Non-condensing |
Dimension:: |
70mm×43mm×126mm（L×W×H） |
Operating Temperature: |
-10 ℃ To 40 ℃; |
Storage Temperature: |
- 40 ℃ -- 70 ℃; |
Storage Humidity: |
5%~95% Non-condensing |
Dimension:: |
70mm×43mm×126mm（L×W×H） |

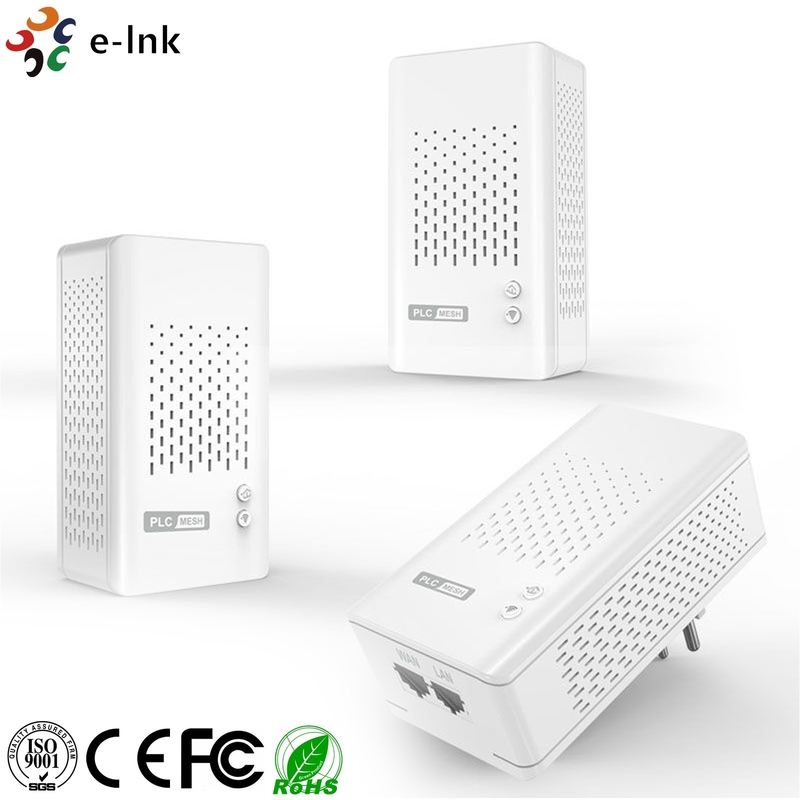

1200Mbps Wireless 2 Port Powerline Adapter Kit ROHS FCC CE Approved
1200Mbps Passthrough Powerline Adapter with Power Socket
Advantages
l The network upgrade from 100Mbps to Gigabit Ethernet, the performance and user experience have been improved.
l Wall-plug design, just plug and play. Let you build a network wherever you have a power outlet.
l Automatic connection between sub-machine and main router.
l Pre-paired configuration and parental control system make them connect each other automatically, no need any configuration, allowing for easy management.
l No more dead zones. Multi-hopping and smart roaming features bring no dead spot network, enjoy Wi-Fi every corner in your home.
l MIMO PLC transmission technology brings you more stable and faster network.
Technical Indexes
|
Model |
LNK-P1200W |
|
Interface |
2 * Ethernet RJ45 4 * High Gain Antenna (Integrated) |
|
Protocol Standard |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE802.11 a, b, g, n, ac(2.4 / 5 GHz concurrent) , IEEE 802.3az, IEEE 802.1p Auto MDI/X Wi-Fi Alliance HomePlug AV |
|
Transmission Rates |
Wi-Fi 867 Mbps (2x2 MIMO/ 5.8 GHz), Wi-Fi 300 Mbps (2x2 MIMO/ 2.4 GHz) Ethernet 2*10/100/1000 Mbps Powerline 1200Mbps |
|
Modulation Type |
Powerline OFDM - 4096/1024/256/64-QAM, QPSK, BPSK Wi-Fi DSSS (IEEE 802.11b) • Wi-Fi OFDM (IEEE 802.11a, g, n, ac) • Wi-Fi 32 |
|
LED Display Light |
PLC light (Multi) Wi-Fi light (Multi) |
|
Transmission Band |
2MHz–68MHz |
|
Max. Supported Clients |
2.4GHz wireless up to 50 5.8GHz wireless up to 50 |
|
Security |
WPA/WPA2 WPS PIN, WPS PBC Wi-Fi Time Schedule 128 Bit AES |
|
Range |
Powerline up to 500M Wi-Fi up to 300M |
|
Button |
PLC (Default Reset) Wi-Fi (WPS / Default Reset) |
|
Power consumption |
Maximum W/A: 12W ; Typical W/A: 9W ; Stand-By W/A: 3W |
|
Operating Voltage Range |
AC 100V-240V 50/60Hz |
|
operating environment |
Working temperature: -10 ℃ to 40 ℃; Save temperature: - 40 ℃ -- 70 ℃; Working humidity: 10%-90% non-condensing state; Storage humidity: 5%-95% non-condensing state |
|
Size |
70mm×43mm×126mm(L×W×H) |
|
Weight |
0.35kg |
Overview
LNK-P1200W series wireless power adapter has powerline communication and wireless router functions. It is an ideal choice for small and medium enterprises, hotel, family villas, and residential network ideal choice.
