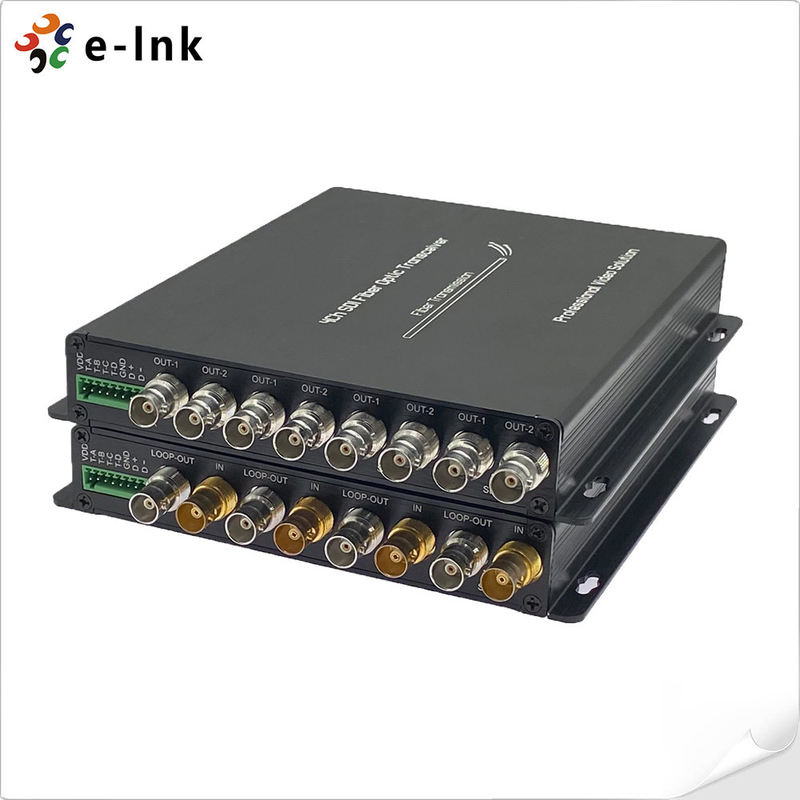

4 Channels SDI Fiber Converter With Tally And RS485 Single Mode 20KM

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-3GSDI-4V1D4T

Payment & Shipping Terms

Minimum Order Quantity: 1 pair

Price: Negotiation

Packaging Details: SDI Fiber Converter Standard Export Package

Delivery Time: 5-12 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability: 1000 pairs/month

Get Best Price
Contact Now
Specifications
Highlight:

4 Channels SDI Fiber Converter

,

Single Mode 20KM SDI Fiber Converter

,

Tally RS485 SDI To Optical Fiber Converter

Keyword:
3G SDI Converter 4 Channels
Data Type:
Tally & RS485
SDI Input:
4 Channels
Power Input:
12VDC 1A
Transmission Distance:
20KM
Operating Temperature:
-10℃~+55℃
Keyword:
3G SDI Converter 4 Channels
Data Type:
Tally & RS485
SDI Input:
4 Channels
Power Input:
12VDC 1A
Transmission Distance:
20KM
Operating Temperature:
-10℃~+55℃
Description
4 Channels SDI Fiber Converter With Tally And RS485 Single Mode 20KM

4 Channels SDI Fiber Converter With Tally And RS485 Single Mode 20KM



4 Channels 3G SDI To Optical Fiber Converter With Tally And RS485 Single Mode 20KM



3G-SDI Fiber Extender Advantages

► 4 channel 3G/HD-SDI video transmission over optic fiber/s

► Directly compatible with 3G/HD-SDI camera systems and support 4Ch Loop output

► Long transmission up to 20 km (12.5miles) (Other distance Optional)

► Support 1Ch backward RS485 and 4Ch Tally

SDI Video over Fiber Converter Technical Indexes

SDI Input

Input number: 4

Reflection loss: >15DB

Equilibrium: 0-150m @3Gb/s

Connector: BNC

Optics

Channel: 1

Type: single-mode

Transmission distance: 20km (Other distance Optional)

Connector: FC/UPC (SC, LC, ST optional)

SDI Output

Output number:4

Connector: 75Ω BNC

Data

1Ch RS-485 (full/half duplex) and support NRZ, RZI and Manchester

Max. 57600bps for RS485

4Ch Tally: A, B , C, D

Power and environmental indication

Operating temperature: -10℃~+55℃

Power Input: 1A@12VDC

SDI video format supports

625/25PAL; 525/29.97NTSC; 525/23.98NTSC; 720p50; 720p59.94;

1080P23.98/24/30/50/60; 1080i 23/24/30/50/59.94;

3G SDI Fiber Converter with Tally & RS485 Overview

LNK-3GSDI-4V1DT Series supports 4-channel HD/3G-SDI standard high-definition video signal and RS485 and Tally signal transmitted via single fiber optical cable. E-link 3G-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P 3G-SDI signal. E-link 3G-SDI Fiber Converters can transmit 4-Ch 3G-SDI Video signal through a single optical fiber, and it support Loop output, 4Ch Tally and backwards RS485. The video quality is non-compressed broadcast level. It’s widely used in broadcast field.

4 Channels SDI Fiber Converter With Tally And RS485 Single Mode 20KM 0

4 Channels SDI Fiber Converter With Tally And RS485 Single Mode 20KM 1

4-Channels 3G SDI Fiber Transmitter Receiver Ordering Information

LNK-HDSDI-4V1D4T

4-Ch HD-SDI Video with Loop output + 1Ch backward RS485 + 4Ch Tally, SM 20km, FC, including 1 transmitter & 1 receiver, used by pairs

LNK-3GSDI-4V1D4T

4-Ch 3G-SDI Video with Loop output + backward RS485 + 4Ch Tally, SM 20km, FC, including 1 transmitter & 1 receiver, used by pairs
