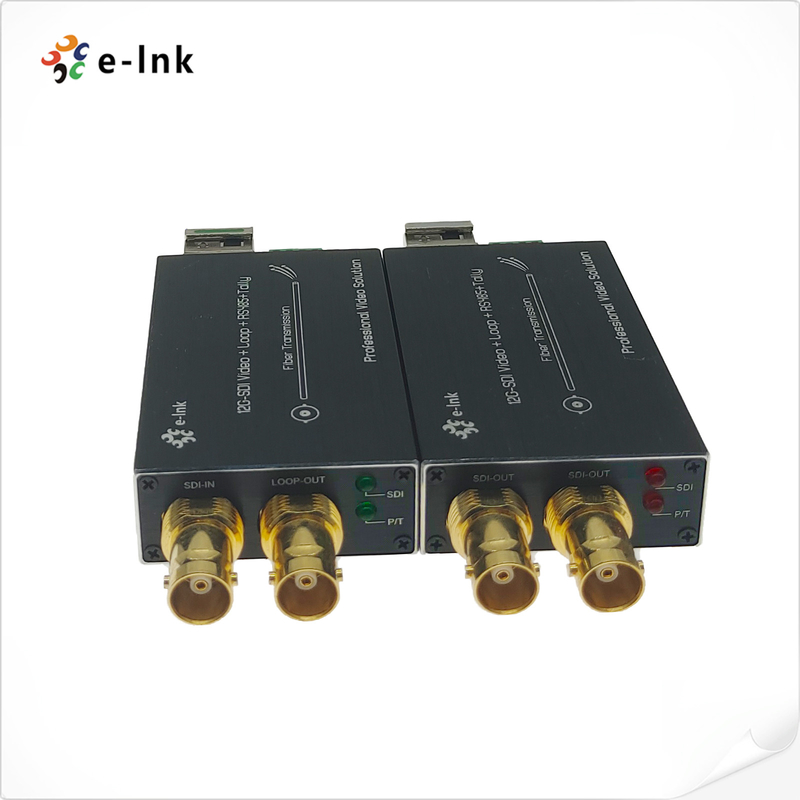

Mini 12G-SDI Fiber Converter 4K@60Hz Tally & RS485 80km Hot-Swappable

Mini 12G-SDI to Fiber Converter with Tally and RS485  Supports hot swapping and hot plugging

SDI Fiber Extender Overview:

Features

• Multi-Channel Audio Support

  • Each 12G-SDI channel carries 8 embedded audio tracks, enabling synchronized audio-video transmission for professional broadcast applications

• Intelligent Signal Processing

  • Features automatic cable equalization and integrated reclocking technology that locks to SMPTE data rates from 270Mbps to 11.88Gbps, ensuring optimal signal integrity

• Comprehensive Standards Compliance

  • Supports full SMPTE standards including ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD) and ST-259 (SD) for universal compatibility

• Extended Transmission Performance

  • Enables flexible transmission distances from minimum 10km to maximum 80km using advanced WDM/CWDM/DWDM technology with superior optical dynamic range

• Broadcast Control System

  • Integrates tally signaling and backward RS485 control, supporting real-time camera status indication and remote device management in production environments

• Maintenance-Optimized Design

  • Supports hot-swappable operation and hot-pluggable connectivity, enabling system maintenance and component replacement without service interruption

• Ultra HD Video Support

  • Delivers uncompressed broadcast-quality transmission for 4K UHD (3840×2160@60Hz) and legacy formats including 1080P, 1080i, and 720P resolutions

• Universal Camera Compatibility

  • Maintains direct compatibility with 12G/6G/3G-SDI camera systems, ensuring seamless integration with both current and legacy broadcast equipment

Application Scenarios

• Mobile Broadcast Productions
  Enables ultra-high-definition signal transmission for outside broadcast vehicles and portable production setups, supporting 12G-SDI camera feeds with tally control and RS485 camera management in space-limited installations

• Live Event Coverage
  Facilitates compact camera integration for sports events and concert productions, delivering 4K@60Hz signals with embedded multi-channel audio and real-time tally indication through miniaturized fiber links

• Electronic News Gathering
  Supports field news production systems with compact form factor, transmitting 12G-SDI camera signals with tally data and camera control for rapid deployment scenarios

• Studio Camera Systems
  Enables space-efficient installation in television studios and production control rooms, providing 4K signal extension with tally signaling and equipment control capabilities

• Aerial Broadcasting Applications
  Supports drone broadcasting systems and helicopter news coverage, offering lightweight fiber transmission with camera control and status monitoring for aerial camera platforms

• Medical Imaging Networks
  Provides high-resolution video transmission for surgical microscopy and medical imaging systems, ensuring signal reliability in space-constrained medical environments

• Education & Training Facilities
  Enables compact production systems for university broadcasting programs and training centers, supporting professional 4K production with integrated control features

Technical Indexs

Ordering Information

Application Display Disgram
