Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE,FCC,RoSH
Model Number: LNK-WP-IPE101
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: negotiate
Packaging Details: Industrial PoE Switch Standard Export Packages
Delivery Time: 3-6working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000pcs/month
PoE Input Port: |
1 X 10/100/1000Base-TX RJ-45, M25 X 1.5 Cable Glands |
PoE Output Port: |
1 X 10/100/1000Base-TX RJ-45, M25 X 1.5 Cable Glands |
Transmission Distance: |
Each Extender Extends By 100m, Max 3 Grade Cascade, Total 400m. |
Dimensions: |
195 X 75 X 46 Mm |
Mounting Options: |
Wall-mount |
Environment: |
Outdoor IP65 |
PoE Input Port: |
1 X 10/100/1000Base-TX RJ-45, M25 X 1.5 Cable Glands |
PoE Output Port: |
1 X 10/100/1000Base-TX RJ-45, M25 X 1.5 Cable Glands |
Transmission Distance: |
Each Extender Extends By 100m, Max 3 Grade Cascade, Total 400m. |
Dimensions: |
195 X 75 X 46 Mm |
Mounting Options: |
Wall-mount |
Environment: |
Outdoor IP65 |

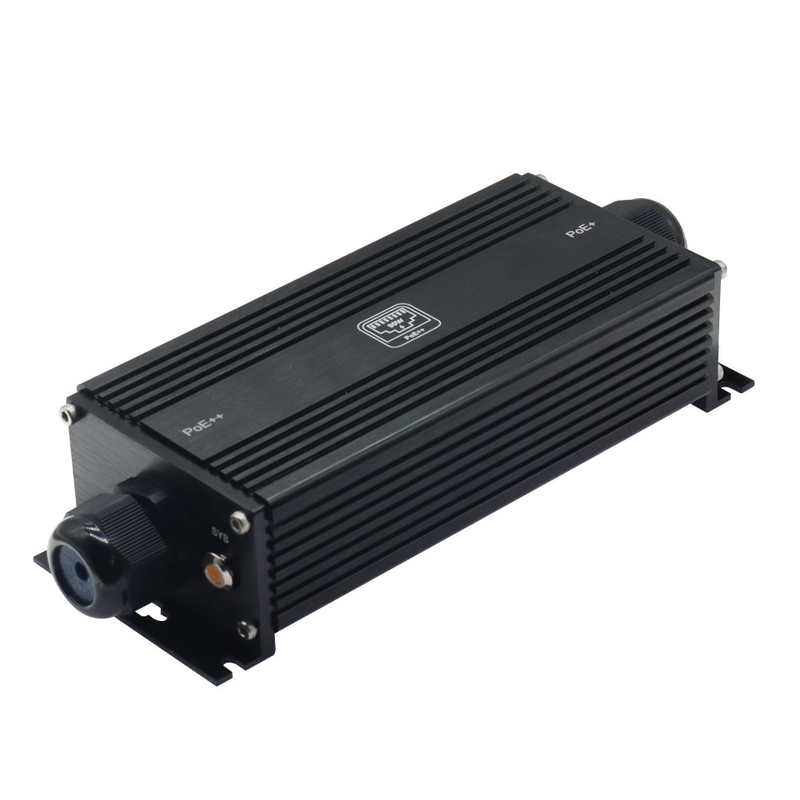

IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 1 x Output)
IP67 Waterproof Industrial Gigabit PoE Extender Advantages
► IP67-rated aluminum case
► 10/100/1000Mbps Ethernet Ports
► All ports support IEEE 802.3af/at/bt standards
► 1 x Input, 1 x Output
► Enables 100-meter extension of Ethernet connectivity with PoE
► Wall-mountable design
► Wide operating temperature range: -40°C to 80°C
► No external power cable required for installation
► Plug-and-play functionality
► Supports 2K MAC address table for connecting more
► 10kB jumbo frame support in 1000Mbps full-duplex mode
Overview
LNK-WP-IPE101 is an industrial-grade IP67-rated Gigabit PoE Extender (1-in 1-out, 90W) that utilizes
Power over Ethernet technology. It extends 1000Mbps Ethernet signals up to 100 meters, significantly
increasing transmission distance while providing standard PoE power supply of 50-57V to communication devices.
Featuring industrial-grade housing and waterproof terminal design with IP67 protection rating, this extender
operates within a wide temperature range of -40°C to 80°C, ensuring reliable performance in harsh environments.
It is ideally suited for security surveillance and network engineering applications.
Technical Indexes
| Ethernet Port | |
| PoE Input Port | 1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands |
| PoE Output Port | 1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands |
| Cascade Connection | Support 3 grade |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af/at/bt |
| PoE Power Supply Type | Mid-span and End-span |
| PoE Pin Assignment | 1/2(+), 3/6(-), 4/5 (+), 7/8 (-) |
| Input Voltage | IEEE802.3 bt 90W |
| PoE Output Power | Maximum 65W |
| Single Port PoE Output | Maximum 60W |
| Switch Property | |
| Standards | IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet |
| Forwarding Modes | Store and Forward |
| Transmission Distance | Each extender extends by 100m, max 3 grade Cascade, total 400m. |
| MAC Table | 2K |
| Switching Capacity | 6Gbps |
| Packet Forwarding Rate | 4.46Mpps |
| Flow Control | IEEE 802.3x pause frame for full duplex, Back pressure for half duplex |
| Jumbo Frame | 10K bytes |
| Environment | |
| Surge Immunity | 6KV, Standard: IEC |
| ESD Protection | 6kV Contact Discharge; 8kV Air Standard: IEC 61000-4-2 |
| Protection Level | IP 67 |
| Explosion-Proof Rating | IK10 |
| Operating Temperature | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Operating Humidity | 0~95% (non-condensing) |
| Physical Parameter | |
| Dimensions (WxDxH) | 195 x 75 x 46 mm |
| Weight | 0.6 kg |
| Casing | Aluminum Case |
| Mounting Options | Wall-mount |
| Certifications | |
| Certifications | CE, FCC, RoHS |
Ordering Information
| Model | Description |
| LNK-WP-IPE101 | IP67 Waterproof Industrial Gigabit PoE Extender 1 x Input 1 x Output |
| Mounting Options | Wall Mount Bracket is included. |
