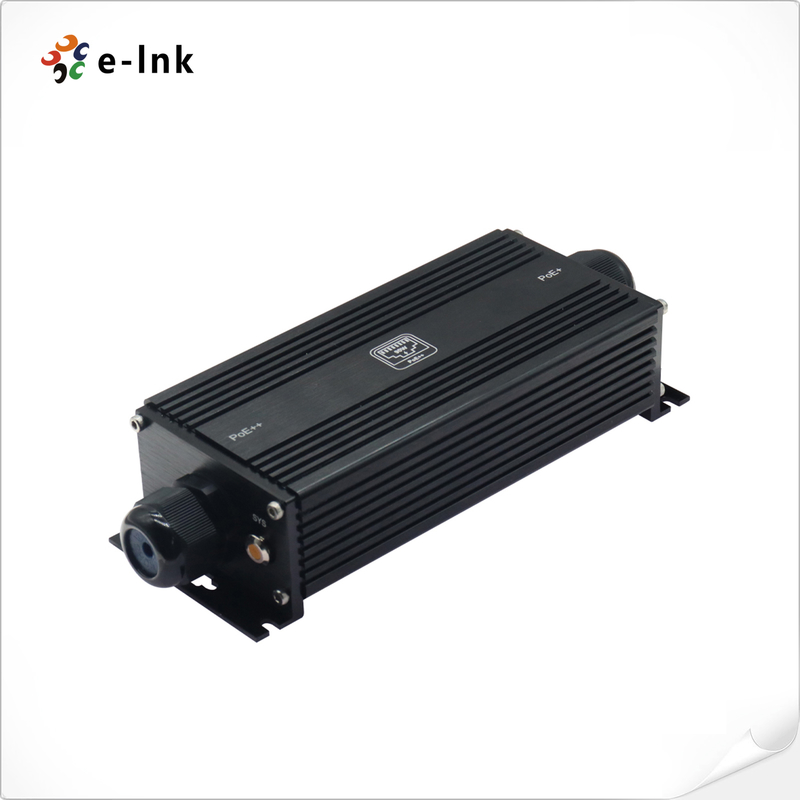

IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 1 x Output)

Name: IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 1 x Output)
Brand: E-link China Technology Co.,LTD
SKU: LNK-WP-IPE101
Price: 57.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE, FCC, RoHS

Model Number: LNK-WP-IPE101

Document: E-link LNK-WP-IPE101 Waterp....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

PoE Input Port:	1 X 10/100/1000Base-TX RJ-45, M25 X 1.5 Cable Glands	PoE Output Port:	1 X 10/100/1000Base-TX RJ-45, M25 X 1.5 Cable Glands
PoE Standard:	IEEE 802.3af/at/bt	PoE Pin Assignment:	1/2(+), 3/6(-), 4/5 (+), 7/8 (-)
Operating Temperature:	-40°C To 80°C (-40°F To 176°F)	Dimensions (WxDxH):	195 X 75 X 46 Mm
Mounting Options:	Wall-mount

PoE Input Port:	1 X 10/100/1000Base-TX RJ-45, M25 X 1.5 Cable Glands
PoE Output Port:	1 X 10/100/1000Base-TX RJ-45, M25 X 1.5 Cable Glands
PoE Standard:	IEEE 802.3af/at/bt
PoE Pin Assignment:	1/2(+), 3/6(-), 4/5 (+), 7/8 (-)
Operating Temperature:	-40°C To 80°C (-40°F To 176°F)
Dimensions (WxDxH):	195 X 75 X 46 Mm
Mounting Options:	Wall-mount

Description

IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 1 x Output)

Advantages

► IP67-rated aluminum case

► 10/100/1000Mbps Ethernet Ports

► All ports support IEEE 802.3af/at/bt standards

► 1 x Input, 1 x Output

► Enables 100-meter extension of Ethernet connectivity with PoE

► Wall-mountable design

► Wide operating temperature range: -40°C to 80°C

► No external power cable required for installation

► Plug-and-play functionality

► Supports 2K MAC address table for connecting more

► 10kB jumbo frame support in 1000Mbps full-duplex mode

Overview

LNK-WP-IPE101 is an industrial-grade IP67-rated Gigabit PoE Extender (1-in 1-out, 90W) that utilizes Power over Ethernet technology. It extends 1000Mbps Ethernet signals up to 100 meters, significantly increasing transmission distance while providing standard PoE power supply of 50-57V to communication devices.

Technical Indexes

Ethernet Port
PoE Input Port	1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands
PoE Output Port	1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands
Power over Ethernet
PoE Power Supply Type	Mid-span and End-span
PoE Pin Assignment	1/2(+), 3/6(-), 4/5 (+), 7/8 (-)
PoE Output Power	Maximum 65W
Switch Property
Transmission Distance	Each extender extends by 100m, max 3 grade Cascade, total 400m.
Jumbo Frame	10K bytes
Environment
Surge Immunity	6KV, Standard: IEC
ESD Protection	6kV Contact Discharge; 8kV Air Standard: IEC 61000-4-2
Protection Level	IP 67
Operating Temperature	-40°C to 80°C (-40°F to 176°F)
Physical Parameter
Dimensions (WxDxH)	195 x 75 x 46 mm
Weight	0.6 kg
Casing	Aluminum Case
Mounting Options	Wall-mount

Application

IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 1 x Output) 0

IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 1 x Output) 1

Ordering Information

Model	Description
LNK-WP-IPE101	IP67 Waterproof Industrial Gigabit PoE Extender 1 x Input 1 x Output
Mounting Options	Wall Mount Bracket is included.
