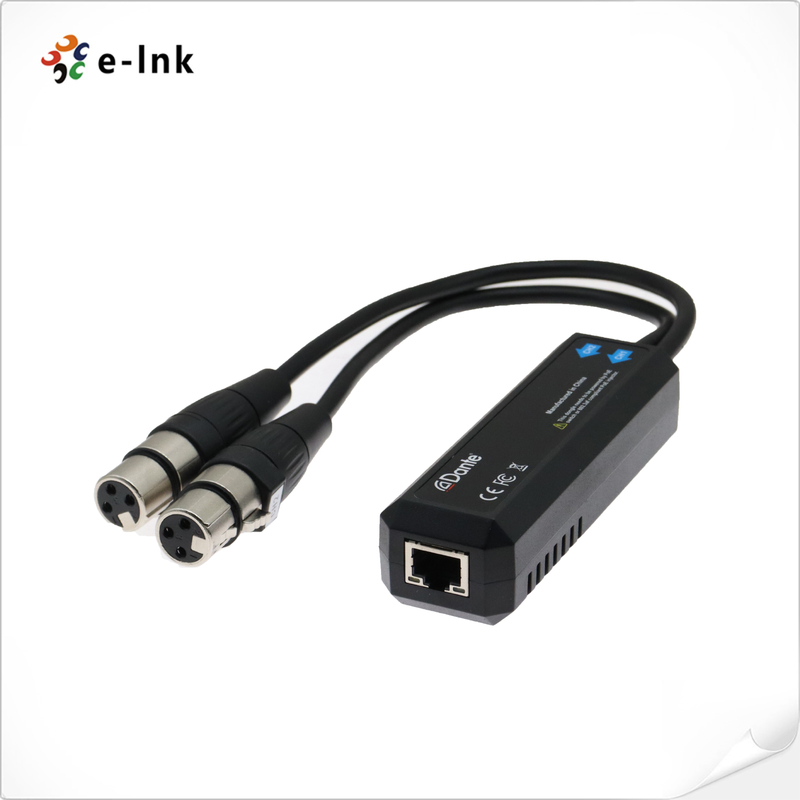

Dante 2Ch Analog Input Dongle Converter

Name: Dante 2Ch Analog Input Dongle Converter
Brand: E-link China Technology Co.,LTD
SKU: LNK-DAN-D5
Price: 395.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE

Model Number: LNK-DAN-D5

Document: E-link LNK-DAN-D5 Dante 2Ch....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Weight(1U):	145g	Case Size:	114 X 30 X 28 Mm
Power:	DC 5V/1A	Cable Length:	802.3af PoE
XLR Port:	2 X XLR Port, Connect Input Device

Weight(1U):	145g
Case Size:	114 X 30 X 28 Mm
Power:	DC 5V/1A
Cable Length:	802.3af PoE
XLR Port:	2 X XLR Port, Connect Input Device

Description

Dante 2Ch Analog Input Dongle Converter

Product Advantages

► Plug and play.

► 24-bit audio support

► 2x0 Audio Channels

► Support power via PoE Injector (IEEE802.3af)

Technical Indexes

Port
RJ45 Port	Network communication port. Green light on indicates system is ready Yellow light flash indicates link/data traffic. When click the "Recognize" button (an eye-shaped symbol) on the Dante controller, Green light will flash to identify the device.
XLR Port	2 x XLR port, connect input device
Audio
Max signal level	+24 dBu
Frequency Response	20Hz to 20kHz(-/+0.5dB)
Impedance	20k Ohm balanced, 10k Ohm unbalanced
Dynamic Range	>100 dB
Signal to Noise Ratio	>100 dB
THD	<0.01% @+4dBu
Dante
Sample Rate	44.1kHz, 48kHz, 96kHz
Bit Depth	24
Dante Device latency	1,2 or 5ms (configurable using Dante Controller)
Type	Analog 2x0
General
Operation Temperature	-5 to +55℃ (+23° to +131°F)
Storage Temperature	-25 to +70℃ (-13° to +158°F)
Power	802.3af PoE
Power Consumption	3.15W(Max)
Dimension (WHD)	114 x 30 x 28 mm
Cable length	30cm
Net Weight	145g

Overview

The LNK-DAN-D5 2Ch Analog Input Dongle Converter can connects to your Dante network and supports Analog 2X0 channels audio, allowing receive analog audio signal, convert the analog signal to digital signal and transmit through Dante network.

Ordering Information

Model	Description
LNK-DAN-D5	Dante 2Ch Analog Input Dongle Converter
