IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 1 x Output)

IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 1 x Output)

LNK-WP-IPE101

Overview

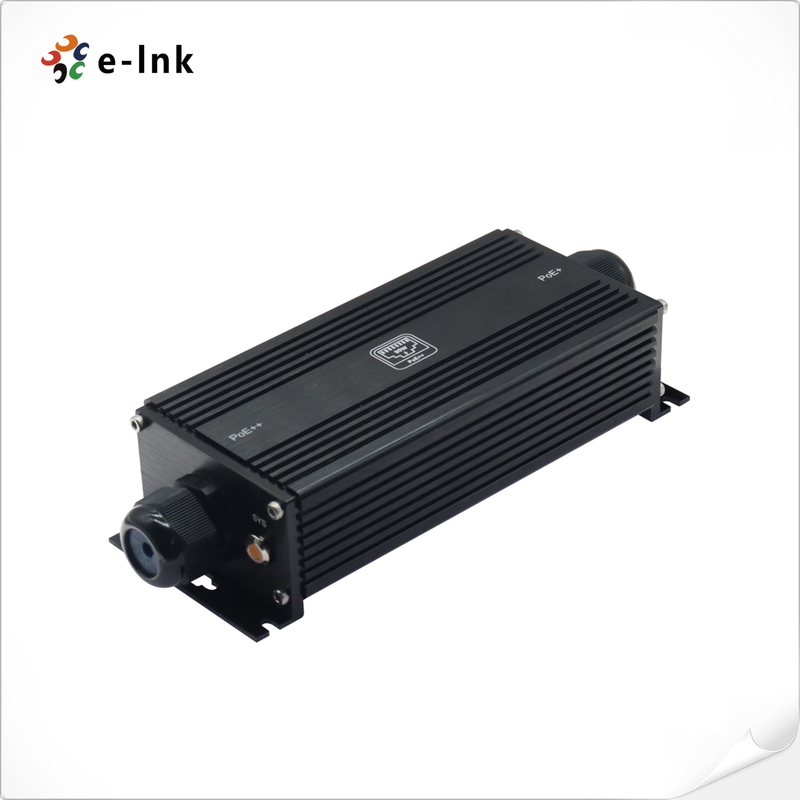

LNK-WP-IPE101 is an industrial-grade IP67-rated Gigabit PoE Extender (1-in 1-out, 90W) that utilizes Power

over Ethernet technology. It extends 1000Mbps Ethernet signals up to 100 meters, significantly increasing

transmission distance while providing standard PoE power supply of 50-57V to communication devices.

Featuring industrial-grade housing and waterproof terminal design with IP67 protection rating, this extender

operates within a wide temperature range of -40°C to 80°C, ensuring reliable performance in harsh environments.

It is ideally suited for security surveillance and network engineering applications.

Features

• IP67-rated aluminum case
• 10/100/1000Mbps Ethernet Ports
• All ports support IEEE 802.3af/at/bt standards
• 1 x Input, 1 x Output
• Enables 100-meter extension of Ethernet connectivity with PoE
• Wall-mountable design
• Wide operating temperature range: -40°C to 80°C
• No external power cable required for installation
• Plug-and-play functionality
• Supports 2K MAC address table for connecting more
• 10kB jumbo frame support in 1000Mbps full-duplex mode

Technical Indexes

Application

Ordering Information
