Dante Surface Mount 2x2 Dante/AES67 Interface
Dante Surface Mount 2x2 Dante/AES67 Interface
Dante Surface Mount 2x2 Dante/AES67 Interface
Dante Surface Mount 2x2 Dante/AES67 Interface
Dante Surface Mount 2x2 Dante/AES67 Interface
Dante Surface Mount 2x2 Dante/AES67 Interface

Dante Surface Mount 2x2 Dante/AES67 Interface

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, FCC, RoHS

Model Number: LNK-DAN-B202

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiated

Packaging Details: standard export package

Delivery Time: 5-12working days

Payment Terms: T/T,PayPal

Supply Ability: 1000pcs/mouth

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:
Power Supply:
DC 5V/1A
Bandwidth:
5.4Gbps-10.2G
Output Port:
1 X HDMI
Compatibility:
HDMI 2.0/HDCP2.2
Fiber Port:
LC
Power Supply:
DC 5V/1A
Bandwidth:
5.4Gbps-10.2G
Output Port:
1 X HDMI
Compatibility:
HDMI 2.0/HDCP2.2
Fiber Port:
LC
Description
Dante Surface Mount 2x2 Dante/AES67 Interface

Dante Surface Mount 2x2 Dante/AES67 Interface

Dante Surface Mount 2x2 Dante/AES67 Interface Advantage

► 2 analog inputs and 2 analog outputs for line / microphone level.

► Supports adjusting the gain per input from 0 ~ +48dB.

► Output volume control from -60dB to 0dB.

► 48V phantom power per input channel.

► Powered by PoE (IEEE802.3af).

► Supports 44.1k or 48k audio sample rate.

Overview

      The LNK- DAN-B202 is a Dante network audio interface allowing users

to integrate up to 2x2 audio channels of Dante audio into networked AV

systems, each input features a 48Vphantom power option. The product also

supports PoE (IEEE802.3af) power capability and a small form factor that

makes it easy to put Dante connectivity wherever it's needed and it can be

close to the audio source or sink to eliminate the need for costly and

interference-prone analog wiring.

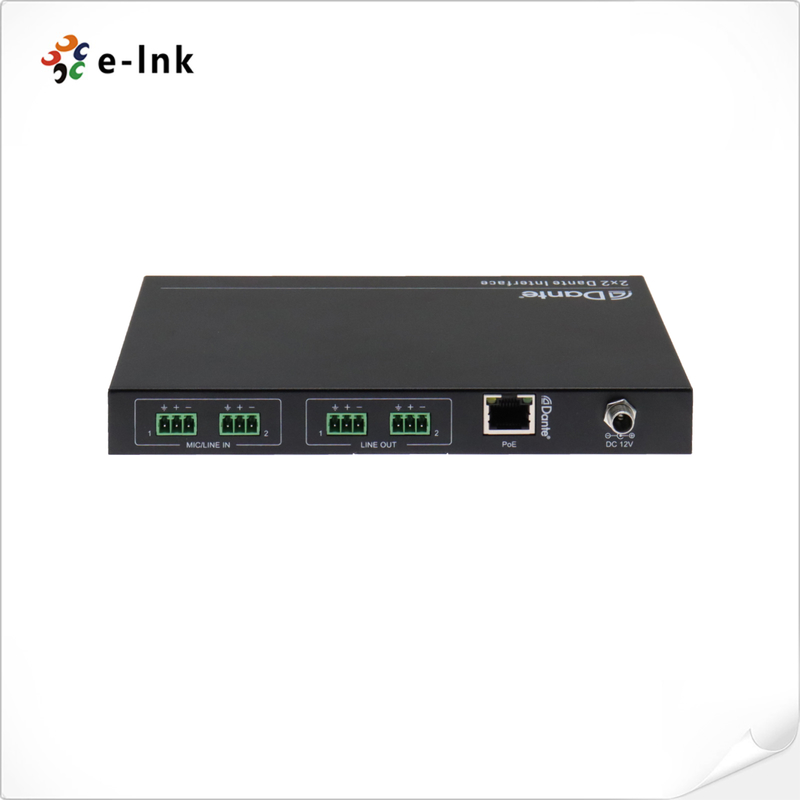

DVI Fiber Extender Picture

Dante Surface Mount 2x2 Dante/AES67 Interface 0

Technical Indexes

Input

Input

(2) MIC/LINE IN

Input Connector

(2) 3-pin Green Terminal Blocks

Phantom Power

48V, software selectable for each input

Output

Output

(2) LINE OUT

Output Connector

(2) 3-pin Green Terminal Blocks

Output Type

Balanced line level with automatic muting on loss of Dante signal

Audio Performance

Gain

Input: 0 ~ +48dB, 6dB per step

Output: -60 ~ 0dB, 1dB per step

Max Level

Input: +18dBu @ 0dB input gain

Output: +18dBu @ 0dB output gain

Input Impendence

>1.8kΩ

Ordering Information

Model

Description

LNK- DAN-B202

Dante Surface Mount 2x2 Dante/AES67 Interface
