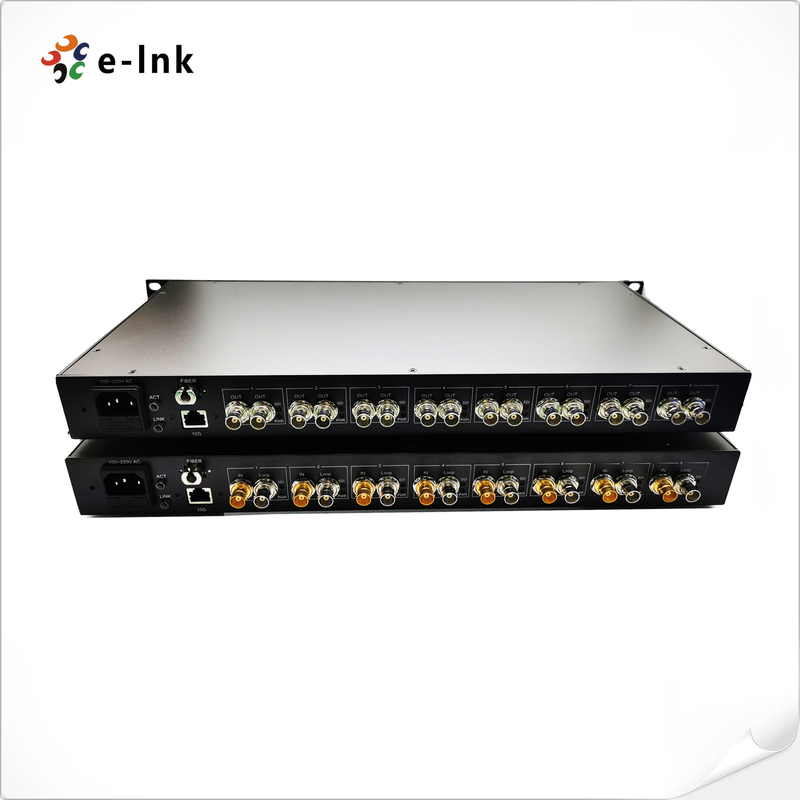

8Ch 3G-SDI + 1Ch 10G Ethernet over Fiber Extender

Name: 8Ch 3G-SDI + 1Ch 10G Ethernet over Fiber Extender
Brand: E-link China Technology Co.,LTD
SKU: LNK-3G8V10GE
Price: 594.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE

Model Number: LNK-3G8V10GE

Document: LNK-3G8V10GE 8Ch 3G-SDI + 1....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Operating Temperature::	-20℃～+70℃	Power Input:	1A@12VDC
Dimensions (LxWxH):	483 X 270 X 45mm (19inch 1U)	Weight:	8KG/pair

Operating Temperature::	-20℃～+70℃
Power Input:	1A@12VDC
Dimensions (LxWxH):	483 X 270 X 45mm (19inch 1U)
Weight:	8KG/pair

Description

8Ch 3G-SDI + 1Ch 10G Ethernet over Fiber Extender

Product Advantages

► 8Ch 3G-SDI/ASI video with embedded audio and 10G Ethernet over one fiber

► Compatible with HD-SDI, SD-SDI, DVB-AST

► Bandwidth range from 19.4Mb/s to 2.97Gb/s

► SMPTE 424M (2.97Gb/s) clock recovery

► Support all popular standards for digital video transport such as SMPTE 424M, SMPTE 292M, and SMPTE 259M, SMPTE 297M working at 3G-SDI, HD-SDI, SD-SDI, ASI respectively

► Built-in CWDM system, SFP modules for each path

► Support automatic cable equalization based on the data rate detected

► LED status indicators monitor the critical parameters

Technical Indexes

Fiber Optical interface
Fiber interface	Simplex LC
Transmission distance	20Km
Wavelength	1310nm/1550nm
Video
Video interface	BNC
Video input/output impedance	75Ω
Video input/output voltage	Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
Video Bits Rate	Max 3.2Gb/s
Differential gain (10%～90% APL)	<1%
Video Input	8 Channel with Loop Out on TX
Video Output	8 Channel with Loop Out on RX
Ethernet
Interface	1 x 10G/5G/2.5G/1G/100BASE-T RJ45
Working mode	Auto-negotiation by default
Electrical
Power Input	100VAC to 220VAC
Power consumption	<12W
Mechanical
Dimensions (LxWxH)	483 x 270 x 45mm (19inch 1U)
Weight	8KG/pair
Casing	Metal Case
Mounting Options	Rack-mount
Environmental
Working Temperature	-20℃～+70℃
Storage Temperature	-40℃～+80℃
Working Humidity	0~95%
MTBF	≥100000 hours

Overview

E-link LNK-3G8V10GE 3G-SDI & Ethernet fiber extender provides transmission of one 3G-SDI channel with 10G Ethernet IP channels over single mode optical cables. This SDI and IP to optical fiber converter enables high optical performance and brilliant HD video processing in real time. IP interfaces can dramatically increase scalability and compatibility with all modern high-end networking systems.

Application

8Ch 3G-SDI + 1Ch 10G Ethernet over Fiber Extender 0

Ordering Information

Model	Description
LNK-3G8V10GE	8Ch 3G-SDI Fiber Converter with 10G Ethernet and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
