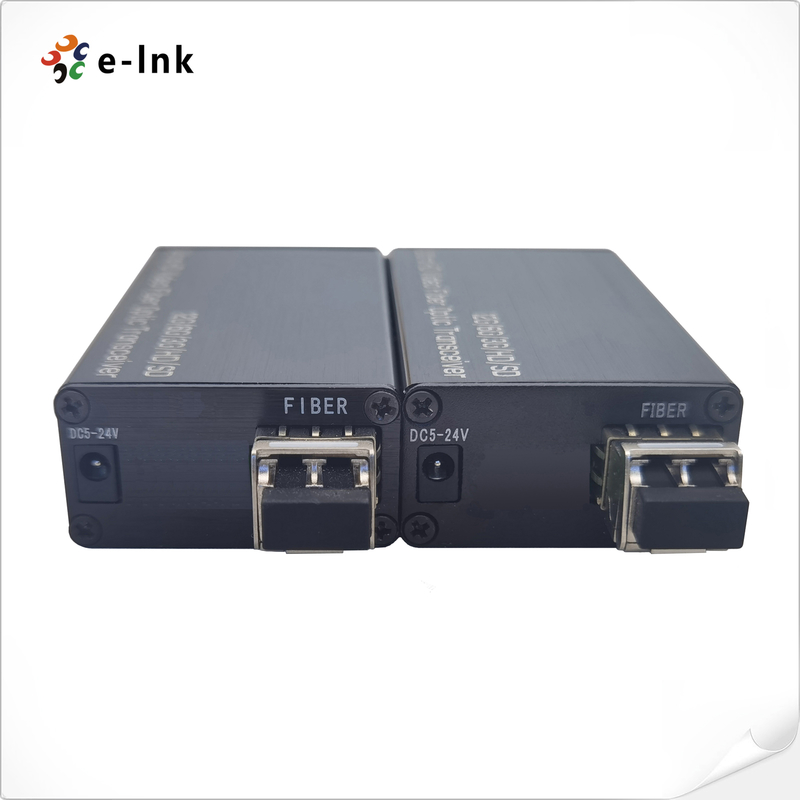

Mini 24G-SDI to Fiber Converter with 24G-SDI 2*LC fiber

Name: Mini 24G-SDI to Fiber Converter with 24G-SDI 2*LC fiber
Brand: E-link China Technology Co.,LTD
SKU: LNK-M24G-1F2-20
Price: 594.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE

Model Number: LNK-M24G-1F2-20

Document: E-link LNK-M24G-1F2-20 Mini....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Dimensions (LxWxH):	80 X 40 X 20 (mm)	Operating Temperature:	-40℃～80℃
Power:	5-15 VDC	Optical Transmission Bandwidth:	270MHz～12GHz
Supported Resolution:	2160p/4k@120,8k@60Hz	Input:	2 X 12G-SDI On BNC

Dimensions (LxWxH):	80 X 40 X 20 (mm)
Operating Temperature:	-40℃～80℃
Power:	5-15 VDC
Optical Transmission Bandwidth:	270MHz～12GHz
Supported Resolution:	2160p/4k@120,8k@60Hz
Input:	2 X 12G-SDI On BNC

Description

Mini 24G-SDI to Fiber Converter with 24G-SDI 2*LC fiber

Product Advantages

► Supports SMPTE ST-2083(24G) ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)

► Integrated Reclocker Locks to SMPTE Rates of 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or Divide-by-1.001 Subrates and 270 Mbps

► Directly compatible with 24G/12G/6G/3G-SDI camera systems

► Terminal block power input for industrial application

► Supports hot swapping and hot plugging

► Full digital non-compression broadcast level transmission;

► super optic dynamic range and free of adjustment;

► fiber optic WDM/CWDM/DWDM technique;

► Supports 2160p/4k@120, 8k@60,1080P,1080I,720P.

Technical Indexes

Formats	Supports UHD-2 or 24G UH D-SDI, SMPTE ST-2083(24G) ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD)
Compatible	Compatible With DVB-ASI and AES10 (MADI)
Input	2 x 12G-SDI on BNC
Fiber Cable	1 x 24G-SDI 2*LC fiber
Output	2x 12G-SDI on BNC
Supported Resolution	HDTV 2160p/4k@120,8k@60, 1080P, 1080I, 720P
Resolution range	2160p/4k@120,8k@60Hz
Input cable specification	≤70m@12G SDI Belden 1694A
Output cable specification	≤70m@12G SDI Belden 1694A
Optical transmission bandwidth	270MHz～12GHz
Power	5-15 VDC
Power Consumption	2 W (Max.)
Dimensions (LxWxH)	80 x 40 x 20 (mm)
Storage Temperature	-40℃～80℃
Operating Temperature	-40℃～85℃

Overview

LNK-M24G-1F2 Series Mini-type 24G-SDI Fiber Converter supports 2-channel 12G Video (audio embedded) transmitted via fiber optical cable. E-link 24G Video over Fiber Converters includes one transmitter and one receiver for HDTV 2160p/4k@120, 8k@60, 1080P,1080I, 720P.

Application

► Video production

► Broadcasting

► Camcorder

► Studio-to-studio

► Post-production

► Live events

► Medical imaging displays

► Mobile video

► 24G/12G/6G/3G/HD/SD-SDI routing

► 24G/12G/6G/3G/HD/SD-SDI CCTV

Ordering Information

Model	Description
LNK-M24G-1F2-20	Mini-type 24G-SDI to Fiber Converter, 2Ch 12G-SDI Video, 124G SFP(2LC) Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
