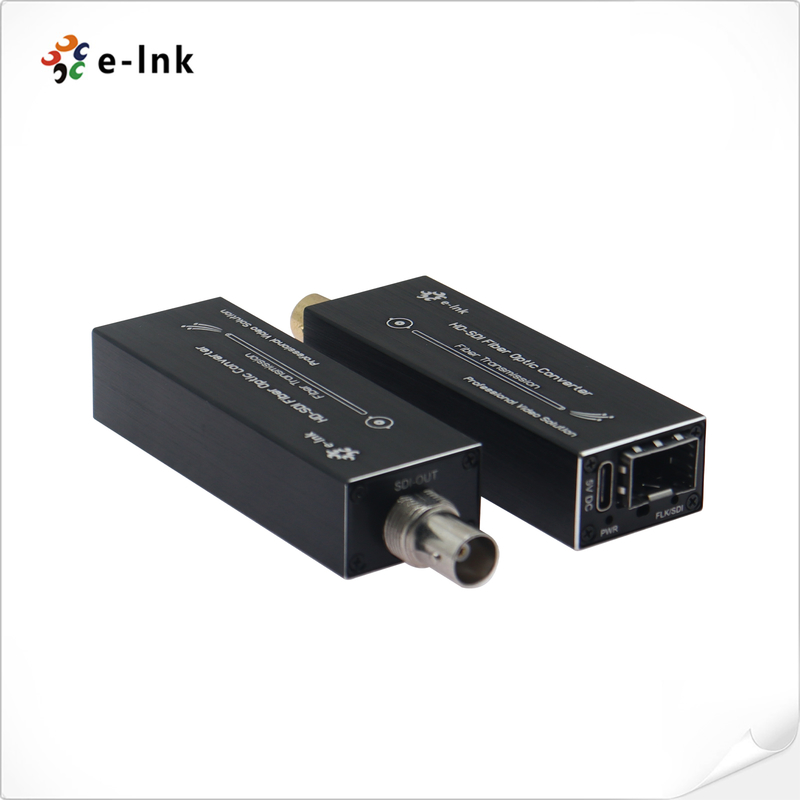

Mini HD-SDI over Fiber Extender with Hot Swap and Hot Plug

Name: Mini HD-SDI over Fiber Extender with Hot Swap and Hot Plug
Brand: E-link China Technology Co.,LTD
SKU: LNK-MHD Series
Price: 197.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE,FCC,RoHs

Model Number: LNK-MHD Series

Payment & Shipping Terms

Minimum Order Quantity: 1pair

Price: $25-369

Packaging Details: SDI Fiber Converter standard export package

Delivery Time: 3-6working days

Payment Terms: T/T, Western Union, D/P

Supply Ability: 5000pairs per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                          Mini HD-SDI over Fiber Extender, Hot Plug HD-SDI Fiber Extender


Fiber Interface:	Simplex LC	Transmission Distance:	550m-20Km
Wavelength:	1310nm/1550nm	Video Interface:	BNC
Differential Gain (10%～90% APL)distance::	<1%	Operating Temperature::	-20℃～+70℃
MTBF:	≥100000 Hours

Fiber Interface:	Simplex LC
Transmission Distance:	550m-20Km
Wavelength:	1310nm/1550nm
Video Interface:	BNC
Differential Gain (10%～90% APL)distance::	<1%
Operating Temperature::	-20℃～+70℃
MTBF:	≥100000 Hours

Description

Mini HD-SDI over Fiber Extender with Hot Swap and Hot Plug

Mini HD-SDI over Fiber Extender with Hot Swap and Hot Plug

Mini HD-SDI over Fiber Extender Advantages

► Each channel includes 8-channel audio embedded

► Automatic cable equalization to ensure signal integrity

► Automatic reclocking 270Mbit/s - 1.48Gbit/s

► Directly compatible with HD-SDI camera systems

► Long transmission capability up to 80 km

► Terminal block power input; Hot swap and hot plug;

► Full digital non-compression broadcast level transmission;

► Super optic dynamic range and free of adjustment;

► Fiber optic WDM/CWDM/DWDM technique;

► industry level ultra-broad temperature range (-20℃~+70℃), adaptable to various environments;

Overview

LNK-MHD Series Mini HD-SDI Fiber Extender supports 1-channelHD-SDI Video (audio embedded) signal

transmitted via fiber optical cable. E-link HD-SDI Video over Fiber Converters includes one transmitter and

one receiver for HD-SDI signal. With compact size, it can easily integrate in other devices. It’s widely used

in surveillance and broadcasting area.

Application

Technical Indexes

Fiber Optical interface
Fiber interface	Simplex LC
Transmission distance	550m-20Km
Wavelength	1310nm/1550nm
Video
Video interface	BNC
Video input/output impedance	75Ω
Video input/output voltage	Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
Video Bits Rate	Max 1.48Gb/s
Differential gain (10%～90% APL)	<1%
SDI format support	625/25 PAL
	525/29.97 NTSC, 525/23.98 NTSC
	720p50, 720p59.94
	1080i 23/24/30/50/59.94
Video SDI standard	270Mbps (SD-SDI)
Video SDI standard	1.485Gbps (HD-SDI)
Electrical
Power adaptor	5V DC, Type-C Interface
Power consumption	<3W
LED Indicator
SDI	SDI video
P/T	Power Supply
Mechanical
Dimensions (LxWxH)	79 x 27 x 18 mm
Weight	0.5KG/pair
Casing	Aluminum Case
Mounting Options	Desktop
Environmental
Working Temperature	-20℃～+70℃
Storage Temperature	-40℃～+80℃
Operating humidity	5%~90% non-condensing
Storage humidity	5% ~ 90% non-condensing
MTBF	≥100000 hours

Ordering Information

Model	Description
LNK-MHD-MM	Mini HD-SDI to Fiber Converter, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs
LNK-MHD-20	Mini HD-SDI to Fiber Converter, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
