12G-SDI to Fiber Converter with Gigabit Ethernet and 2Ch Backward RS485

12G-SDI to Fiber Converter with Gigabit Ethernet and 2Ch Backward RS485

12G-SDI to Fiber Converter with Gigabit Ethernet and 2Ch Backward RS485 Advantages

► Each SDI channel includes 8-channel audio embedded

► Automatic cable equalization to ensure signal integrity

► Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)

► Integrated Reclocker Locks to SMPTE Rates of 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or Divide-by-1.001 Subrates and 270 Mbps

► Directly compatible with 12G/6G/3G-SDI camera systems

► Long transmission capability up to 80 km

► Support 2Ch Backwards RS485

► Supports 1Ch 10/100/1000M Ethernet

► Full digital non-compression broadcast level transmission;

► Super optic dynamic range and free of adjustment;

► Fiber optic WDM/CWDM/DWDM technique;

           Supports 4K*2K(3840*2160@60Hz),1080P,1080I,720P.

12G-SDI to Fiber Converter with Gigabit Ethernet and 2Ch Backward RS485 Overview

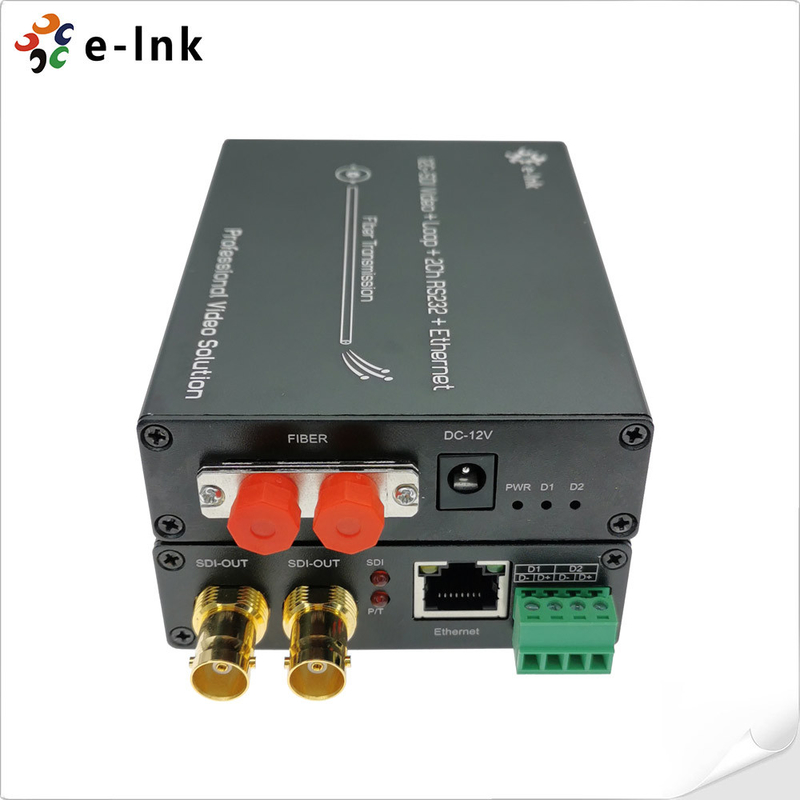

LNK-12GSDI-1V2R1GE Series 12G-SDI Fiber Converter supports 1Ch 12G Video (audio embedded) &1Ch Gigabit Ethernet&2Ch Backward RS485 transmitted via fiber optical cable, and monitor the signal locally over a 12G loop output. E-link 12G Video over Fiber Converters includes one transmitter and one receiver for HDTV 4K*2K(3840*2160@60Hz), 1080P,1080I, 720P.

12G-SDI to Fiber Converter with Gigabit Ethernet and 2Ch Backward RS485 Technical Indexes
