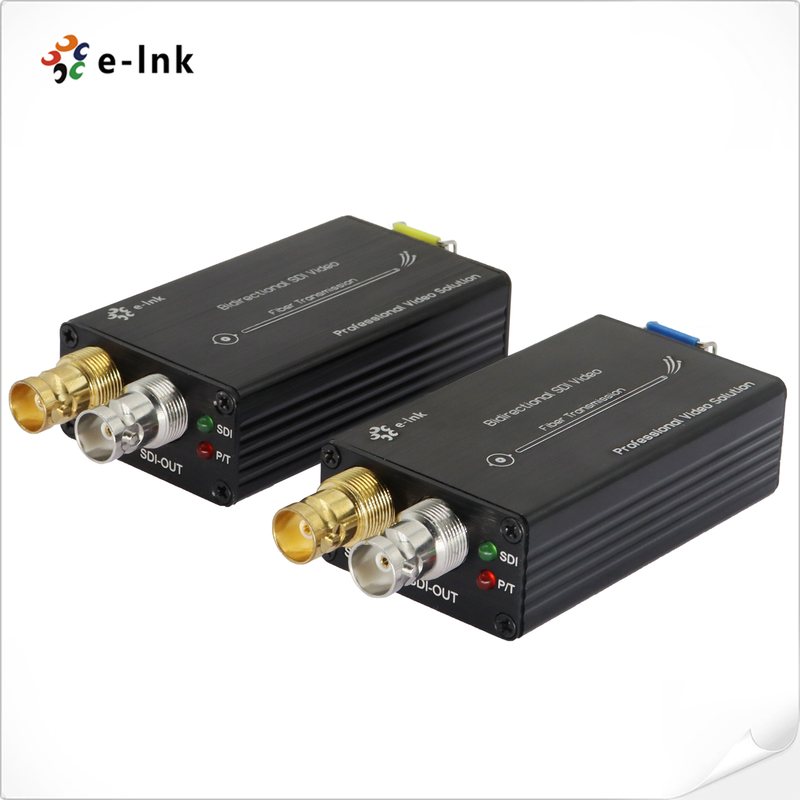

Mini Bi-directional HD/3G-SDI to Fiber Converter

Name: Mini Bi-directional HD/3G-SDI to Fiber Converter
Brand: E-link China Technology Co.,LTD
SKU: LNK-M3G-BI20
Price: 594.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-M3G-BI20

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: Fiber Converter Standard Export Package

Delivery Time: 3-12 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability: 1000 pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Keywords:	Fiber Converter	Operating Temperature:	-20℃～+70℃
Dimensions (LxWxH):	80 X 40 X 20 Mm	Consumption:	<5W
MTBF:	≥100000 Hours	Weight:	0.8KG/pair

Keywords:	Fiber Converter
Operating Temperature:	-20℃～+70℃
Dimensions (LxWxH):	80 X 40 X 20 Mm
Consumption:	<5W
MTBF:	≥100000 Hours
Weight:	0.8KG/pair

Description

Mini Bi-directional HD/3G-SDI to Fiber Converter

Mini Bi-directional HD/3G-SDI to Fiber Converter Advantages

► Each channel includes 4-channel audio embedded;

► Automatic cable equalization, used for all rate below 3.2 Gb/s (Belden 1694A);

► Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s

► Directly compatible with HD-SDI camera systems

► Long transmission capability up to 80 km

► Hot swap and hot plug;

► Handle all Pathological patterns, fully digital non-compression broadcast level transmission;

► LED Status Indication to monitor the working conditions;

► Super optic dynamic range and free of adjustment;

► Industry level ultra-broad temperature range (-20℃~+70℃), adaptable to various environments;

Mini Bi-directional HD/3G-SDI to Fiber Converter Overview

LNK-M3G-BI20 Series Mini-type 3G/HD-SDI Fiber Converter supports 1-Channel Bi-directional 3G/HD-SDI Video (audio embedded) via fiber optical cable. E-link 3G/HD-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P 3G/HD-SDI signal. Handle all Pathological patterns, fully digital non-compression broadcast level transmission. It’s widely used in security system, video conference, broadcasting and live Events etc.

Mini Bi-directional HD/3G-SDI to Fiber Converter Technical Indexes

Fiber Optical interface
Fiber interface	Simplex LC
Transmission distance	0-20Km (Other distance available)
Wavelength	1310nm/1550nm
Video
Video interface	BNC
Video input/output impedance	75Ω
Video input/output voltage	Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
Video Bits Rate	Max 3.2Gb/s
Differential gain (10%～90% APL)	<1%
SDI format support	625/25 PAL
	525/29.97 NTSC, 525/23.98 NTSC
	720p50, 720p59.94
	1080i 23/24/30/50/59.94
	1080P 23.98/24/30/50/60
Video SDI standard	270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI)
	SMPTE425M3Gb/s Mapping(3G-SDI)
	SMPTE424M 3Gb/s serial interface(3G-SDI)

Mini Bi-directional HD/3G-SDI to Fiber Converter Ordering Information

Model	Description
LN K-MHD-BIMM	Mini-type Bi-directional HD-SDI to Fiber Converter, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs
LNK-MHD-BI20	Mini-type Bi-directional HD-SDI to Fiber Converter, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
LNK-MHD-BI40	Mini-type Bi-directional HD-SDI to Fiber Converter, SMF, LC Fiber Connector 40KM, including Transmitter and Receiver, used by pairs

Model	Description
LNK-M3G-BIMM	Mini-type Bi-directional 3G-SDI to Fiber Converter, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs
LNK-M3G-BI20	Mini-type Bi-directional 3G-SDI to Fiber Converter, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
LNK-M3G-BI40	Mini-type Bi-directional 3G-SDI to Fiber Converter, SMF, LC Fiber Connector 40KM, including Transmitter and Receiver, used by pairs

Mini Bi-directional HD/3G-SDI to Fiber Converter 0
