LNK-ECP1100 Series Ethernet over Coax Extender

Name: LNK-ECP1100 Series Ethernet over Coax Extender
Brand: E-link China Technology Co.,LTD
SKU: LNK-EC1100
Price: 64.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE, RoHS, FCC, ISO9001

Model Number: LNK-EC1100

Document: LNK-ECP1100 Series Ethern....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              Coax Ethernet Extender, LNK-ECP1100 Series Ethernet


Weight:	195g	Dimension (mm):	94.5x71.5x26.5(mm)
Maximum Power:	Up To 30W	Operating Temperature::	-20~+70°C

Weight:	195g
Dimension (mm):	94.5x71.5x26.5(mm)
Maximum Power:	Up To 30W
Operating Temperature::	-20~+70°C

Description

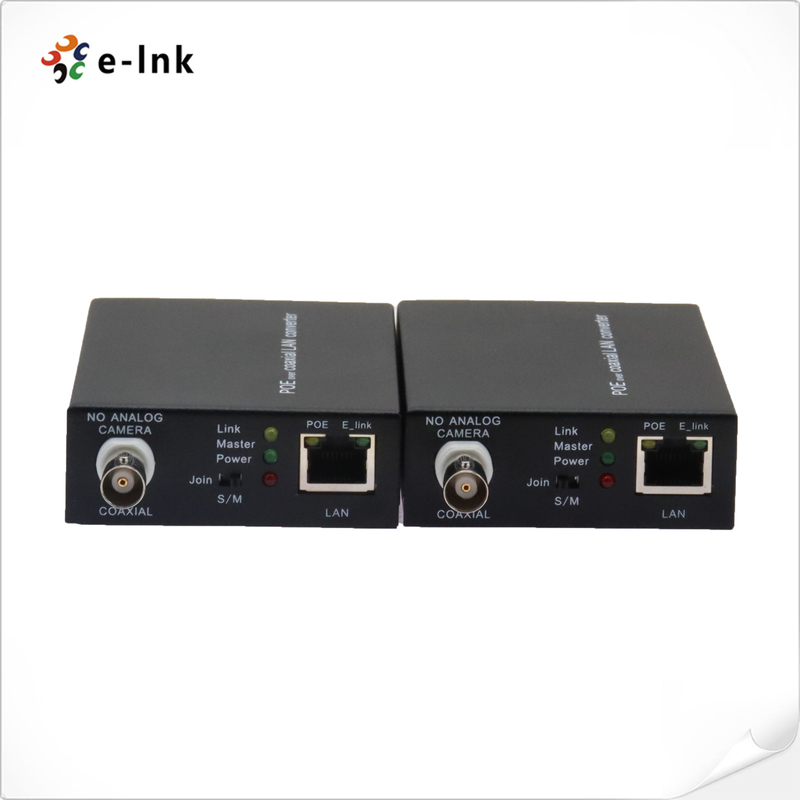

LNK-ECP1100 Series Ethernet over Coax Extender

4U Video Converter Rack

Product Advantages

· Transmit 10/100Base-TX Full Duplex Ethernet up to 300m over coaxial cable.
· 56V DC is distributed over the coax to all connected equipment.
· Powers PoE, PoE+, or High-Power PoE cameras (or other PoE devices), up to 30 watts.
· One EoC transceiver at the network-end can support multiple remote transceivers/IP cameras by using analog BNC splitter.
· Easy configuration, no PC required

Overview

The LNK-ECP1100 Ethernet Over Coax Extender with PoE+ is a new designed Ethernet Extender Device. This Device is designed to extend Ethernet Network signal and Power over existing coaxial cable, and able to live transmit multi-channel Power + Network date signal, the Max distance is up to 300meters. Network max baud-rate is up to 100Mbps. It has excellent lightning protection and Anti-interference.

Technical Indexes

Name	Model/Type	Specification
Product	Model No.	LNK-ECP1100(PoE) and LNK-EC1100(Non-PoE)
Coaxial-line	Standards	Base on up-to-date advanced IEEEP1901 for Ethernet over coax (EOC) Application with raw data Rates up to 90Mbps
Coaxial-line	Connector	Coaxial BNC
Line Rates	Phy Rate	Maximum Link Rates 90Mbps
Ethernet Interface	Standards	SO/IEC802.3 (ANSI/IEEE802.3i) 10BASE-T Ethernet
		IEEE802.3u, 100BASE-TX, Fast Ethernet
		IEEE802.3ab 100BASE-T
	PHY Connection	KSZ8041,10BASE-T,100BASE-T,With Auto-detect Auto MDIX
	Connector	RJ-45 Connector for 10BASE-T, 100BASE-TX Ethernet Interface
LED Indicators	RJ45-DATA	Data Link/Green
	RJ45-PoE	PoE On/Yellow
	PWR	56V DC Link/Red
	BNC Join	CS-Product link/Orange

Odering Information

Model

Description

LNK-ECP1100

Ethernet over Coaxial Converter with PoE, 300m transmission

distance, including Master unit and Slave unit.

(not including power supply adapter)

LNK-EC1100

Ethernet over Coaxial Converter, 1000m transmission distance,

Including Master unit and Slave unit.

(not including power supply adapter)
