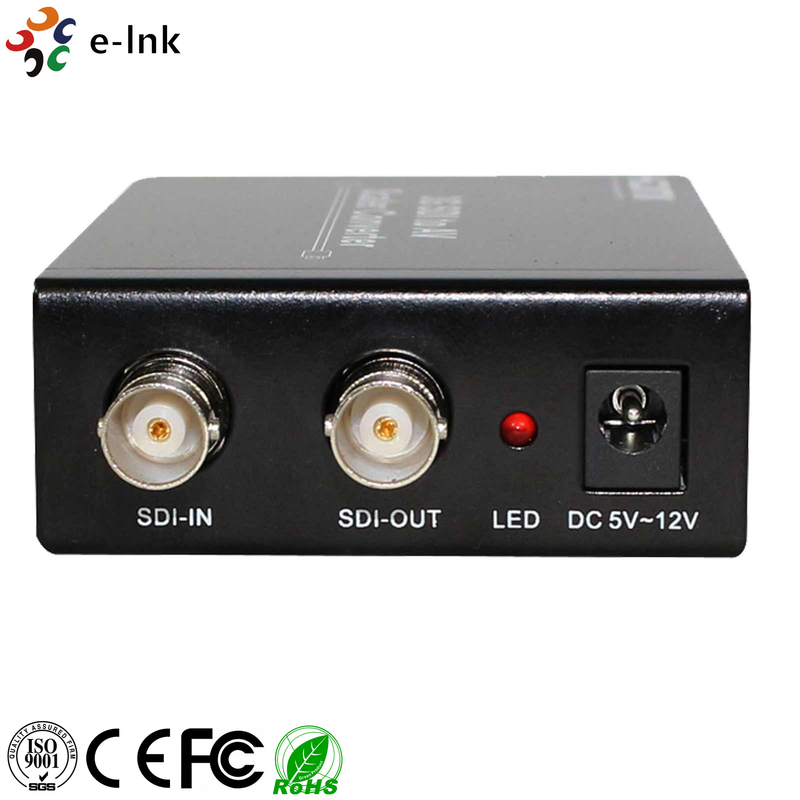

3G SDI to AV Scaler Converter

Name: 3G SDI to AV Scaler Converter
Brand: E-link China Technology Co.,LTD
SKU: LNK-INS901-36V
Price: 594.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE, FCC, RoHS

Model Number: LNK-INS901-36V

Document: E-link 3G-SDI to AV Convert....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Product Size:	0°C ~ 40°C / 32°F ~ 104°F	Weight:	260g
Operating Temperature:	-20°～55°C	CasingCasingCasingCasingCasing:	Aluminum Case
Mounting Options::	DIN-Rail / Wall-mount	Power Consumption (Max):	5W

Product Size:	0°C ~ 40°C / 32°F ~ 104°F
Weight:	260g
Operating Temperature:	-20°～55°C
CasingCasingCasingCasingCasing:	Aluminum Case
Mounting Options::	DIN-Rail / Wall-mount
Power Consumption (Max):	5W

Description

3G SDI to AV Scaler Converter

Product Advantages

1. Operation at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s

2. Equalized and re-clocked loop output

3. Auto video mode detection (3G/HD/SD)

4. Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit

5. Connect with other units to extend your signal over long distances

6. Simultaneous display with SDI /AV signals

7. Alternative audio output to analog 2CH

8. Supports signal transmission distances of up to 300M for SD signals, 200M for HD signals and 100M for 3G signals

Overview

The LNK-SA001 SDI to AV scaler converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on CRT or HDTV while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss. For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on TV thanks to the built in this converter. Furthermore, thanks to the loop-through 3G-SDI design, users are able to enjoy both SDI and AV at the same time.

Technical Indexes

Parameter	Specifications
SMPTE Standard	425M Level A & B, 424M, 292M, 259M-C
SDI Transmission Rates	2.970 Gbit/s and 2.970/1.001 Gbit/s
SDI in/out Resolution	SD: 480i@60, 576i@50 HD:720p@50/60, 1080i@50/60 3G:1080p@24/25/29.97/30/50/59.94/60
CVBS Output Resolution	PAL/NTSC-M
Input Port	1 x BNC (SD/HD/3G-SDI)
Output Port	1 x BNC (SD/HD/3G-SDI), 3 x RCA (CVBS,L/R)
Power Supply	DC 5V -12V
ESD Protection Human body model	±8kV (air-gap discharge) , ±4kV (contact discharge)
Dimension	95mm x 60mm x 25 mm
Weight	260g
Operating Temperature	0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature	-20°C ~ 60°C / -4°F ~ 140°F
elative Humidity	20 ~ 90% RH (Non-condensing)
Power Consumption (Max)	5W
