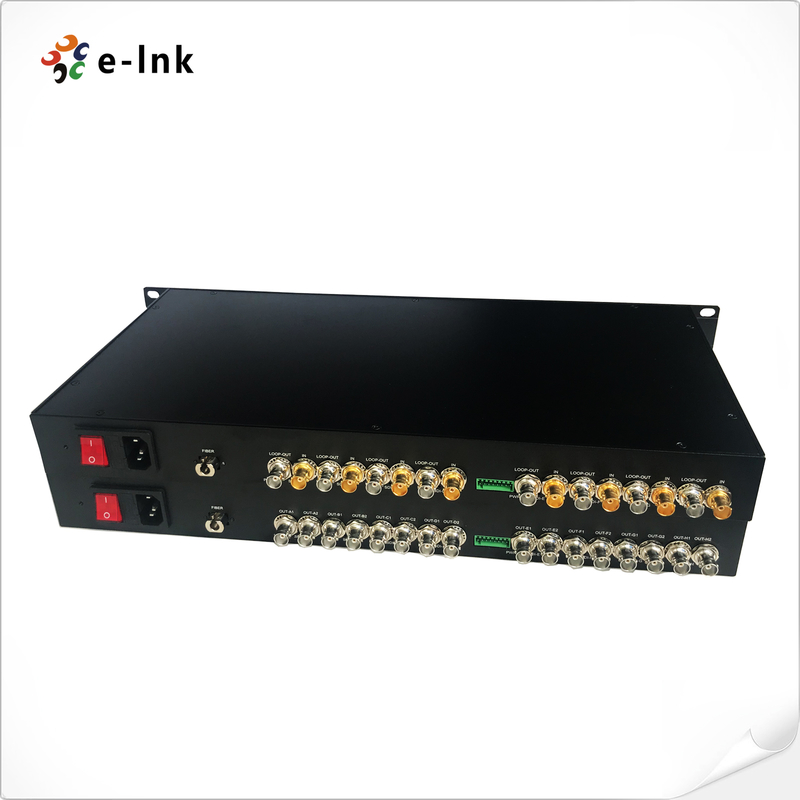

4-Channel Bidirectional 3G-SDI Fiber Converter

4-Channel Bidirectional 3G-SDI Fiber Converter

4-Channel Bidirectional 3G-SDI Fiber Converter Advantages

► 4 channel bidirectional 3G-SDI video transmission over optic fiber

► Automatic cable equalization to ensure signal integrity

► Automatic re-clocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s

► Directly compatible with 3G-SDI camera systems and support Reverse RS-485 data protocols

► Long transmission capability at least 10 km (6.2miles) , up to 120 km

► Terminal block power input for industrial application

► Supports hot swapping and hot plugging

► Full digital non-compression broadcast level transmission;

► super optic dynamic range and free of adjustment prior to use;

► fiber optic WDM/CWDM/DWDM technique;

► industry level ultra-broad temperature range (-40℃~+85℃), adaptable to various environments;

4-Channel Bidirectional 3G-SDI Fiber Converter Overview

LNK-3GSDI-4BV Series supports 4-channel bidirectional 3G-SDI standard high-definition video signal transmitted via single fiber optical cable, and monitor the signal locally over a 3G/HD-SDI loop output. E-link 3G-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P 3G-SDI signal. E-link 3G-SDI Fiber Converters can simultaneously transmit 4-Ch bidirectional 3G-SDI Video, 1-Ch Reverse RS-485 data, signal through a single optical fiber. The video quality up to broadcast standard, audio quality up to CD level supports Reverse RS-485 data communication format.

4-Channel Bidirectional 3G-SDI Fiber Converter Technical Indexes

4-Channel Bidirectional 3G-SDI Fiber Converter Ordering Information
