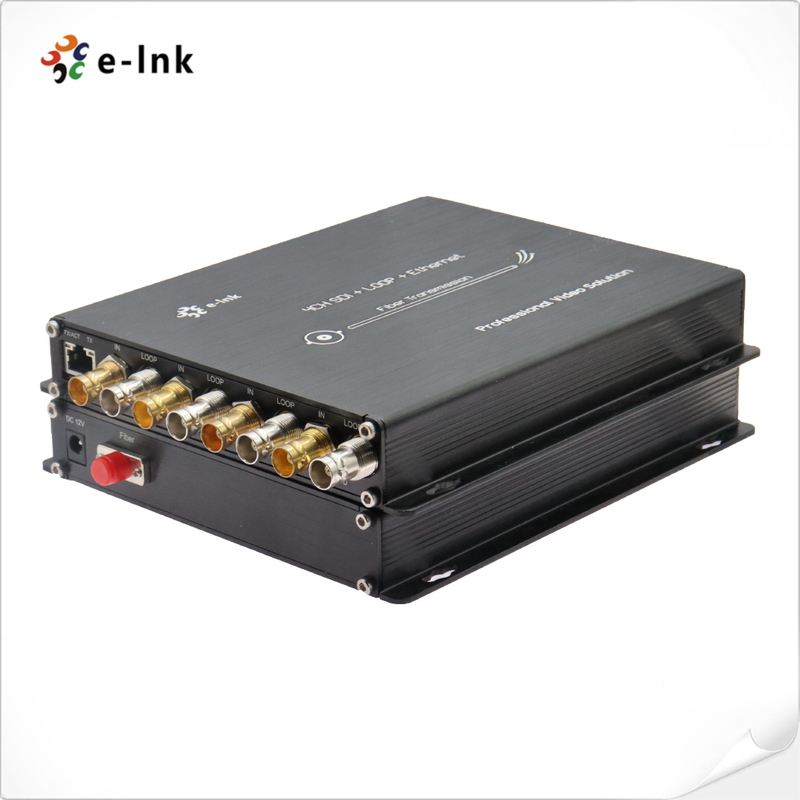

4-Channel 3G-SDI Fiber Converter with Ethernet

Name: 4-Channel 3G-SDI Fiber Converter with Ethernet
Brand: E-link China Technology Co.,LTD
SKU: LNK-3GSDI-4V1N
Price: 674.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE,FCC,RoHs

Model Number: LNK-3GSDI-4V1N

Payment & Shipping Terms

Minimum Order Quantity: 1pair

Price: USD 549~800/Pair

Packaging Details: SDI Fiber Converter standard export package

Delivery Time: 1-3 working days

Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability: 2000 pairs per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Fiber Connector:	FC/UPC/APC (SC, LC, ST Optional)	Reflection Loss::	>15DB
Equilibrium::	0-150m @3Gb/s	Connector::	BNC
Transmission Distance::	20km (Other Distance Optional)	Operating Temperature::	-10℃～＋55℃
Power Input::	1A@12VDC

Fiber Connector:	FC/UPC/APC (SC, LC, ST Optional)
Reflection Loss::	>15DB
Equilibrium::	0-150m @3Gb/s
Connector::	BNC
Transmission Distance::	20km (Other Distance Optional)
Operating Temperature::	-10℃～＋55℃
Power Input::	1A@12VDC

Description

4-Channel 3G-SDI Fiber Converter with Ethernet

4-Channel 3G-SDI Fiber Converter with Ethernet

4-Channel 3G-SDI Fiber Converter with Ethernet Advantages

► 4 channel 3G/HD-SDI video transmission over optic fiber

► Automatic cable equalization to ensure signal integrity

► Automatic reclocking 270Mbit/s - 1.48Gbit/s-3Gbit/s

► Directly compatible with 3G/HD-SDI camera systems and support 4Ch Loop output

► Long transmission up to 20 km (12.5miles) (Other distance Optional)

► Full digital non-compression broadcast level transmission;

► Support 1000M Ethernet;

► Working temperature range (-10℃~+55℃)

4-Channel 3G-SDI Fiber Converter with Ethernet Overview

LNK-3GSDI-4V1N Series supports 4-channel HD/3G-SDI standard high-definition video signal and Ethernet

and Tally signal transmitted via single fiber optical cable. E-link 3G-SDI Video over Fiber Converters

includes one transmitter and one receiver for 1080P 3G-SDI signal. E-link 3G-SDI Fiber Converters can

transmit 4-Ch 3G-SDI Video signal through a single optical fiber, and it support Loop output and 1000M

Ethernet. The video quality is non-compressed broadcast level. It’s widely used in broadcast field.

4-Channel 3G-SDI Fiber Converter with Ethernet Technical Indexes

SDI Input	SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI, DVB-SSI and Telecom/Datacom
	270Mbit/s - 1.48Gbit/s – 3Gbit/s
	Input number: 4
	Reflection loss: >15DB
	Equilibrium: 0-150m @3Gb/s
	Connector: BNC
Optics	Channel: 1
	Type: single-mode
	Transmission distance: 20km (Other distance Optional)
	Reflection loss: > 15dB
	Dithering: < 0.2UI
	Connector: FC/UPC (SC, LC, ST optional)
SDI Output	Output number:4
	Signal level: 800mV nominal
	Rise/fall time: 200ps indication
	Overshoot: < 10% amplitude
	Reflection loss: >15dB
	Dithering: < 0.2UI
	Connector: 75Ω BNC
Ethernet	10/100/1000Mbps
Power and environmental indication	Operating temperature: -10℃～＋55℃
	Power Input: 1A@12VDC
	EMI/RFI: meet FCC Part 15 Class A, EU EMC standard
	Average time trouble-free: >100000 hours
SDI video format supports	625/25PAL; 525/29.97NTSC; 525/23.98NTSC; 720p50; 720p59.94; 1080P23.98/24/30/50/60; 1080i 23/24/30/50/59.94;

4-Channel 3G-SDI Fiber Converter with Ethernet Ordering Information

LNK-HDSDI-4V1N	4-Ch HD-SDI Video with Loop output + 1 1000M Ethernet, SM 20km, FC, including 1 transmitter & 1 receiver, used by pairs
LNK-3GSDI-4V1N	4-Ch 3G-SDI Video with Loop output + 1 1000M Ethernet , SM 20km, FC, including 1 transmitter & 1 receiver, used by pairs
