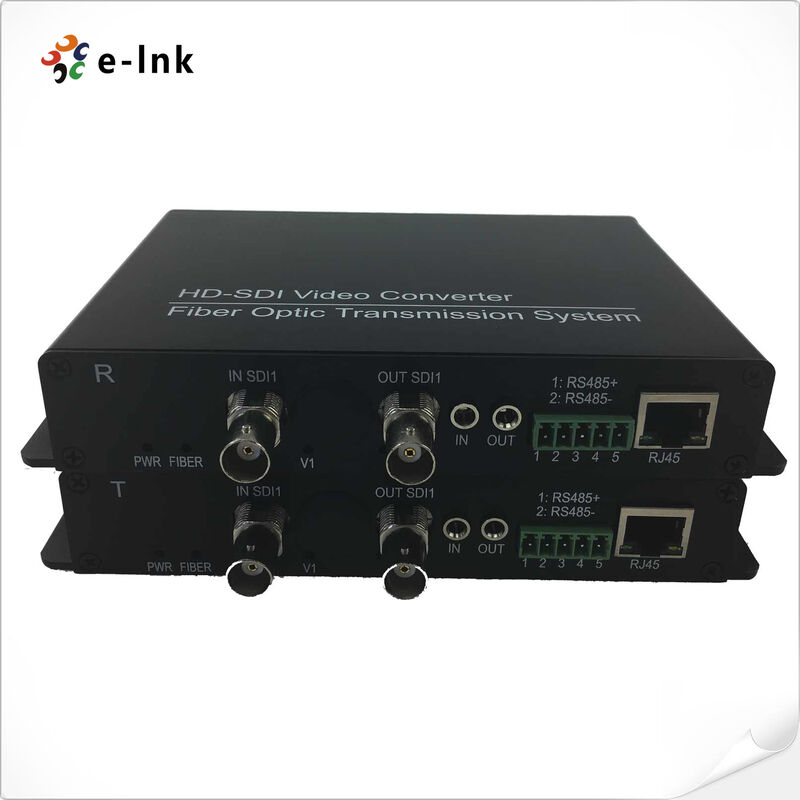

SDI Fiber Converter with RS485 RS422 RS232 Ethernet CWDM 3.2Gbps

Model: LNK-HD3GSDI

 Product Description & Overview

The SD/HD/3G-SDI + RS485/RS422/RS232 Data + 10/100M Ethernet over Fiber Converter provides

a comprehensive multi-signal transmission solution for demanding professional environments. Utilizing

advanced all-digital optical fiber transmission technology, this device ensures high-integrity transport of

uncompressed SDI video signals, including embedded audio and time code, alongside vital control and

data channels over a single optical fiber. The converter excels in delivering long-distance, distortion-free

video transmission while maintaining broadcast-quality clarity and stability, making it an ideal backbone

for complex, mission-critical video and data networks.

Engineered for operational transparency and ease of use, the converter features intuitive LED status

indicators that allow for immediate visual monitoring of power, fiber link integrity, and signal activity. Its

enhanced flexibility is anchored by integrated support for RS485, RS422, and RS232 serial data protocols,

enabling bidirectional transmission of control commands, sensor data, and switch status information. This,

combined with a standard 10/100M Ethernet port, allows for seamless network integration and remote

management, empowering users to customize the system to meet diverse and evolving application

requirements without compromising performance.

This versatile converter is designed to serve a wide array of industrial and commercial applications.

Key deployments include intelligent transportation systems for traffic monitoring, expansive security

and surveillance networks, and robust industrial monitoring in sectors such as power generation,

chemical processing, and oil and gas. Additionally, it is perfectly suited for broadcasting applications

like TV program transmission and live event production in stadiums, as well as for military perimeter

security and facility monitoring. By consolidating video, data, and control signals onto a single, reliable

fiber link, this converter simplifies infrastructure, reduces costs, and delivers the high reliability required

for 24/7 operations in the most challenging environments.

Key Features Bullets

• Dual Wavelength & Full CWDM Spectrum Support
  Operates on 1310nm, 1550nm, and 16 other ITU-T G.694.2 compliant CWDM wavelengths for versatile fiber deployment.

• Advanced Signal Integrity Management
  Automatic cable equalization for all data rates up to 3.2 Gb/s, ensuring optimal performance over long distances.

• Comprehensive Status Monitoring
  Multi-function LED indicators for real-time monitoring of power, fiber link, and data activity status.

• Signal Regeneration & Clock Recovery
  Built-in video signal regeneration and SMPTE 292M (2.9 Gb/s) compliant clock recovery for pristine signal quality.

• Hot-Pluggable SFP Flexibility
  Supports hot-pluggable SFP transceivers for easy maintenance and flexible network upgrades.

• High-Speed Multi-Format Video Transport
  Plug-and-play operation for transmitting SD-SDI, HD-SDI, and 3G-SDI video formats up to 3.2 Gb/s over a single fiber.

• Broad Global Video Format Compatibility
  Supports a wide range of video standards including 625/25 PAL, 525/29.97 NTSC, 720p50/59.94, and 1080p/i at various frame rates.

Technical Specifications & Indexes

Video

Data

Ethernet

Power Supply

Environmental

Application Scenarios

• Industrial automation video surveillance and control systems

• Broadcast studio multi-signal remote transmission

• Transportation traffic management and monitoring networks

• Energy sector facility security and monitoring systems

• Outdoor live event production and signal distribution
