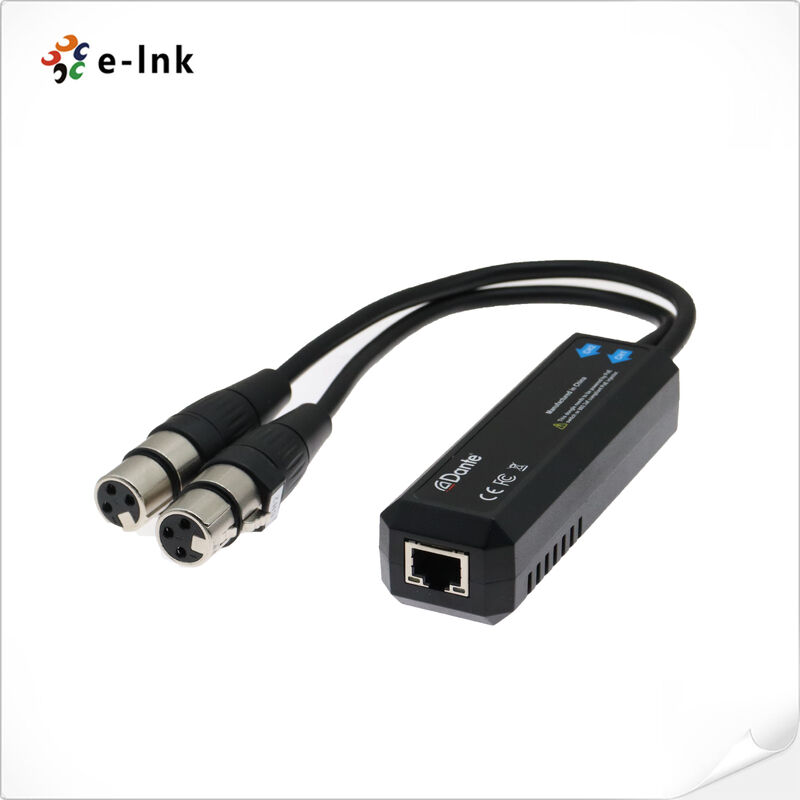

Dante 2Ch Analog Input Dongle Converter

Name: Dante 2Ch Analog Input Dongle Converter
Brand: E-link China Technology Co.,LTD
SKU: LNK-DAN-D5
Price: 102.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, FCC, RoHS

Model Number: LNK-DAN-D5

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: $97-107

Packaging Details: standard export package

Delivery Time: 5-12working days

Payment Terms: T/T,L/C

Supply Ability: 1000pcs/mouth

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              2-channel Dante analog converter, Dante input dongle networking device, analog audio converter with warranty


Operating Temperature::	-5 To +55℃	Maintaining Temperature:	-25~70ºC
Power Consumption:	3.15W(Max)	Net Weight:	145g
Dimensions (WxDxH)::	114x 30 X 28 Mm	Cable Length:	30cm
USB-C Port:	1 X USB-C Port, Compatible With USB 2.0 Devices.	Power:	802.3af PoE

Operating Temperature::	-5 To +55℃
Maintaining Temperature:	-25~70ºC
Power Consumption:	3.15W(Max)
Net Weight:	145g
Dimensions (WxDxH)::	114x 30 X 28 Mm
Cable Length:	30cm
USB-C Port:	1 X USB-C Port, Compatible With USB 2.0 Devices.
Power:	802.3af PoE

Description

Dante 2Ch Analog Input Dongle Converter

Dante 2Ch Analog Input Dongle Converter Advantage

Plug and play.
24-bit audio support
2x0 Audio Channels
Support power via PoE Injector (IEEE802.3af)

Dante 2Ch Analog Input Dongle Converter Overview

The LNK-DAN-D5 2Ch Analog Input Dongle Converter can connects to your Dante network and supports Analog 2X0 channels audio, allowing receive analog audio signal, convert the analog signal to digital signal and transmit through Dante network.

Dante 2Ch Analog Input Dongle Converter Technical Indexes

Port
RJ45 Port	Network communication port. Green light on indicates system is ready Yellow light flash indicates link/data traffic. When click the "Recognize" button (an eye-shaped symbol) on the Dante controller, Green light will flash to identify the device.
XLR Port	2 x XLR port, connect input device
Audio
Max signal level	+24 dBu
Frequency Response	20Hz to 20kHz(-/+0.5dB)
Impedance	20k Ohm balanced, 10k Ohm unbalanced
Dynamic Range	>100 dB
Signal to Noise Ratio	>100 dB
THD	<0.01% @+4dBu
Dante
Sample Rate	44.1kHz, 48kHz, 96kHz
Bit Depth	24
Dante Device latency	1,2 or 5ms (configurable using Dante Controller)
Type	Analog 2x0
General
Operation Temperature	-5 to +55℃ (+23° to +131°F)
Storage Temperature	-25 to +70℃ (-13° to +158°F)
Power	802.3af PoE
Power Consumption	3.15W(Max)
Dimension (WHD)	114 x 30 x 28 mm
Cable length	30cm
Net Weight	145g

Dante 2Ch Analog Input Dongle Converter Ordering Information

Model	Description
LNK-DAN-D5	Dante 2Ch Analog Input Dongle Converter
