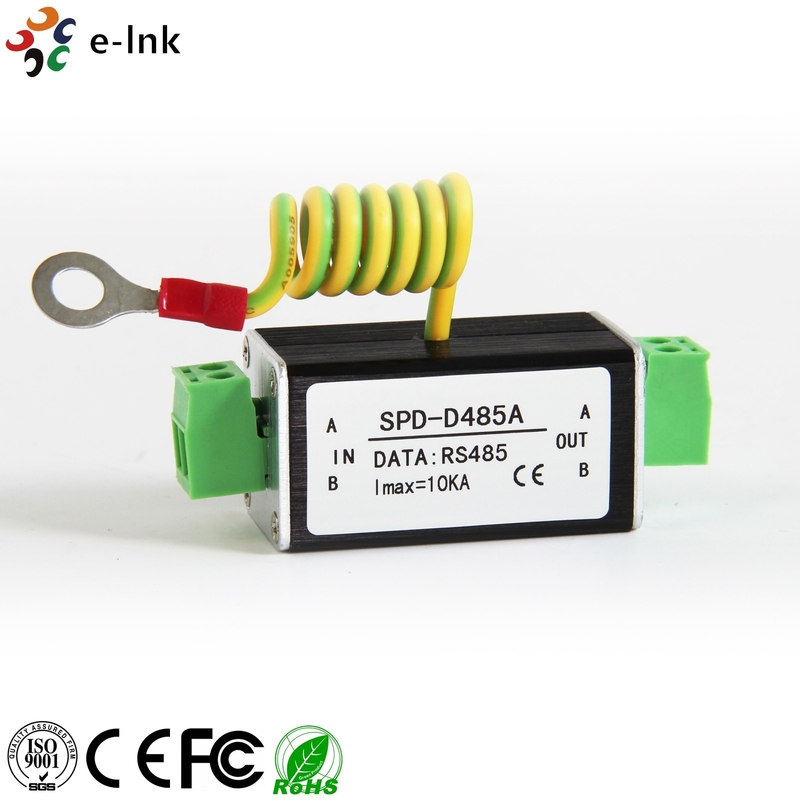

RS485 Signal Surge Protector
RS485 Signal Surge Protector
RS485 Signal Surge Protector
RS485 Signal Surge Protector
RS485 Signal Surge Protector
RS485 Signal Surge Protector
RS485 Signal Surge Protector

RS485 Signal Surge Protector

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, FCC, RoHS

Model Number: LNK-SSP

Document: E-link LNK-SSP RS485 Signal....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:
Dimensions (WxDxH)::
48*25*25mm
Weight:
9.8Kg (including Transmitter & Receiver)
Limit Voltage U R:
≤8.8V
Protected Lines:
Two-wire (1 Pair)
Mounting Options::
Rack-mount
Response Time T A:
≤1ns
Dimensions (WxDxH)::
48*25*25mm
Weight:
9.8Kg (including Transmitter & Receiver)
Limit Voltage U R:
≤8.8V
Protected Lines:
Two-wire (1 Pair)
Mounting Options::
Rack-mount
Response Time T A:
≤1ns
Description
RS485 Signal Surge Protector

RS485 Signal Surge Protector

Product Advantages

► Flow capacity, fast response

► Multi-level protection circuit, residual depression

► Use the core components of international brand products, excellent performance

► Take place through the special treatment to avoid signal interference

► Small size, easy installation

Overview

For intelligent control system, twisted pair of data signals over-voltage protection. 使其免受感应过电压,操作过电压和静电放电等所造成的损坏. Them from over-voltage sensors, operating over-voltage and electrostatic discharge caused by damage.



Technical Indexes

Model

Parameters

SPD-D485A

Signal

RS485

标称工作电压 U n Nominal voltage U n

≤5V

最大持续工作电压U c Maximum continuous operating voltage U c

6.8

标称放电电流( 8/20μs ) I n Nominal discharge current (8/20μs) I n

5KA

最大通流容量( 8/20μs ) I max Maximum Flow Capacity (8/20μs) I max

10KA

限制电压 U r Limit voltage U r

≤8.8V

响应时间 T a Response time T a

≤1ns

传输速率 V stransfer rate  V s

10Mbps

插入损耗 A E Insertion loss A E

≤0.5dB

保护线数 Protected lines

两线( 1 对) Two-wire (1 pair)

外形尺寸( mm ) Dimension (mm)

48*25*25mm

Ordering information

Model

Description



LNK-SSP


RS485 Signal Surge Protector
