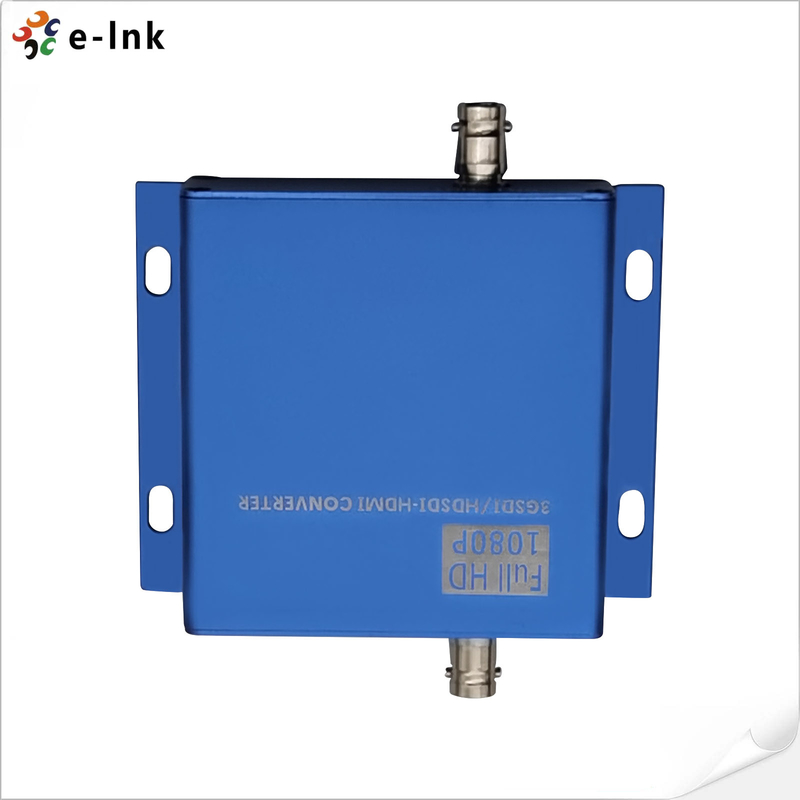

HD/3G-SDI to HDMI Converter with Loop Output
HD/3G-SDI to HDMI Converter with Loop Output
HD/3G-SDI to HDMI Converter with Loop Output
HD/3G-SDI to HDMI Converter with Loop Output
HD/3G-SDI to HDMI Converter with Loop Output
HD/3G-SDI to HDMI Converter with Loop Output
HD/3G-SDI to HDMI Converter with Loop Output
HD/3G-SDI to HDMI Converter with Loop Output

HD/3G-SDI to HDMI Converter with Loop Output

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, FCC, RoHS

Model Number: LNK-SSP

Document: E-link HD 3G SDI to HDMI Co....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:
Dimensions (LxWxH):
82 X 87 X 28 Mm
Weight:
9.8Kg (including Transmitter & Receiver)
Working Temperature:
-10℃～+60℃
Power Input:
DC 5V
Mounting Options::
Desktop/Wall Mount
Power Consumption:
<3W
Dimensions (LxWxH):
82 X 87 X 28 Mm
Weight:
9.8Kg (including Transmitter & Receiver)
Working Temperature:
-10℃～+60℃
Power Input:
DC 5V
Mounting Options::
Desktop/Wall Mount
Power Consumption:
<3W
Description
HD/3G-SDI to HDMI Converter with Loop Output

HD/3G-SDI to HDMI Converter with Loop Output

Product Advantages

► Support SD-SDI, HD-SDI, 3G-SDI input;

► Support 1ch SDI loop-out;

► Directly compatible with HD-SDI camera systems

► Use dedicated clock recovery circuit for repeater use;

► Adaptive SDI input resolution

► Audio and image sync output to HDMI interface;

► Built-in ESD protection circuit to prevent static damage;

► LED Status Indication to monitor the working conditions;

► Easy to install, plug and play;

Overview

The SDI-HDMI Converter is a device designed to convert a single HD digital interface (3G-SDI) signal into an HDMI signal. At the same time, the audio signal of the SDI is separated and embedded into the HDMI signal to realize the audio and image synchronous transmission It’s widely used in security system, video conference, broadcasting and live Events etc.



Technical Indexes


Video Input

Video interface

BNC/75Ω

Video Bits Rate

Max 3.2Gb/s

Differential gain (10%～90% APL)

<1%

Resolution

Max 1080P@60Hz

SDI standard

270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI)

SMPTE425M3Gb/s Mapping(3G-SDI)

SMPTE424M 3Gb/s serial interface(3G-SDI)

Video Output

HDMI

Electrical

Power Input

DC 5V

Power consumption

<3W

LED Indicator

SDI

Power/HDMI

Mechanical

Dimensions (LxWxH)

82 x 87 x 28 mm

Weight

160g

Casing

Aluminum Case

Mounting Options

Desktop/Wall mount

Environmental

Working Temperature

-10℃～+60℃

Storage Temperature

-40℃～+80℃

Working Humidity

0~95%

MTBF

≥100000 hours
Ordering information
