HD/3G-SDI to HDMI Converter with Loop Output
HD/3G-SDI to HDMI Converter with Loop Output
HD/3G-SDI to HDMI Converter with Loop Output
HD/3G-SDI to HDMI Converter with Loop Output
HD/3G-SDI to HDMI Converter with Loop Output
HD/3G-SDI to HDMI Converter with Loop Output
HD/3G-SDI to HDMI Converter with Loop Output

HD/3G-SDI to HDMI Converter with Loop Output

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, FCC, RoHS

Model Number: LNK-Convert-Sony

Document: E-link LNK-Convert-Sony C....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:
MTBF:
≥100000 Hours
Working Humidity:
0~95%
Working Temperature:
-20℃～+70℃
Dimensions (W X H X D):
70mm X 55mm X 18.5 Mm
Cable:
30pin LVDS Cable
Mass:
30g
MTBF:
≥100000 Hours
Working Humidity:
0~95%
Working Temperature:
-20℃～+70℃
Dimensions (W X H X D):
70mm X 55mm X 18.5 Mm
Cable:
30pin LVDS Cable
Mass:
30g
Description
HD/3G-SDI to HDMI Converter with Loop Output

HD/3G-SDI to HDMI Converter with Loop Output

Product Advantages

► Automatic cable equalization, used for all rate below 3.2 Gb/s (Belden 1694A);

► SDI Output Automatic reclocking 270Mbit/s - 1.48Gbit/s -3Gbit/s

► Compliance with HDMI1.4B 3D and HDCP1.2 standard

► Support HDMI video resolution up to 1920*1200@ 60Hz

► Board and camera management via RS232/TTL

► Board and camera management via RS485/TTL

► Power supply: 9 to 12 VDC, 6 W (including camera)

► Dimensions (W x L x H):70mm x 55mm x 18.5mm

► Camera output 30pin LVDS Cable



Overview

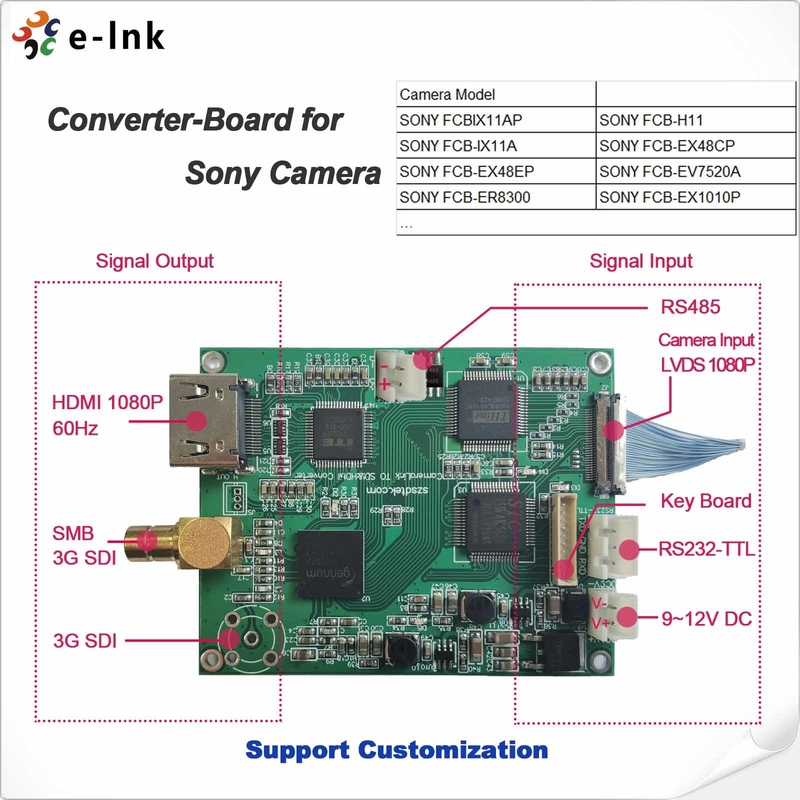

This HDMI Board of SONY HD movement, is a designed for SONY FCB HD integration module research and design, and is compatible with SONY FCB-EH3410 / FCB-EH3310 / FCB-EH3150 / FCB-EH6300 / FCB-EH6500 / FCB-EV7500 / FCB-EV5500 / FCB-EV7100 / FCB-EV7300 / FCB-EV7310 / FCB-EV5300 and so on. This widely used control panels, can be applied to aerial photography, amblyopia, and video conferences, medical devices or other specialized equipment.



Technical Indexes

Input Analog

30pin LVDS Cable

Input Digital

30pin LVDS Cable

Video output HD

270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI)

SMPTE425M3Gb/s Mapping(3G-SDI)

SMPTE424M 3Gb/s serial interface(3G-SDI)

HDMI Video

1080P@50/59.95/60Hz,( Max 1920*1200@60Hz)

1080P@23.98/24/29.97/30Hz,
1080i@50/59.94/60/Hz,

720P@23.98/24/29.97/30Hz,

720P@50/59.94/60Hz

Camera control interface

RS-232 control

Power Requirements

9 to 12 V DC

Mass

30g

Cable

30pin LVDS Cable

Dimensions (W x H x D)

70mm x 55mm x 18.5 mm

Working Temperature

-20℃～+70℃

Storage Temperature

-40℃～+80℃

Working Humidity

0~95%

MTBF

≥100000 hours

Ordering information

Model

Description

LNK-Convert-Sony

Input: 30pin LVDS Cable RS232 TTL, RS485, Keyboard, 9-12V DC input
Output: 2X3G/HD-SDI Output 1XHDMI 1080P 60Hz Output
