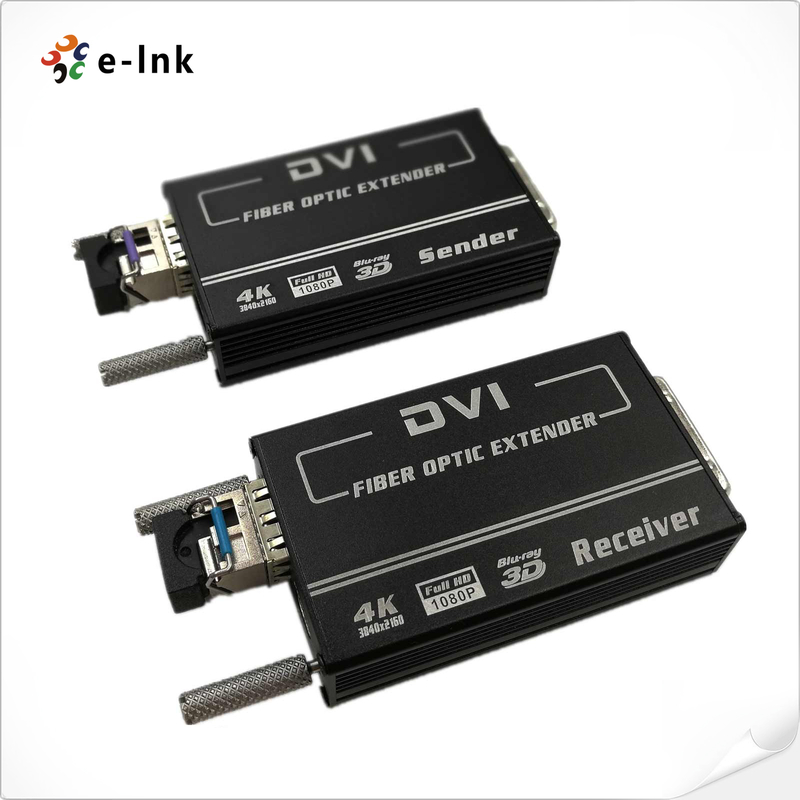

Mini 4KX2K DVI Fiber Transceiver MM 300M Auto EDID

Name: Mini 4KX2K DVI Fiber Transceiver MM 300M Auto EDID
Brand: E-link China Technology Co.,LTD
SKU: LNK-D4K-MM-S
Price: 229.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE, FCC, RoHS

Model Number: LNK-D4K-MM-S

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiated

Packaging Details: standard export package

Delivery Time: 5-12working days

Payment Terms: T/T,PayPal

Supply Ability: 1000pcs/mouth

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Operating Temperature:	32° To +112° F. (0° To +50° C)	Storage Temperature:	-40° To +185° F. (-40° To +85° C)
Dimensions (L X W X H):	69mm X 42 Mm X 18.2 Mm	Net Weight:	100 G
DVI Input / DVI Output:	1x DVI-D 18+1 Male Connector	Optical:	1x SFP+ Port

Operating Temperature:	32° To +112° F. (0° To +50° C)
Storage Temperature:	-40° To +185° F. (-40° To +85° C)
Dimensions (L X W X H):	69mm X 42 Mm X 18.2 Mm
Net Weight:	100 G
DVI Input / DVI Output:	1x DVI-D 18+1 Male Connector
Optical:	1x SFP+ Port

Description

Mini 4KX2K DVI Fiber Transceiver MM 300M Auto EDID

Advantage

► Support DVI 1.0 and HDMI v1.4

► Support EDID pass-through.

► Support resolutions up to 3840x2160/30P

► Support 3840*2160/60P(YUV 420)

► Plug and Play ,Built-in EQ(Receiver)

► Support 4K/30P@ Single-Link

► Two fiber,2-ways

Overview

E-link Mini 4Kx2K DVI is High-Definition Multimedia Interface recently has become increasingly popular

in the application of video and audio transmission system, DVI Fiber Optic Extender uses one fiber without

any copper wire inside, where radio frequency interference phenomenon is literally ruled out, which shows

the advantage of high performance and good signal quality as well as low cost.

The LNK-D4K-MM series is a high performance 4K Optical Extender that transmits high resolution DVI signals

over extreme distances using one fiber. This extender supports HDMI v1.4 signals with resolutions up to

4K (3840*2160/30p) over cable distances up to 300m.


Mini 4KX2K DVI Fiber Transceiver MM 300M Auto EDID 0

Technical Indexes

Parameter	Specifications
Compliance	DVI1.0,HDMI v1.4
Bandwith	10.2 Gbps
Supported Resolutions	3840x2160/30P,38402160/60P(YUV 420), 40962160/60P(YUV 420)
Digital Audio Support	7.1 channel LPCM, 192 kHz, 24-bit audio capability
Connections
DVI Input / DVI Output	1x DVI-D 18+1 Male connector
Optical	1x SFP+ port
Cable
Fiber Cable	50/125μ OM3 Multi-Mode Fiber:≤300m
DDC Support
EDID Support	Support EDID pass-through
HDCP Pass-through Support	Yes, Support the HDCP 1.4 pass-through
Mechanical
Construction	High-impact Alufer enclosure
Dimensions (L x W x H)	69mm x 42 mm x 18.2 mm
Net Weight	LNK-D4K-SM-S: 100 g LNK-D4K-SM-R: 100 g

Application

Mini 4KX2K DVI Fiber Transceiver MM 300M Auto EDID 1

Ordering Information

Model	Description
LNK-D4K-MM-S	Mini 4KX2K DVI Fiber Sender Auto EDID,DC5V1A
LNK-D4K-MM-R	Mini 4KX2K DVI Fiber Receiver Auto EDID,DC5V1A
