Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-1800
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500pcs/month
Conncetor: |
SC/FC/ST Optional |
Optical Wavelength: |
850nm |
Back Bandwidth: |
1.8G |
Working Voltage: |
5VDC |
Power Consumption: |
1.3W~3W |
Dimension: |
125×120×40mm |
Weight: |
0.4KG |
Material: |
Metal |
Color: |
Black |
Conncetor: |
SC/FC/ST Optional |
Optical Wavelength: |
850nm |
Back Bandwidth: |
1.8G |
Working Voltage: |
5VDC |
Power Consumption: |
1.3W~3W |
Dimension: |
125×120×40mm |
Weight: |
0.4KG |
Material: |
Metal |
Color: |
Black |
8-Port 10/100Base-TX + 1-Port 100Base-FX Fiber Ethernet Switch
Features
► Converts 10/100Base-T to 100Base-FX
► 8x10/100Base-TX Port to 1x100Base-FX
► RJ45 support auto MDI/MDI-X function
► Auto-negotiation speed, half/full-duplex
► Support IEEE802.1d Spanning Tree
► Supports high performance QoS function on each port
► Support broadcast storm protection
► Wide-range redundant power design ( 4.5~20VDC )
► Support custom the ISOLATE-USER-VLAN
► Support max forwarding packet length 1552 bytes option
► Low power consumption
► Compact size
Overview
The LNK-1800 Series is a 10/100Mbps adaptive fast Ethernet Fiber Optic Switch. It's with eight 10/100Mbps UTP ports and one 155Mbps fiber port. It extends the transmission distance of a network from 100m via copper cables to 120km.
It can extend the transmission distance, and also with many other advantages such as isolation protection, good data security, working stable and easy to maintain. It supports two different types of network connection media, 10/100Base-TX and 100Base-FX.
By switching technique and storage & forwarding technique, it realizes the data transmission between two network connection media.It supports optical transmission under dual-fiber multi-mode, dual-fiber single mode, and single fiber single mode.

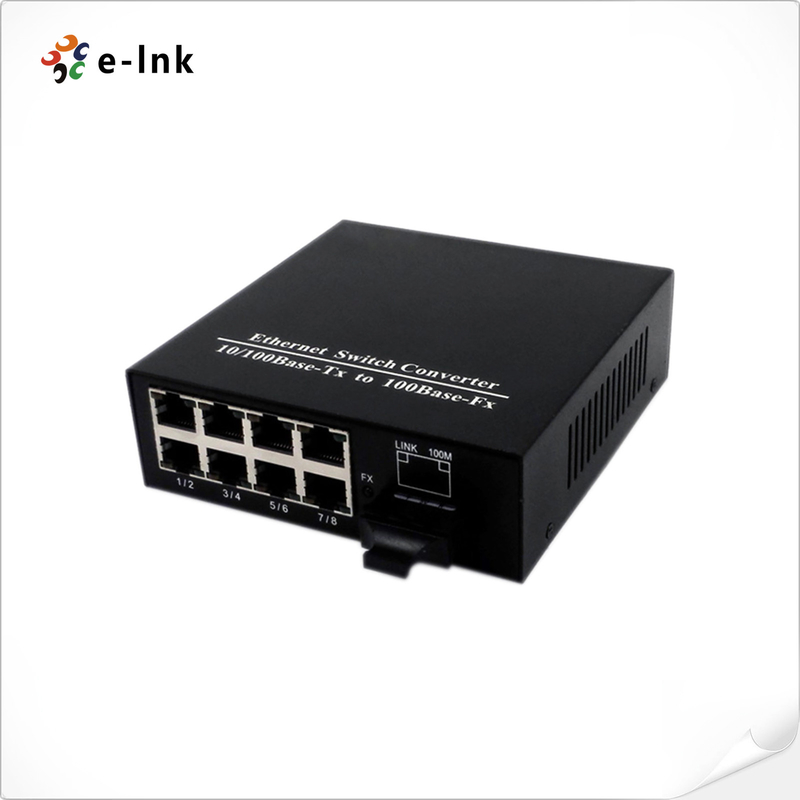

Product Image
Technical Indexes
| Standards | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX/FX | |
| IEEE802.3x Flow control | |
| IEEE802.1q VLAN | |
| IEEE802.1p QoS | |
| IEEE802.1d Spanning Tree | |
| Copper Port | Connector: RJ45 |
| Data Rate: 10/100M | |
| Distance: 0～100m | |
| UTP Type:UTP-5E or higher level | |
| Fiber Port | Connector: SC/FC/ST |
| Data Rate: 155M | |
| Optical wavelength: 850nm/1310nm/1490nm/1550nm | |
| Distance: 0～120km | |
| Performance | Processing Type : Store and Forward |
| MAC Table Size: 2K | |
| Back bandwidth: 1.8G | |
| Maximum Packet Length:2048bytes | |
| Network Latency: ＜150μs | |
| Power | Input Voltage:AC100V～240V 50/60Hz |
| Connector: DC Socket | |
| Working Voltage: 5VDC | |
| Power Consumption: 1.3W～3W | |
| Environment | Storage Temperature: -40 ˚C ~ +70 ˚C |
| Operating Temperature: -10 ˚C ~ +55 ˚C | |
| Relative Humidity: 5-95% (non-condensing) | |
| Physical Characteristics | Dimension (LxWxH): 125×120×40mm |
| Weight: 0.40kg | |
| Color: Metal, Black |
Ordering Information
| Model | Description |
| LNK-1800 | 1×100Base-FX to 8×10/100Base-TX, MMF, 1310nm, SC, 2km |
