Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-M208GP-SFP
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/month
PoE Standard: |
8 X IEEE 802.3af /IEEE 802.3at PoE |
Power Budget: |
Max. PoE Output Power Budget 30W |
Redundant Power Input: |
AC 100-240V |
Enclosure: |
Metal |
Dimensions: |
249mm X 152mm X 45mm |
Installation Mode: |
Wall-mountable |
Weight: |
1.3KG |
Operating Temperature: |
-5℃~50℃ |
Warranty: |
2-year |
PoE Standard: |
8 X IEEE 802.3af /IEEE 802.3at PoE |
Power Budget: |
Max. PoE Output Power Budget 30W |
Redundant Power Input: |
AC 100-240V |
Enclosure: |
Metal |
Dimensions: |
249mm X 152mm X 45mm |
Installation Mode: |
Wall-mountable |
Weight: |
1.3KG |
Operating Temperature: |
-5℃~50℃ |
Warranty: |
2-year |
Features
►8x10/100/1000Base-TX RJ45 ports, 2xSFP Combo ports, 8xPoE
►SFP interface support 100/1000Base-X SFP auto-negotiation
►Support Auto-MDIX, and full/half duplex self-negotiation mode
►Support 9K bytes giant frame, compatible with various extension protocol
►8K MAC address table
►Support IEEE802.3az energy efficient Ethernet technology
►Support IPv6 Protocol
►Static Routing can be customized
►Complete status indicator, working state at a glance
►Power input polarity protection design, no worry about wrong operation
►Metal case, no fan design
►Installation method: Wall mounting
Overview
LNK-M208GP-SFP is a new generation Managed PoE switch with 8-Port 10/100/1000Base-TX and 2-Port 100/1000 SFP that provide stable and reliable Ethernet transmission offered by E-link, with high quality design and reliability.
It is positioning in the broadband network intervention market, to offer and realize Ethernet data exchange, convergence and long-distance optical transmission with efficient bandwidth and reliable fiber optic network solutions for users. The industrial switch complies with various
characteristics such as mini size, no fan, low power consumption, high reliability and stability, and easy to maintain.

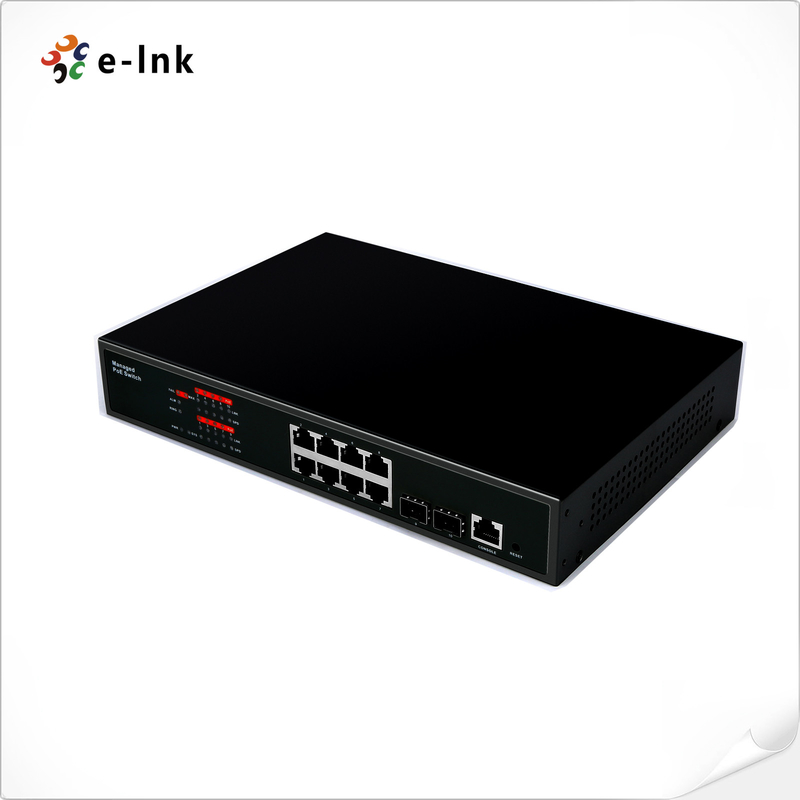

Product Image
Technical Indexes
| Physical Port | |
| RJ45 port and speed | 8x10/100/1000ase-TX/8xPoE |
| Fiber port and speed | 2x1000Base-FX SFP |
| Parameters | |
| Ethernet standards | IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX/100BASE-FX IEEE802.3ab 1000BASE-T IEEE802.3z 1000BASE-SX/1000BASE-LX IEEE802.3x Full duplex and flow control IEEE802.1Q Tag VLANs |
| Packet buffer | 4Mbits |
| Maximum packet length | Up to 10k Bytes |
| MAC address table | 8K |
| Transmission mode | Store and Forward (full/half duplex mode) |
| Exchange property | Delay time: < 7μs |
| Backplane bandwidth: 1Gbps | |
| Packet forwarding rate: 148810 (64Byte) | |
| PoE | |
| PoE Standard | 8 x IEEE 802.3af /IEEE 802.3at PoE |
| Power budget | Max. PoE output power budget 30W |
| LED Indicator | |
| Power | Connect-always |
| RJ45 | Link/Act: connect-always; data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle |
| Fiber | Link/Act: connect-always; data exchange-twinkle |
| Power Information | |
| Redundant power input | AC 100-240V |
| Overload protection | Yes |
| Power reverse | Support |
| Physical Property | |
| Enclosure | Metal |
| Cooling mode | Natural cooling, no fan design |
| Dimensions | 249mm x 152mm x 45mm (L x W x H) |
| Installation mode | Wall-mountable |
| Weight | 1.3kg |
| Working Environment | |
| Operating Temperature | -5℃~50℃ |
| Operating Humidity | 5%~90% non-condensing |
| Storage Temperature | -10℃~70℃ |
| Warranty | |
| MTBF | 65,000 hours |
| Defects Liability Period | 2-year warranty, lifetime technical support |
| Certification Standard | |
| EMI | FCC Part15 Subpart B Class A, EN 55022 Class A |
| EMS | EN61000-4-2(ESD), EN61000-4-3(RS), EN61000-4-4(EFT), EN61000-4-5(Surge), EN61000-4-6(CS), EN61000-4-8, EN61000-4-11 |
| Collision | IEC60068-2-27 |
| Drop | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
| Safety grade | EN60950-1 |
| Software Features | |
| Redundant network: STP/RSTP | |
| Multicast: IGMP Snooping V1/V2 | |
| VLAN: IEEE 802.1Q 4K VLAN, QINQ | |
| Link Aggregation: manual | |
| Management Function: CLI/WEB/SNMP | |
| Diagnostic Maintenance: Port mirroring, Ping | |
| Alarm management: 1-way relay alarm output, RMON, SNMP Trap | |
| Security: DHCP Snooping, User hierarchical management | |
| Data control Port-based ingress/egress speed limit, Full duplex IEEE 802.3x, half duplex back-pressure flow control. | |
| Broadcast storm suppression, Unknown-Multicast suppression and Unknown-Unicast suppression | |
Ordering Information
| Model | Description |
| LNK-M208GP-SFP | Managed 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000M SFP Ethernet Switch |
