Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-MDF100 Series
Payment & Shipping Terms
Minimum Order Quantity: 1pair
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Video Connector: |
Female DVI-D |
Audio Interface: |
3.5MM External Stereo Audio |
Optical Fiber Interface: |
SFP Model – LC Connector |
Wavelength: |
850nm/1310nm |
Interface Bandwidth: |
3Gbps |
Power Supply: |
DC 5V |
Power Dissipation: |
Max 1.2W |
Operating Temperature: |
-20℃ ~ +70℃ |
Dimension (LxWxH): |
80 X 40 X 20 (mm) |
Video Connector: |
Female DVI-D |
Audio Interface: |
3.5MM External Stereo Audio |
Optical Fiber Interface: |
SFP Model – LC Connector |
Wavelength: |
850nm/1310nm |
Interface Bandwidth: |
3Gbps |
Power Supply: |
DC 5V |
Power Dissipation: |
Max 1.2W |
Operating Temperature: |
-20℃ ~ +70℃ |
Dimension (LxWxH): |
80 X 40 X 20 (mm) |
► Transmits DVI video signals and audio up to 20km over a single fiber optic cable;
► Compliant with DVI 1.0 specifications ;
► Support 1920*1200 1080P@60Hz
► Special support 1600*1200 @60Hz
► Supporting pixel rates from 25MHz to 165MHz
► DTV resolutions: 480i, 576i, 480p, 576p, 720p, 1080i up to 1080p
► PC resolutions: VGA, SVGA, XGA, SXGA up to UXGA
► High compatibility, can auto-match source and display device;
► Built-in automatic adjustment system, make the image smooth, clear and stable;
► Built-in ESD protection system;
► Simple to install, plug and play;
Overview

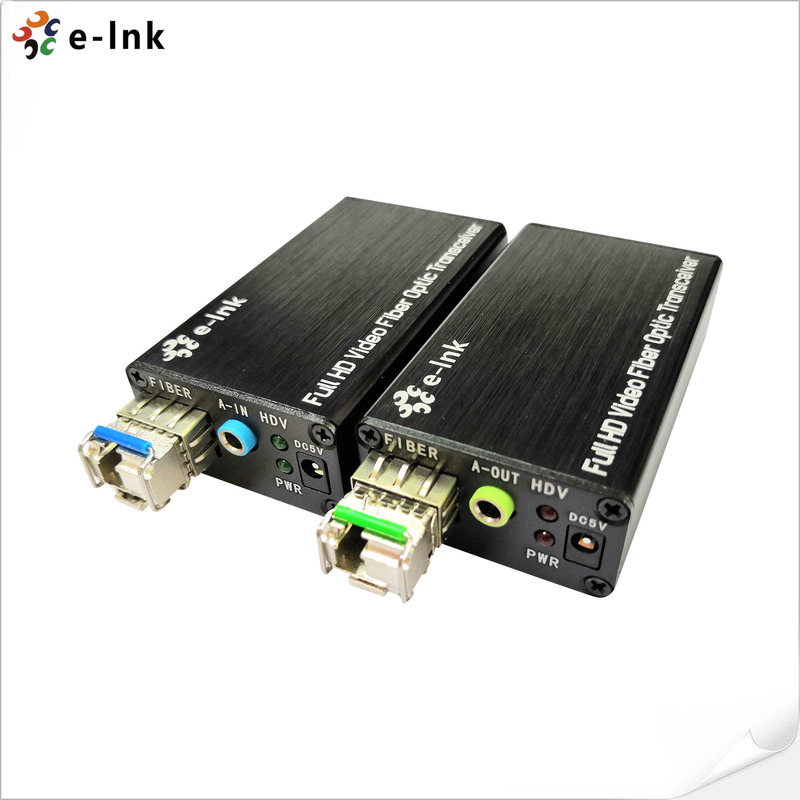

The LNK-MDF100 Series Mini-type DVI Fiber optic extender provides extension of DVI signals long distances over one fiber optic cable, it supports DVI 1.0 specifications,high resolution up to 1920*1200@60Hz. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Product&Application Image
Technical Indexes
| Parameter | Description | |
| Video | Standards | DVI1.0 3D; HDCP1.4 |
| Maximum pixel clock | 165MHz | |
| Maximum data rate | 6.75Gbps | |
| Compliant |
1080P@50/59.95/60Hz,( Max 1920*1200@60Hz) DTV resolutions: 480i, 576i, 480p, 576p, 720p, 1080i,1080p PC resolutions: VGA, SVGA, XGA, SXGA up to UXGA Special support 1600*1200 @60HZ |
|
| Connector | Female DVI-D | |
| Impedance | 100Ω | |
| HDMI Cable Range | <5Meter (Resolution up to 1920*1200@60Hz) | |
| Audio | Interface | 3.5MM external stereo audio |
| Optical fiber | Interface | SFP model – LC connector |
| Fiber type | Single-mode; Multi-mode | |
| Wavelength | 850nm/1310nm | |
| Interface bandwidth | 3Gbps | |
| Transmission distance |
Transmission@1920*1200@60Hz Multi-mode fiber: <500M Single-mode fiber: 20km |
|
| Other | Power supply | The power adapter: DC 5V |
| Power dissipation | MAX 1.2W | |
| Temperature | Operating: -20℃ ~ +70℃ | |
| Humidity | Operating: 5% ~ 90% | |
| Dimension (LxWxH) | 80 x 40 x 20 (mm) | |
Ordering Information
| Model | Description |
| LNK-MDF100 | DVI Fiber Optic Extender with external stereo audio:1920*1200P@60Hz, Compliance with DVI 1.0 & HDCP1.2 standard, LC(SFP), Multimode fiber, 300m, including 1 transmitter & 1 receiver, used by pairs |
| LNK-MDF100S | DVI Fiber Optic Extender with external stereo audio:1920*1200P@60Hz, Compliance with DVI 1.0 & HDCP1.2 standard, LC(SFP), single mode, single fiber, 20km, including 1 transmitter & 1 receiver, used by pairs |
