Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO
Model Number: LNK-IMC1100 Series
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: US$45-55/pc
Packaging Details: Fiber Media Converter Standard Package
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union, MoneyGram,PayPal
Supply Ability: 10000pcs/Month
Packet Buffer Memory: |
128K Bits |
Max Packet Length: |
1522 Bytes |
Processing Type: |
Store-and-Forward |
Connector: |
1x RJ45 |
Optical Port: |
1 X SC 100Base-FX |
MTBF: |
> 200,000 Hrs |
Packet Buffer Memory: |
128K Bits |
Max Packet Length: |
1522 Bytes |
Processing Type: |
Store-and-Forward |
Connector: |
1x RJ45 |
Optical Port: |
1 X SC 100Base-FX |
MTBF: |
> 200,000 Hrs |

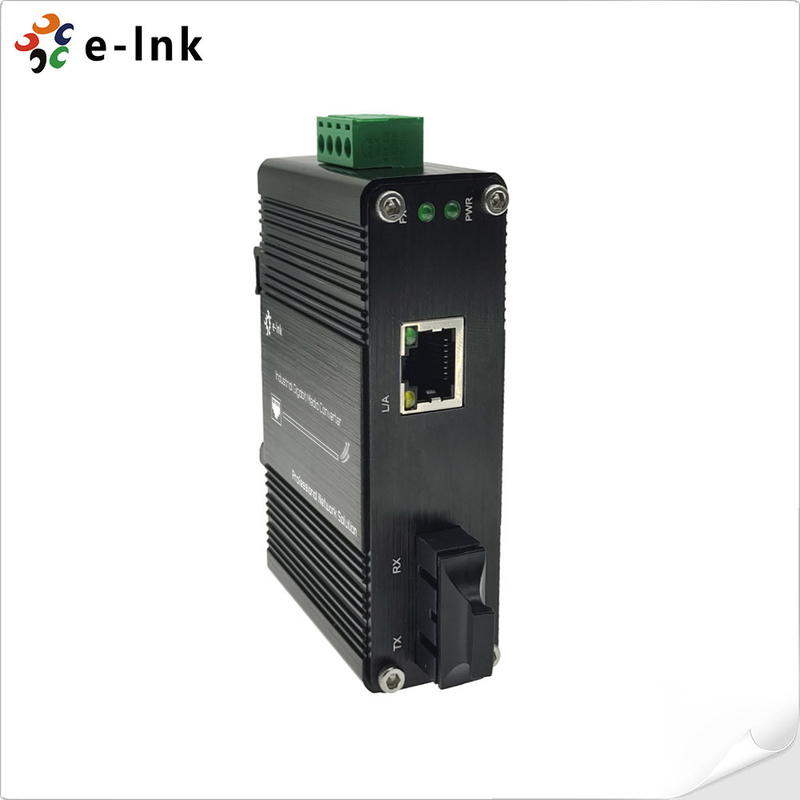

Fiber Media Converter Mini Industrial Grade DIN Rail 10/100M Media Converter
Fiber Media Converter Advantages
Specifications
Interface | |
|---|---|
Connector: | 1x RJ45 |
Optical Port: | 1 x SC 100Base-FX |
Electrical and Mechanical | |
Input Power: | 12~48VDC, 2-pin terminal block |
Power Consumption: | 3W Max. |
LED Indicators: | |
PWR: | Power Status |
L/A: | Data LINK Status |
SPD: | Ethernet Status |
100M/1000M: | Fiber LINK Status |
Dimensions (WxDxH): | 95 x 70 x 30 mm |
Weight: | 0.25Kg |
Casing: | Aluminum Case |
Mounting Options: | DIN-Rail / Wall-mount |
Environmental | |
Operating Temperature: | -40°C to 75°C (-40°F to 167°F) |
Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
Relative Humidity: | 5% to 95% non-condensing |
MTBF | > 200,000 hrs |
Order Information
| Model | Description |
| LNK-IMC1100 | Mini 10/100Base-TX to 100Base-FX Industrial Media Converter, Multi-mode, 2km, 1310nm, SC |
| LNK-IMC1100-20 | Mini 10/100Base-TX to 100Base-FX Industrial Media Converter, Single-mode, 20km, 1310nm, SC |
| LNK-IMC1100S-20 | Mini 10/100Base-TX to 100Base-FX Industrial Media Converter, Single-mode, Single Fiber, 20km, 1310/1550nm, SC |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
