Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO
Model Number: LNK-IMC3012-SFP Series
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: US$55-65/pc
Packaging Details: Fiber Media Converter Standard Package
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union, MoneyGram,PayPal
Supply Ability: 10000pcs/Month
Standards: |
IEEE 802.3az Energy Efficient Ethernet (EEE) |
Processing Type: |
Store-and-Forward |
Interface: |
1x RJ45 + 1 X SFP |
Fiber Port: |
1000Base-X Or 100Base-FX (auto Detection) |
Power Input: |
12~48VDC, 2-pin Terminal Block |
Size: |
95 X 70 X 30 Mm |
Standards: |
IEEE 802.3az Energy Efficient Ethernet (EEE) |
Processing Type: |
Store-and-Forward |
Interface: |
1x RJ45 + 1 X SFP |
Fiber Port: |
1000Base-X Or 100Base-FX (auto Detection) |
Power Input: |
12~48VDC, 2-pin Terminal Block |
Size: |
95 X 70 X 30 Mm |

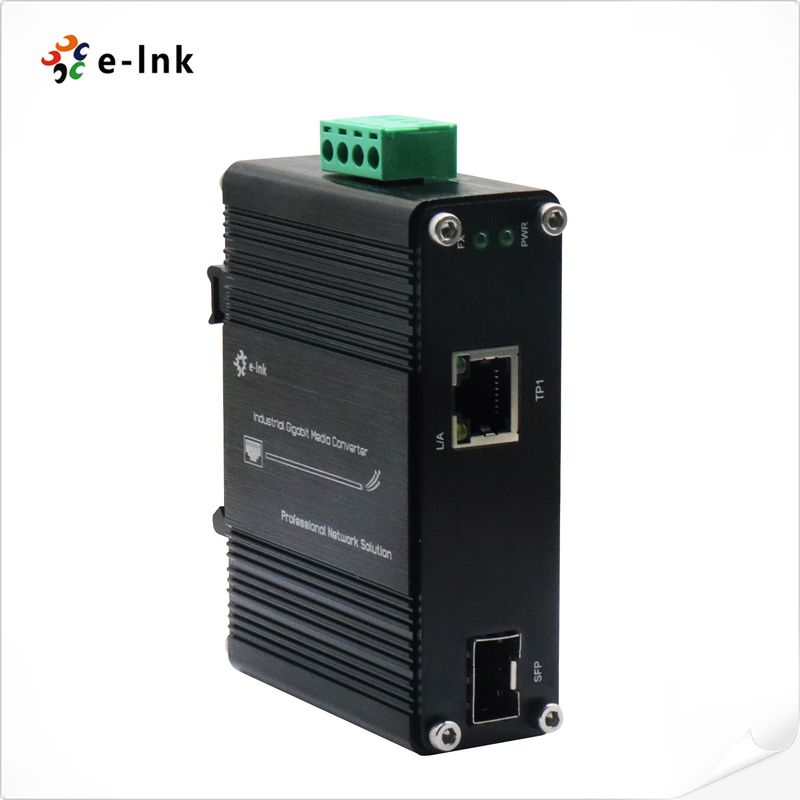

Fiber Media Converter Industrial Mini Gigabit Ethernet 100/1000Base-X SFP Port
Fiber Media Converter Advantages
Specifications
|
Interface |
|
|---|---|
|
Connector: |
1x RJ45 |
|
Optical Port: |
1 x SFP 1000Base-X or 100Base-FX (auto detection) |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC, 2-pin terminal block |
|
Power Consumption: |
3W Max. |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.25Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 75°C (-40°F to 167°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
Order Information
| Model | Description |
| LNK-IMC3012-SFP | Hardened 10/1001000BASE-TX to 100/1000BASE-X SFP Ethernet Media Converter |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
