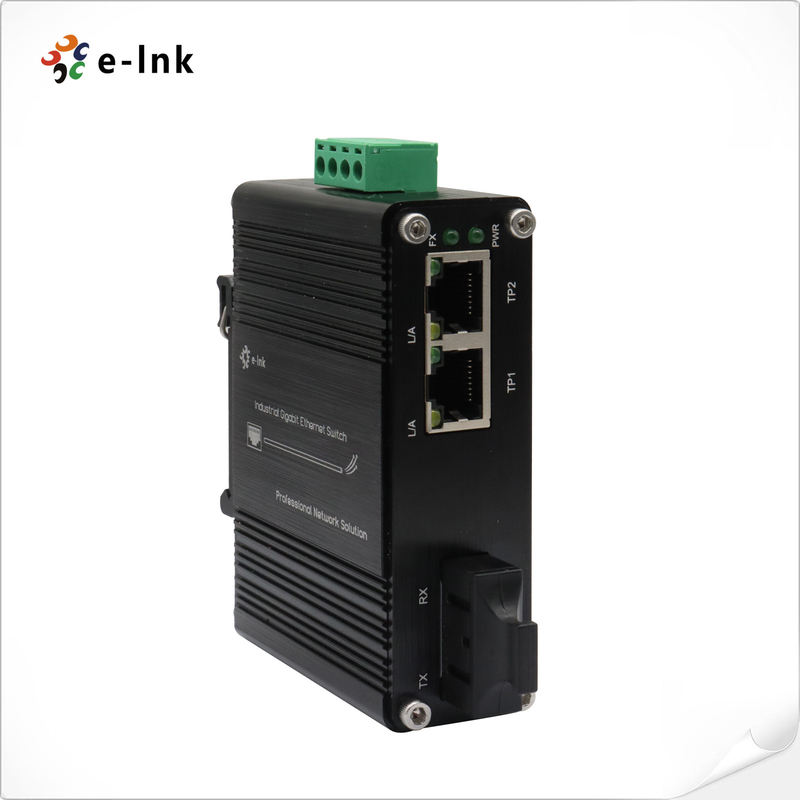

12V-48V DC Input Single Industrial Fiber Media Converter SC RJ45 10M/100M

Name: 12V-48V DC Input Single Industrial Fiber Media Converter SC RJ45 10M/100M
Brand: E-link China Technology Co.,LTD
SKU: LNK-IMC1200 Series
Price: 154.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO

Model Number: LNK-IMC1200 Series

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: $39-270

Packaging Details: Fiber Media Converter Standard Package

Delivery Time: 5-10 working days

Payment Terms: T/T, Western Union, MoneyGram,PayPal

Supply Ability: 10000pcs/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                          DC Fiber Media Converter, 48V Fiber Media Converter, RJ45 fiber converter box


Standards:	IEEE802.3x Full Duplex And Flow Control	Forward Filter Rate:	14,880pps (10Mbps) 148,800pps (100Mbps)rd
Packet Buffer Memory:	128K Bits

Standards:	IEEE802.3x Full Duplex And Flow Control
Forward Filter Rate:	14,880pps (10Mbps) 148,800pps (100Mbps)rd
Packet Buffer Memory:	128K Bits

Description

12V-48V DC Input Single Industrial Fiber Media Converter SC RJ45 10M/100M

Fiber Media Converter Mini Industrial 1xSC + 2xRJ45 10/100M 12~48VDC Input

Fiber Media Converter Advantages

2-Port 10/100BASE-T RJ45 with auto MDI/MDI-X function
1-Port 100Base-FX SC
Supports Full/Half-duplex, Auto-negotiation
IEEE 802.3az Energy Efficient Ethernet (EEE)
12~48VDC Terminal Block Power Input
Supports DIN-Rail & Wall-mount installation
Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature

Specifications

Interface
Connector:	2 x RJ45
Optical Port:	1 x SC 100Base-FX
Electrical and Mechanical
Input Power:	12~48VDC, 2-pin terminal block
Power Consumption:	5W Max.
LED Indicators:
PWR:	Power Status
L/A:	Data LINK Status
SPD:	Ethernet Status
100M/1000M:	Fiber LINK Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Environmental
Operating Temperature:	-40°C to 75°C (-40°F to 167°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)

Overview

The LNK-IMC1200 Series provides media conversion between 2-Port 10/100BASE-T and 1-Port 100BASE-FX Fiber. It’s a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions, easy to mount on a DIN rail or in distribution boxes.

12V-48V DC Input Single Industrial Fiber Media Converter SC RJ45 10M/100M 0

Order Information

Model	Description
LNK-IMC1200	Mini Industrial Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T, SC Fiber Port, Multimode, 1310nm, 2km
LNK-IMC1200-20	Mini Industrial Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T, SC Fiber Port, Single Mode, 1310nm, 20km
LNK-IMC1200-S20	Mini Industrial Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T, SC Fiber Port, Single Mode, Single Fiber, 1310/1550nm, 20km
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
